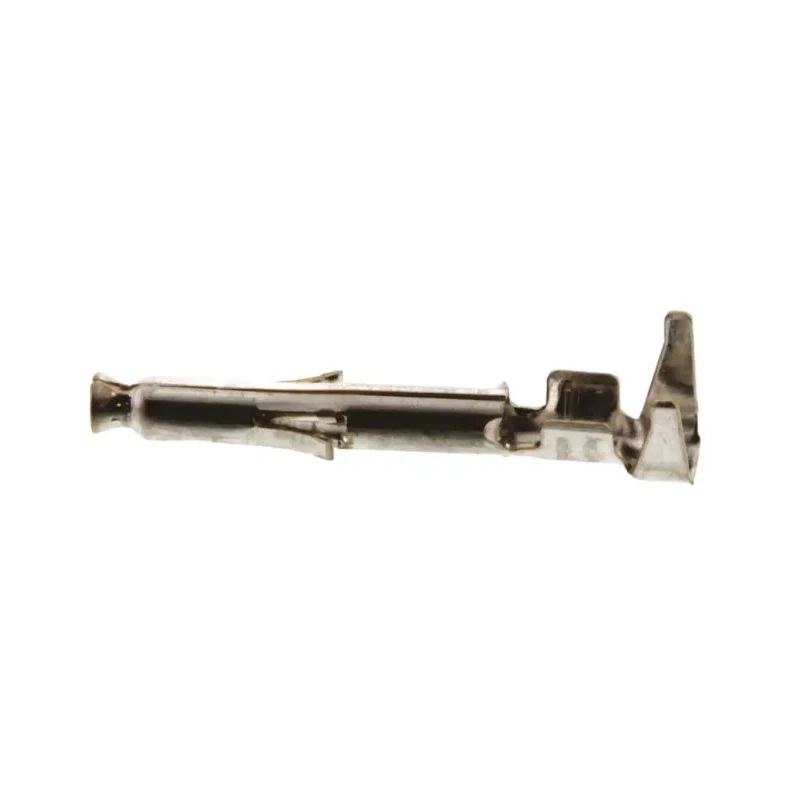

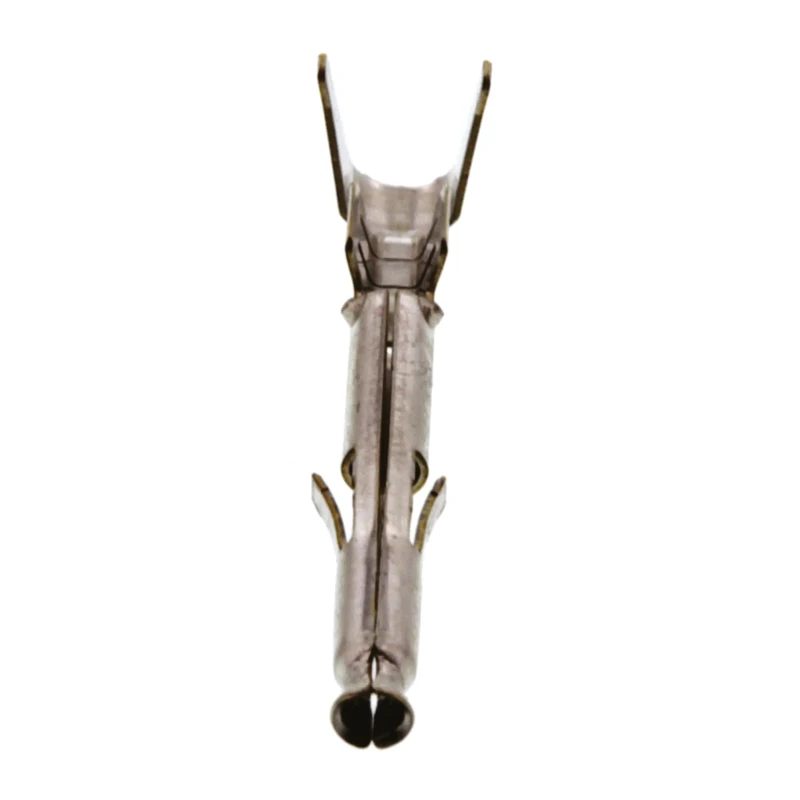

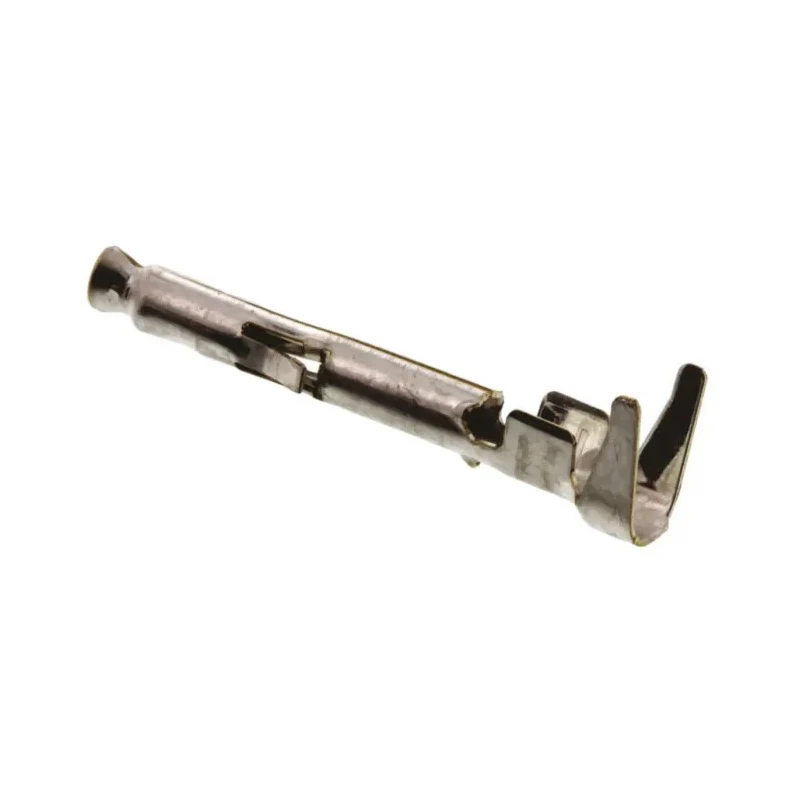

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current Brass Tin Plated 22-18 AWG 170366-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170366-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Designed for use with Mini-Universal MATE-N-LOK connector housings for wire-to-wire connections.
- Provides a 7 ampere current rating suitable for various electronics applications.
- Constructed of brass with a pre-tin plated finish for corrosion resistance.
- Operates reliably from -20°C up to 105°C for versatile environments.
- Termination type is crimp for secure wire connections.
- Maximum contact resistance of 10 milliohms ensures efficient conductivity.
- Suitable for consumer electronics, commercial, HVAC, power supplies, and portable devices.
- Meets UL and CSA approvals for safety compliance.
Product Description
TE Connectivity 170366-1 Mini-Universal MATE-N-LOK Series female crimp terminal is a precision-engineered electrical connector component designed for wire-to-wire connections in electronic and industrial applications. Featuring a brass construction with tin plating, this crimp terminal supports wire sizes from 22 AWG (0.3 mm²) up to 18 AWG (0.9 mm²) and carries a current rating of 7 amperes, making it adaptable for a wide range of power and signal transmission needs. Its crimp termination type offers reliable mechanical and electrical connections, ensuring minimal resistance and robust performance.
Operating temperature ranges from -20°C to 105°C, this terminal can withstand harsh environments encountered in consumer electronics, commercial HVAC systems, power supply units, portable devices, lighting systems, medical equipment, and security systems. The compact design of the Mini-Universal MATE-N-LOK contact allows easy integration into wire harnesses using compatible connector housing.
This product is compliant with UL E28476 and CSA LR7189 certifications, guaranteeing adherence to quality and safety standards.
Applications include assembly of electrical and electronic equipment in industrial manufacturing, laboratory instrumentation, automotive systems, and commercial products. The tin-plated brass contact ensures excellent corrosion resistance and long-lasting electrical performance. This terminal is supplied individually, packaged safely for storage and use.
Designed for use with Mini-Universal MATE-N-LOK connector housings for wire-to-wire connections. 7A current rating suitable for consumer electronics and industrial applications. Brass contact material with tin plating ensures durability and corrosion resistance.
Crimp termination type guarantees strong mechanical and electrical connection. Wide operating temperature range from -20°C to 105°C. Low maximum contact resistance of 10 milliohms for efficient conductivity. UL and CSA approved for compliance with safety standards.
Applicable for HVAC, power supplies, lighting, medical devices, and security systems. Explore more high-quality TE Connectivity Electrical Connectors and system components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7 amperes, making it suitable for various electronics applications.
It supports wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The terminal operates reliably within a temperature range of -20°C to 105°C.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
It features a crimp termination type for secure wire connections.
Yes, it meets UL E28476 and CSA LR7189 certifications for safety compliance.
The contact material is brass with a tin plating for corrosion resistance.
It is designed for use with Mini-Universal MATE-N-LOK connector housings.
It is suitable for consumer electronics, commercial HVAC, power supplies, and portable devices, among others.
The terminal is manufactured in India.
It is supplied individually, packaged safely for storage and use.
The tin plating provides corrosion resistance, ensuring long-lasting electrical performance.
