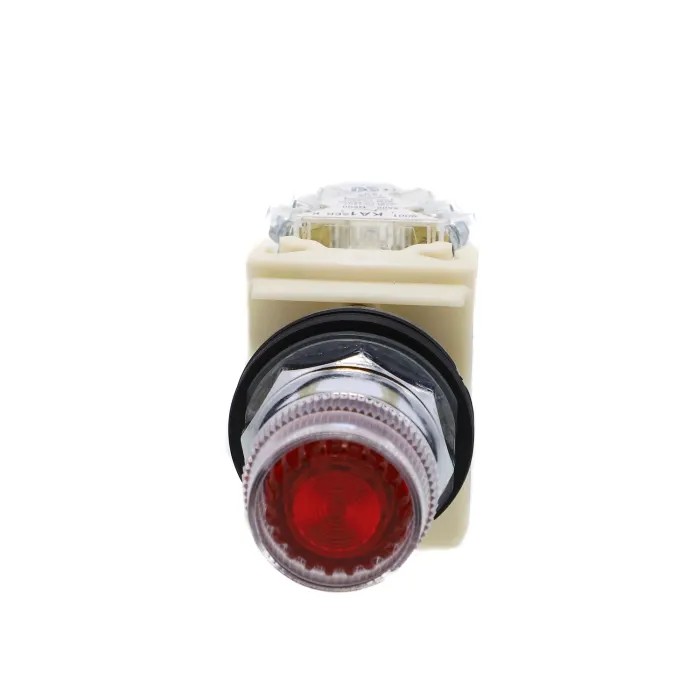

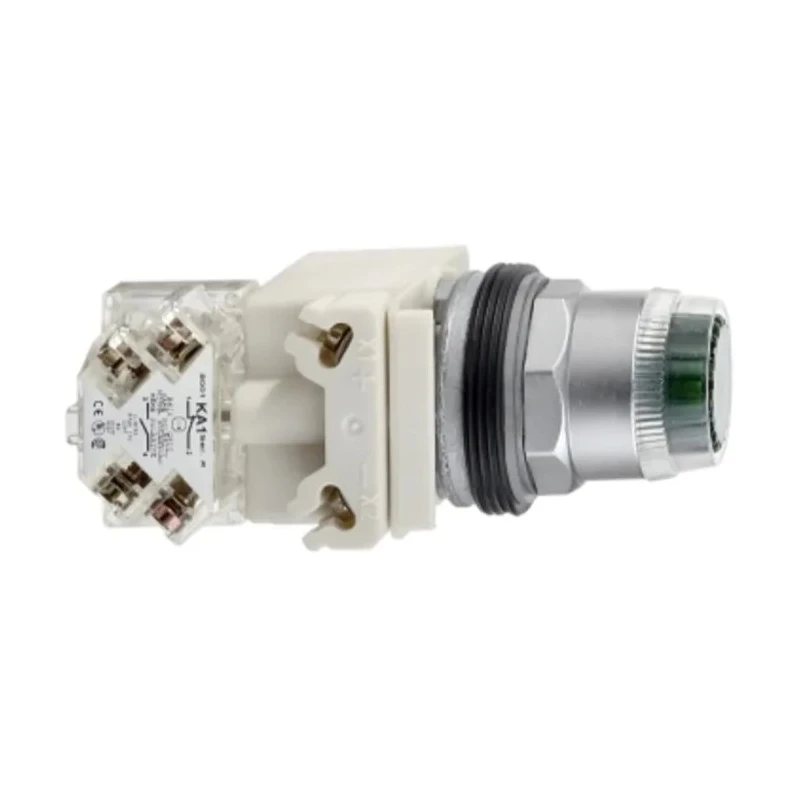

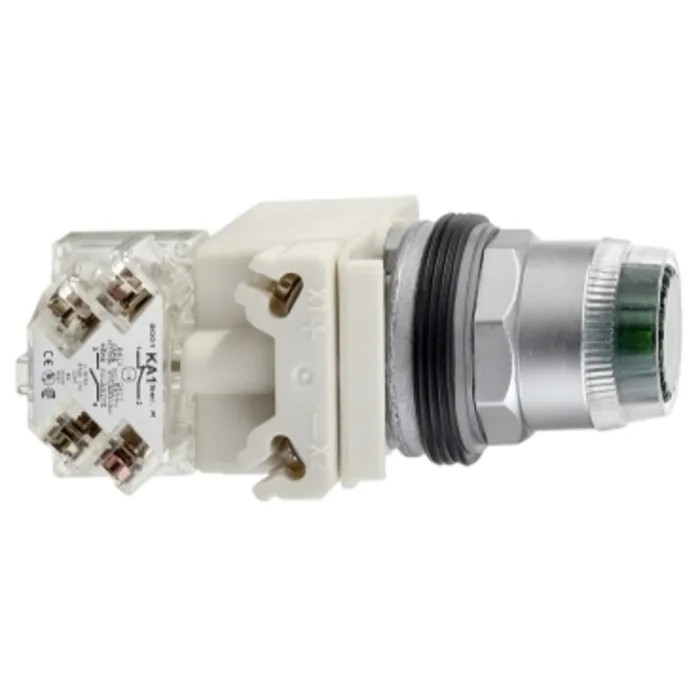

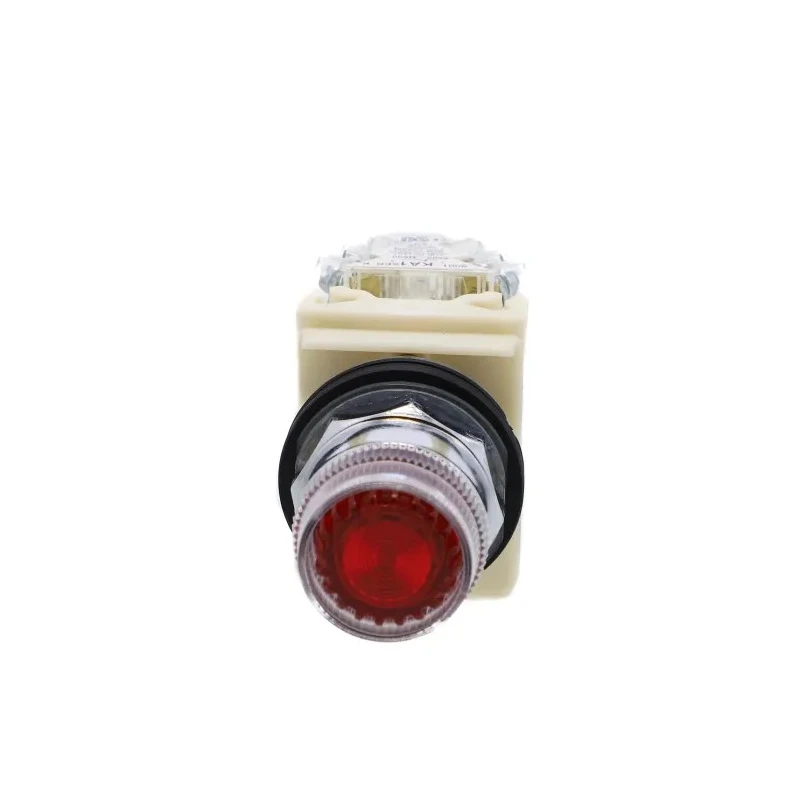

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm 9001K1L38LRRH13

Schneider Electric 9001K1L38LRRH13 Harmony 9001K Series illuminated push button switch is designed for robust industrial and electrical panel applications. It features a spring return operation type and an octagonal actuator style with a crisp red superbright LED for reliable indication. This panel-mounted switch suits a 30 mm cutout size and incorporates SPDT (1 CO) contact configuration providing versatile switching capabilities.

Its construction accords with IP66 standards, offering excellent protection against dust and water, ensuring resilient performance in demanding environments. With a contact rating capable of handling 600V AC and 125V DC voltages, and a maximum contact current of 550mA, this switch is engineered for safety and reliability. The device complies with key international standards, including IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, and JIS C 4520, marking it fit for global industrial deployment.

The operating temperature range from -25°C to 70°C allows the switch to perform indoors and in moderately demanding outdoor conditions. Its red illuminated actuator enhances operator feedback and ensures clear operational status visibility. The switch comes unmarked, providing flexibility for user labeling needs.

This push button switch is ideal for control panels, manufacturing lines, laboratory equipment, HVAC controls, water treatment systems, and other commercial and industrial automation settings where reliable push button controls are essential.

This push button switch is suited for industrial and electrical automation panel applications. Equipped with a superbright red LED for clear indication and enhanced visibility. The octagonal actuator style provides ergonomic and reliable operation with spring return function.

Designed with IP66 rating for protection against dust and water ingress in harsh environments. Supports contact voltages up to 600V AC and 125V DC with a contact current rating of 550mA. Panel mounting type with a standard 30 mm cutout size for compatibility.

Constructed to meet multiple international standards including IEC 60947 series and UL 508. Suitable for industrial, laboratory, manufacturing, and electrical automation use cases. Operates effectively in temperatures ranging from -25°C to 70°C.
