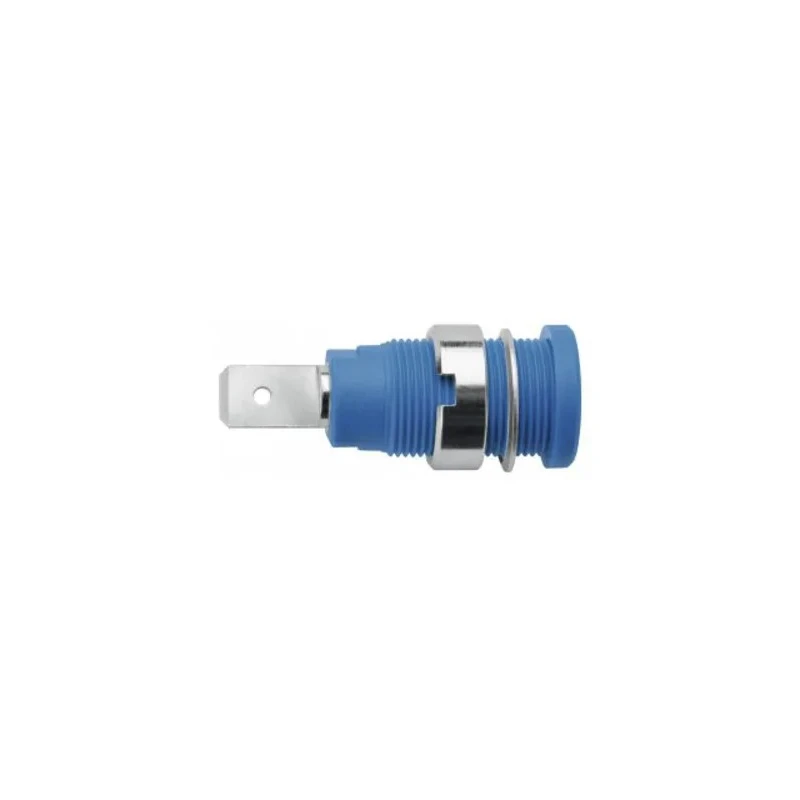

Schutzinger Blue Female Banana Socket, 4 mm Connector, 1000V, 24A, Nickel Plating SEB 7080 Ni / BL

Schutzinger SEB 7080 Ni / BL Blue Female Banana Socket is a premium Electrical Connector designed to ensure safe and reliable connections in industrial, laboratory, and test measurement applications. With a 4 mm connector size, this banana socket supports high voltage up to 1000V and a current rating of 24A. Its robust nickel plating enhances durability and corrosion resistance, ensuring consistent long-term performance.

This female banana socket offers all-metal and insulated fitting versions, providing shock-proof safety for use in demanding electrical environments. It is specifically engineered to adapt from older 4 mm sockets and is compatible with terminations for printed circuit boards, cable lugs, or push-on connections. The contact material is brass, chosen for excellent electrical conductivity, while the nylon insulation offers protection and electrical isolation.

The socket length is 34 mm, designed for fixture installation in panels up to 6 mm thick. It is secured by a slotted nut M12 x 0.75 and a spring washer, ensuring a firm and stable mount. The flat tab component can be bent up to 90 degrees one time, enabling precise adjustments during installation. Additionally, the punched part supports fixture mounting using specialized tools Mwz 8 and Mwz 15 for efficient assembly.

The product complies with UL standards and is manufactured in Germany, reflecting stringent quality control and reliability. It is a vital component in electronics testing, industrial safety equipment, and electrical connection setups where precision and safety are paramount.

All-metal and insulated fitting options provide shock-proof safety up to 1000 volts. Compatibility with older 4 mm sockets allows seamless upgrades. Multiple termination methods including PCB, cable lugs, and push-on connection.

Corrosion-resistant nickel plating enhances contact longevity. Secure mounting with slotted nut M12 x 0.75 and spring washer on panels up to 6 mm thick. Adjustable flat tab bend angle up to 90 degrees once for installation flexibility.

Fixture support via punched part compatible with special tools Mwz 8 and Mwz 15.

This banana socket is suitable for applications in industrial manufacturing, laboratory testing, educational instrumentation, and maintenance repair operations. Its high current and voltage ratings make it reliable for demanding electrical setups requiring safe and efficient connectivity.
