RS PRO Straight Panel Loudspeaker Connector 4 Way Female Black 20A Screw Termination 171-118

Free Delivery in India | Lowest Global Shipping Charges

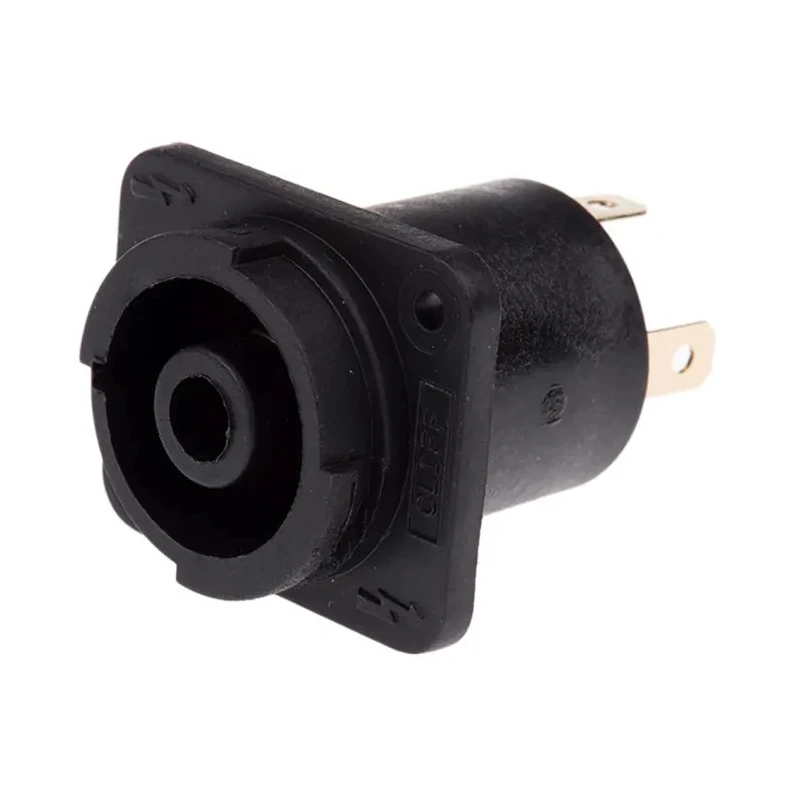

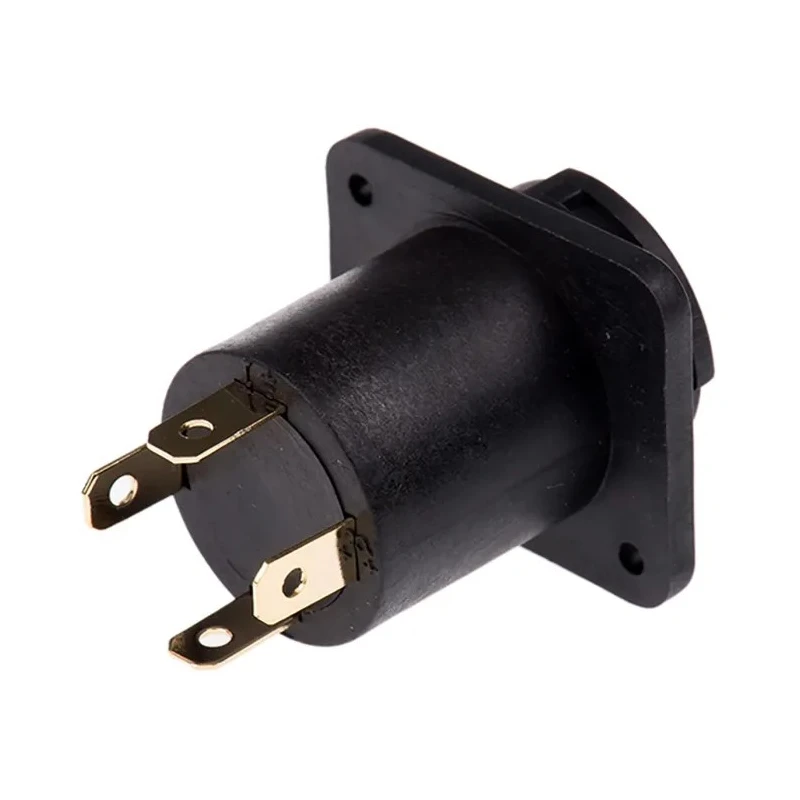

RS PRO Straight Panel Loudspeaker Connector 4 Way Female Black 20A Screw Termination 171-118

Name: RS PRO Straight Panel Loudspeaker Connector 4 Way Female Black 20A Screw Termination 171-118
Brand: RS PRO
SKU: 113843



Category Speaker Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	240V ac
Brand	RS PRO
Colour	Black
Orientation	Straight
Current	20A
Model	171-118
Mount Type	Panel
Termination Type	Screw
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female

Key Features

The connector features a straight orientation for panel mounting.
It provides gold plated contacts to ensure reliable conductivity and corrosion resistance.
The product is black in color and supports 240V AC voltage.
It supports cable diameters from 6mm to 15mm with a built-in cable clamp for secure wiring.
The connector is rated for operating temperatures from -20°C to 80°C.
Designed with Touchsafe features providing IEC65/IEC348 touch-proof contacts for user safety.
It includes a 4-pole chassis socket fitting a standard AXR/XLR cut-out.
Screw termination allows for easy locking and unlocking with secure mechanical connection.

Product Description

RS PRO 171-118 Straight Panel Loudspeaker Connector is a high-quality 4 Way Female connector designed for demanding audio and power applications requiring a reliable and safe locking system. The straight orientation panel mount connector supports up to 20A continuous current per contact and operates at 240V AC voltage.

The connector incorporates gold plated contacts to offer excellent electrical conductivity and durability. The black finish not only provides a professional look but also enhances durability in various industrial and commercial environments.

This Touchsafe connector complies with IEC65 and IEC348 standards, featuring touch-proof contacts that ensure user safety during operation. It is suited for applications in sound systems, battery chargers, motor control equipment, security monitoring, and amplifiers, facilitating robust interconnection of control and monitoring systems.

The connector supports wire diameters from 6mm to 15mm and includes a built-in cable clamp for secure installation. Operating temperature ranges from -20°C to 80°C, making it applicable in diverse environmental conditions.

The straight panel mount design allows easy integration into existing chassis or equipment panels. Screw termination ensures a dependable electrical connection with mechanical locking features. Four pole contacts provide flexibility for multi-channel or multi-conductor applications.

Gold plated contacts enhance reliability and reduce contact resistance. Touchsafe design meets important safety standards for industrial and laboratory environments.

This RS PRO connector offers dependable performance for professional audio systems, industrial controls, and electronic equipment requiring robust and secure electrical connectivity. It is a trusted choice for manufacturers and system integrators focused on quality and safety.

Explore the wide range of RS PRO connectors and accessories available in the Speaker Connector category at EnvMart to find complementary components for your technical and industrial applications.
