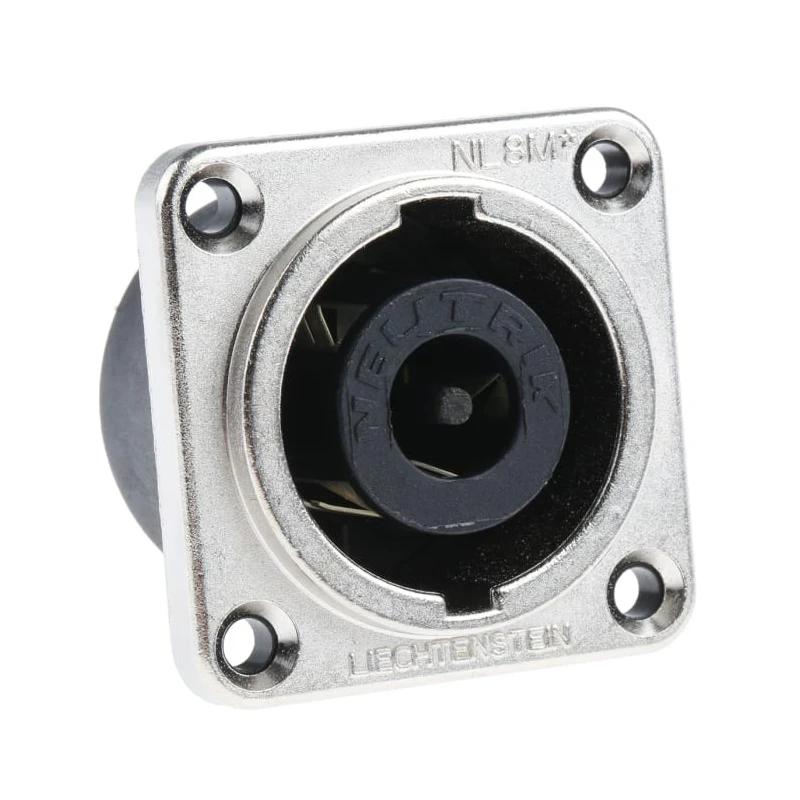

Neutrik Straight Panel Loudspeaker Connector 8 Way Male 250V 40A RSNL8MPRXX
Specifications
| Country of Origin | Liechtenstein |
|---|---|
| Voltage | 250V |
| Brand | Neutrik |
| Orientation | Straight |
| Current | 40A |
| Model | RSNL8MPRXX |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | SpeakON |
| Maximum Operating Temperature | 80°C |
| Standard Version | Up to 30 A rms |
| Minimum Operating Temperature | -30°C |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Connector Gender | Male |
| Ultra high current version | Up to 50 A audio current |
Key Features
- Features 8 contact points for secure connection of speaker cables.
- Supports a continuous current rating of 40 amperes.
- Constructed with bronze contacts plated in silver for excellent conductivity.
- Mounts easily in panels with D or G panel cut-outs and countersunk through holes for screws.
- Operates safely within temperature range from -30°C to 80°C.
- Designed with an airtight housing made from durable polyamide material.
- Incorporates an accurate twist-lock latching system ensuring secure and reliable contacts.
- Silver plated contacts provide resistance to corrosion for longevity.
Product Description
Neutrik RSNL8MPRXX Straight Panel Loudspeaker Connector is an 8 way male connector rated for 40A current and 250V voltage, designed specifically for professional loudspeaker and amplifier applications. Manufactured in Liechtenstein, this panel mount speaker connector offers robust mechanical and electrical performance with durable polyamide housing and bronze contacts plated with silver for enhanced signal integrity.
The connector features a straightforward straight orientation and is optimized for integration into speaker chassis with both D and G type panel cut-outs. Its design includes an airtight housing that protects internal components and ensures safe operation even under demanding temperature ranges from -30°C to +80°C. The twist-lock latching system provides a precise and secure connection, preventing accidental disconnection during use.
Neutrik’s speakON series has set a benchmark since 1987 for reliable and user-friendly speaker connections, and this RSNL8MPRXX model upholds that tradition with high current capacity up to 40 A rms (standard) and options up to 50 A audio current in ultra-high current versions.
Installation is facilitated by countersunk through holes allowing easy screw mounting and multiple wiring options. The connector is touch-proof, meeting IEC65/IEC348 safety standards, making it suitable for industrial, commercial audio setups, studio, auditorium, and concert sound systems.
8 contact points ensure versatile connection capabilities. Bronze and silver plating materials enhance conductivity and durability. Panel mount type with easy D or G panel cut-outs available. Robust polyamide housing protects against environmental factors.
Accurate and secure twist-lock mechanism for reliable mating. Suitable for professional loudspeaker and amplifier applications. Operating temperature range supports harsh environments. Manufactured in Liechtenstein ensuring high-quality standards.
This component is essential for secure speaker interconnections where safety, reliability, and performance matter. Explore more Neutrik Speaker Connectors to fit diverse audio installation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 40 amperes.
It operates at a voltage of 250V.
The connector features 8 contact points for secure connections.
It is constructed with bronze contacts plated in silver for enhanced conductivity, and features a durable polyamide housing.
The RSNL8MPRXX operates safely within a temperature range from -30°C to 80°C.
This model is a panel mount type, designed for easy installation in D or G panel cut-outs.
Yes, it incorporates an accurate twist-lock latching system to ensure secure and reliable contacts.
This connector is manufactured in Liechtenstein.
It is designed for professional loudspeaker and amplifier applications, suitable for industrial and commercial audio setups.
This connector is touch-proof and meets IEC65/IEC348 safety standards.
It features a straight orientation for easy integration into audio systems.
Yes, there are ultra-high current versions available that can handle up to 50 A audio current.
