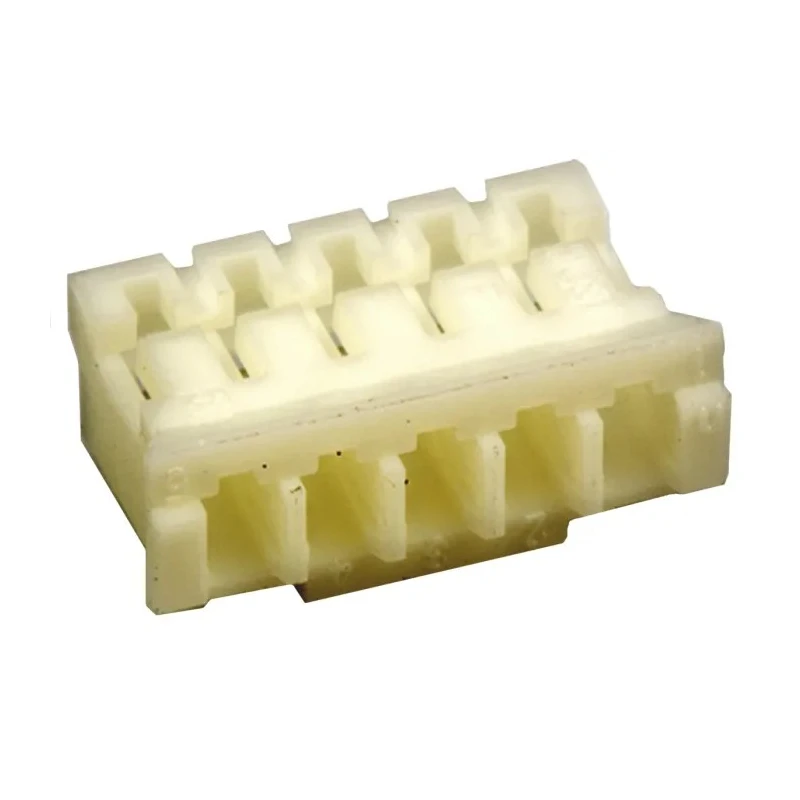

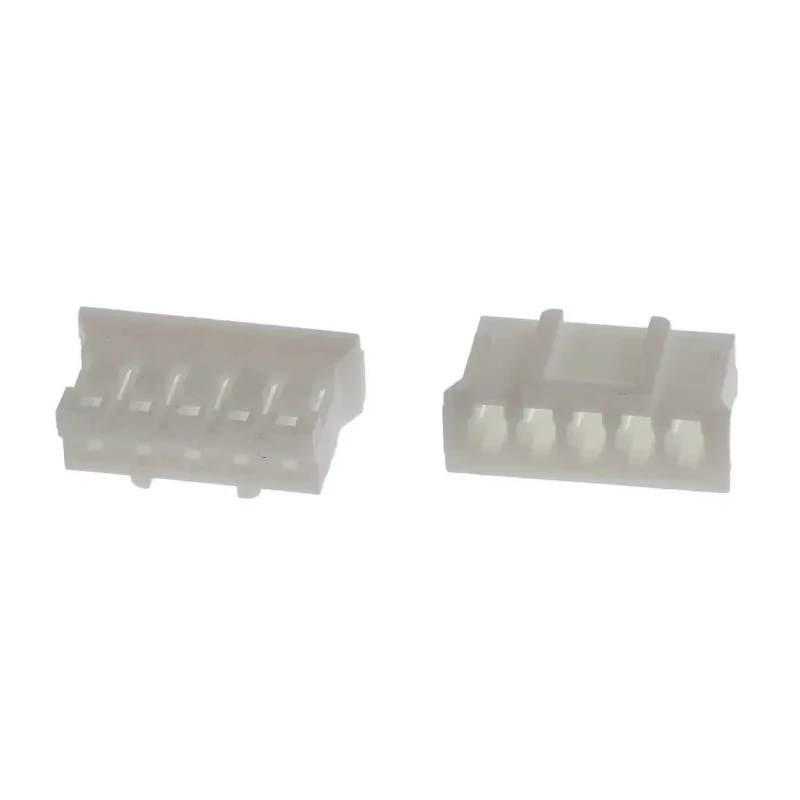

JST PHR Female Connector Housing 2 mm Pitch, 5 Way, Polyamide, Cable Mount, Straight Orientation PHR-5

Free Delivery in India | Lowest Global Shipping Charges

JST PHR Female Connector Housing 2 mm Pitch, 5 Way, Polyamide, Cable Mount, Straight Orientation PHR-5



Category PCB Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	8mm
Model	PHR-5
Width	4.5mm
Mount Type	Cable
Housing Material	Polyamide
Series	PHR
Number of Rows	1
Pitch	2mm
For Use With	PH Series Dis-Connectable Crimp Style Connector
Number of Contacts	5
Connector Gender	Female
Flammability Rating	UL 94V-0
JST, PHR Female Connector Housing, 2 mm Pitch, 5 Way, 1 Row StraightBrand	JST

Key Features

Features a 5-contact single row design for efficient cable mounting.
Made from durable polyamide for robust performance and insulation.
Straight orientation ensures secure mating with PH series crimp contacts.
Supports high-density connections in PCB and internal wire harnesses.
UL 94V-0 flammability rating for enhanced safety compliance.
Compatible with PH Series Dis-Connectable Crimp Style Connector systems.
Compact form factor, 8 mm long and 4.5 mm wide.

Product Description

The JST PHR-5 Female Connector Housing is designed to enable secure, high-density wire-to-board interconnections in electronic assemblies. Combining a 2 mm pitch with a 5-contact single row layout, this connector housing optimizes space and reliability for PCB applications.

Constructed from robust polyamide material, the housing offers excellent electrical insulation and mechanical durability, suiting a variety of industrial, manufacturing, and electronic system environments. Its straight cable mount orientation facilitates clean and stable mating to PH series crimp contacts, resulting in firm connection and minimized risk of misalignment.

The PH Series from JST is known for supporting demanding applications requiring high-density, reliable internal wire connections. Fully covered headers ensure proper engagement with corresponding connectors, and the natural white color aids assembly visibility.

With a compact 8 mm length and 4.5 mm width, the housing is suitable where board space and compact design are priorities. Certified with UL 94V-0 flammability rating, it meets stringent safety standards for electronics manufacturing and assembly.

Specially intended for use with JST PH Series Dis-Connectable Crimp Style Connector systems, this housing supports a variety of industrial, laboratory, commercial and electronics projects, including power supplies, instrumentation, control panels, and wiring harnesses.

Features a 5-contact single row design for efficient cable mounting. Made from durable polyamide for robust performance and insulation. Straight orientation ensures secure mating with PH series crimp contacts. Supports high-density connections in PCB and internal wire harnesses.

UL 94V-0 flammability rating for enhanced safety compliance. Compatible with PH Series Dis-Connectable Crimp Style Connector systems. Compact form factor, 8 mm long and 4.5 mm wide. Explore more PCB Connector Housing products and JST components in the Electronics & Electricals category on EnvMart.
