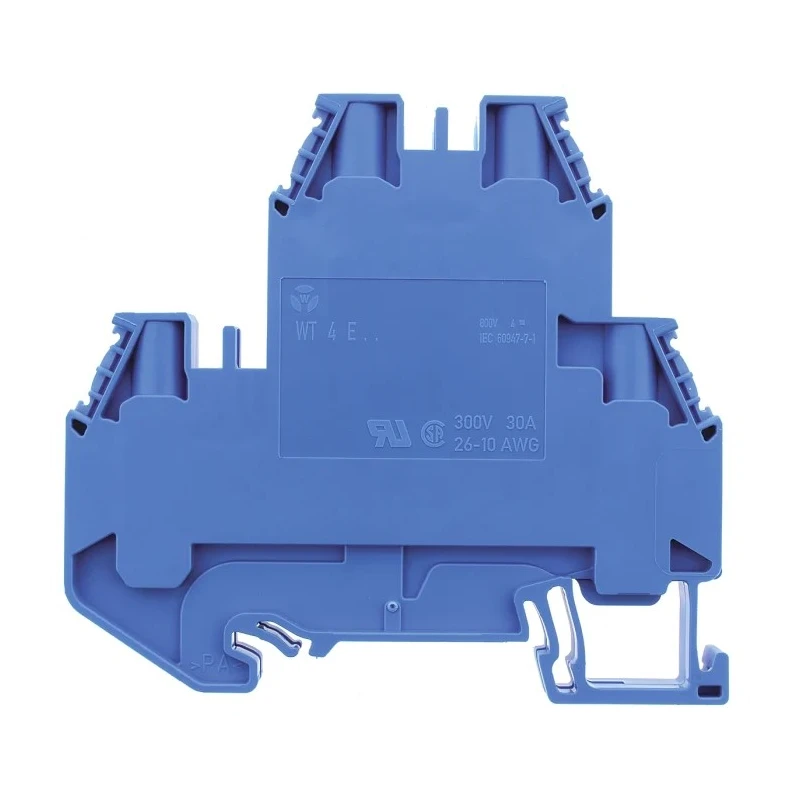

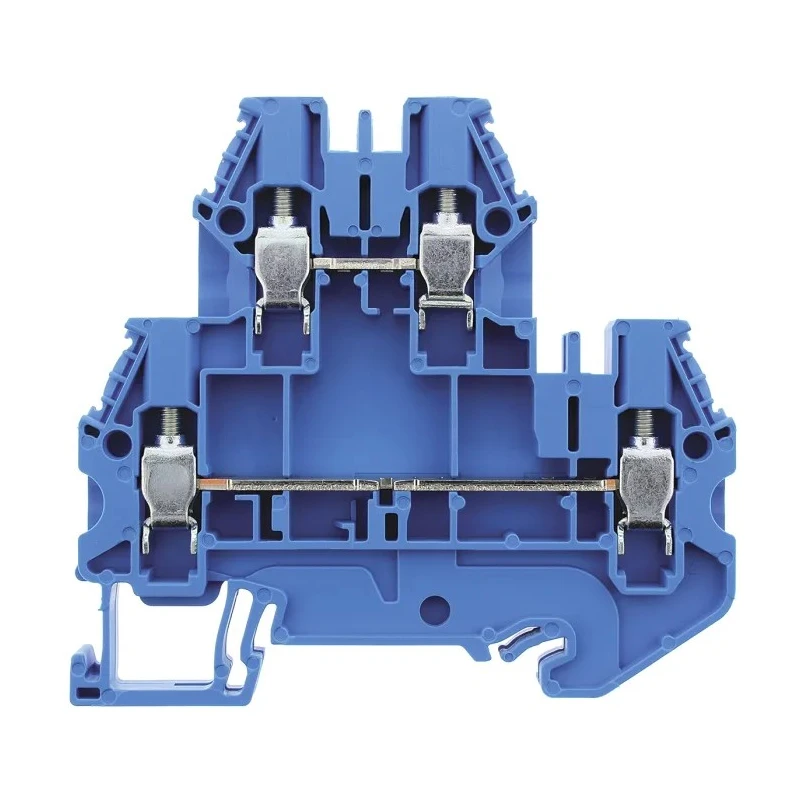

Wieland Multi Level Terminal Block Blue, 2-Level, 2 Positions, Screw Termination, 800V, 32A, WT 4 E Series 58.504.7055.6

Free Delivery in India | Lowest Global Shipping Charges

Wieland Multi Level Terminal Block Blue, 2-Level, 2 Positions, Screw Termination, 800V, 32A, WT 4 E Series 58.504.7055.6

Name: Wieland Multi Level Terminal Block Blue, 2-Level, 2 Positions, Screw Termination, 800V, 32A, WT 4 E Series 58.504.7055.6
Brand: Wieland
SKU: 420056
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	800V
Brand	Wieland
Colour	Blue
Series	WT 4 E
Termination Type	Screw
Number of Levels	2
Number of Positions	2
Minimum Operating Temperature	120°C
Pitch	6mm
Hazardous Area Certification	ATEX
Standards/Approvals	VDE, GL, CSA
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	10AWG
Cable CSA	10, 26AWG
Terminal Block Current	32A
Connection capacity	2 wires, equal size 0.14 - 2.5 mm²

Key Features

Compact two-level terminal block designed for efficient DIN rail mounting.
Supports wire sizes from 26 AWG to 10 AWG with a nominal cross-section of 4 mm².
Rated for a voltage of 800V and maximum current of 32A.
Blue color coding facilitates easy identification and installation.
Operates reliably within a temperature range up to 120°C.
Certified for hazardous area use with ATEX compliance and holds VDE, GL, and CSA approvals.
Connection capacity supports two wires of equal size from 0.14 to 2.5 mm².
6 mm pitch spacing optimizes panel wiring density.

Product Description

Wieland 58.504.7055.6 WT 4 E Series Multi Level Terminal Block is designed for electrical and industrial applications requiring multi-tier screw connections. This 2-level terminal block, coloured blue, is engineered for mounting on standard TS35 DIN rails, enabling compact and reliable wiring solutions.

It supports wire sizes ranging from 26 AWG (minimum) to 10 AWG (maximum) with an effective nominal cross-section area of 4 mm². The terminal block operates at voltages up to 800V and can safely carry currents up to 32A, making it suitable for power distribution and control panel wiring in industrial and commercial settings.

The product's screw termination type ensures a secure connection suitable for various operational stresses. Operating temperature is rated up to 120°C, allowing use in environments with elevated temperatures.

Wieland’s WT 4 E Series terminal blocks are certified for hazardous areas with ATEX approval and comply with VDE, GL, and CSA standards, ensuring safety and compliance in demanding industrial and hazardous environments.

Its connection capacity allows two wires of equal size between 0.14 to 2.5 mm² per position, facilitating versatile wiring configurations with a pitch of 6 mm to maximize space efficiency.

Compact two-level design for efficient DIN rail installation. Screw termination for reliable electrical connections. Supports wire sizes 26 AWG to 10 AWG. Voltage rating: 800V; Current rating: 32A. Compliant with ATEX, VDE, GL, and CSA standards.

Operation temperature up to 120°C. Connection capacity of 2 wires, 0.14 - 2.5 mm². Blue color coding for easy identification.

The terminal block is manufactured in Germany, ensuring high standards of build quality and performance. It is ideal for use in industrial automation, electrical distribution systems, and control panels where safe, reliable, and space-saving wire connections are necessary.
