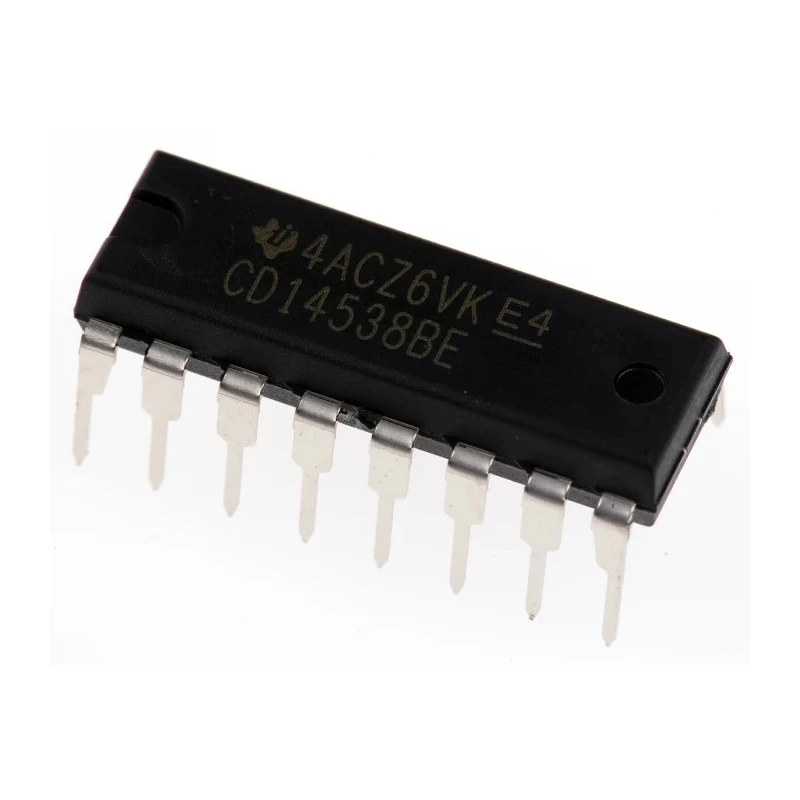

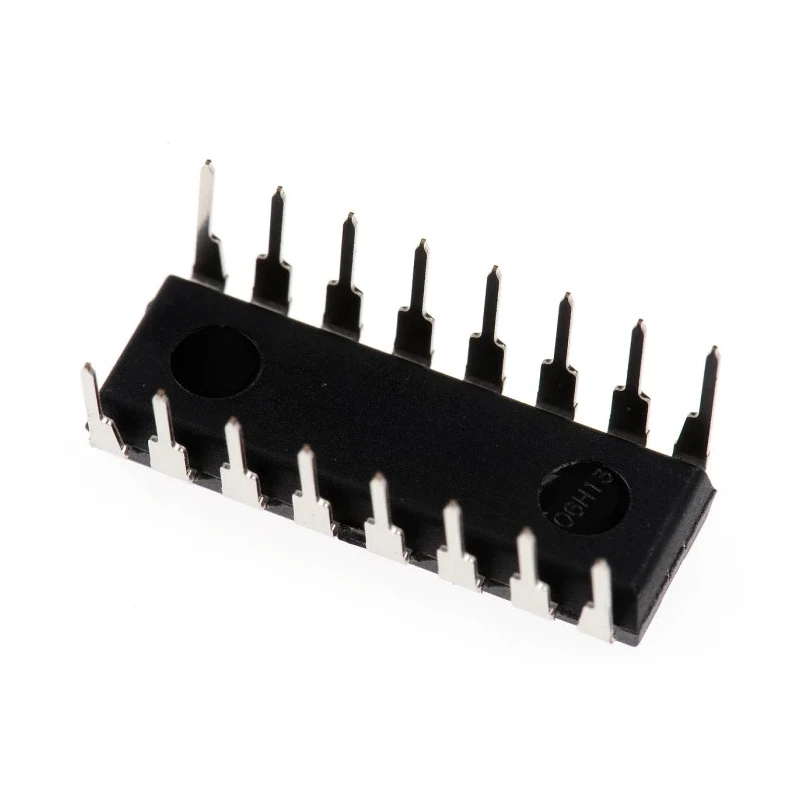

Texas Instruments 2 Element 4000 Series Monostable Multivibrator, 16-Pin PDIP CD14538BE

Texas Instruments CD14538BE is a 2-element monostable multivibrator from the 4000 Series CMOS logic family housed in a 16-pin PDIP package. It operates over a wide voltage range from 3 to 18 volts and features a minimum pulse width of 30 nanoseconds, making it suitable for precise timing circuits.

The device supports a maximum high and low level output current of ±6.8 mA, with a maximum quiescent current of 100 microamps, ensuring power-efficient performance. Its maximum propagation delay time is 600 nanoseconds under a specified load capacitance, enabling fast response times.

This monostable multivibrator functions reliably in operating temperature ranges from -55°C up to 125°C, catering to a variety of industrial and laboratory applications requiring durability under harsh environments.

The package is a 16-pin dual in-line package (PDIP) designed for through-hole mounting, facilitating easy integration into printed circuit boards.

This device belongs to the well-known CD14538B series, commonly used in electronic timing, pulse generation, and waveform shaping applications within industrial controls, instrumentation, and signal processing sectors.

The device offers stable operation over a wide voltage range. It provides high precision timing with minimum 30 ns pulse width. Suitable for through-hole mounting in PDIP package. Wide operating temperature range from -55°C to 125°C ensures reliable performance.

Ideal for use in industrial and electronic equipment requiring monostable multivibrator functionality.

For designers and engineers, the CD14538BE offers a robust solution compatible with 4000 series logic environments, supporting reliable pulse timing operations. Explore more components from Texas Instruments and related Logic ICs here on EnvMart.
