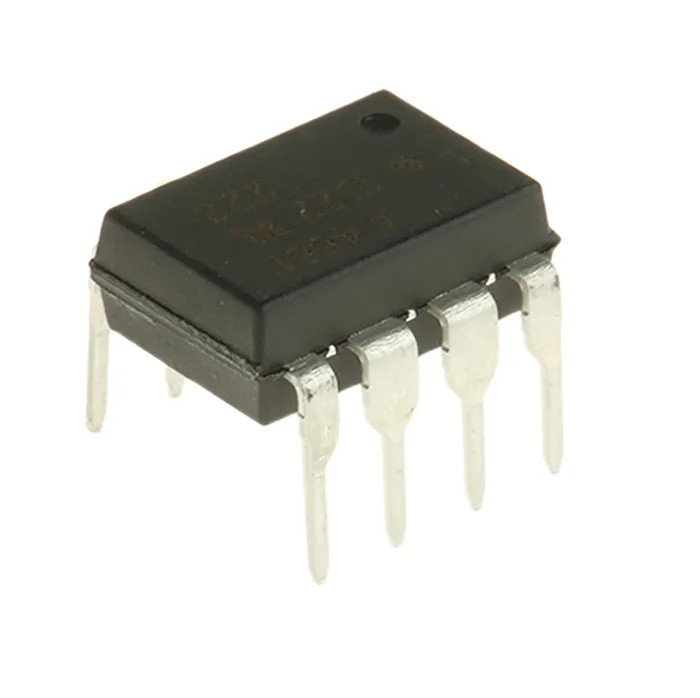

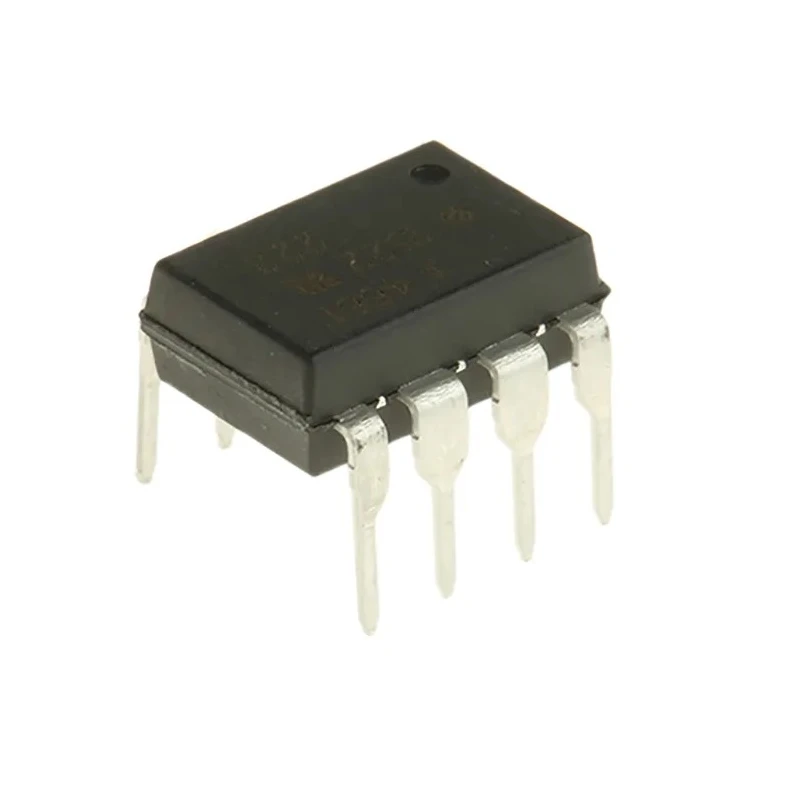

Broadcom DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP HCPL-4661-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP HCPL-4661-000E

Name: Broadcom DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP HCPL-4661-000E
Brand: Broadcom
SKU: 137977



Category Optocouplers Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HCPL-4661-000E
Packaging	Tube
Mount Type	Through Hole
Output type	Transistor
Series	HCPL
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Number Of Channels	2
Standards/Approvals	UL, CSA
Maximum Forward Voltage	1.75V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	24ns
Typical Fall Time	10ns
Automotive Standard	AEC-Q100

Key Features

Mounted using through-hole technology for secure PCB attachment.
Features a transistor output type for signal amplification.
Supports a maximum forward voltage of 1.75 volts.
Includes 2 channels to provide dual input isolation.
8-pin DIP package allows easy integration into electronic circuits.
Designed for DC input current type operations.
Typical rise time of 24 nanoseconds and fall time of 10 nanoseconds ensures fast response.
Maximum input current rating of 20 milliamperes for reliable performance.

Product Description

Broadcom HCPL-4661-000E is a robust DC input optocoupler featuring 2 channels and housed in a durable 8-pin DIP through-hole package. It is engineered for effective electrical isolation between circuits in industrial and automotive electronic applications, ensuring signal integrity and protection.

This optocoupler utilizes transistor output technology to deliver reliable logic signal outputs. It supports a maximum forward voltage of 1.75V and accommodates a maximum input current of 20mA, suitable for various low-power control circuits.

The device operates efficiently over a wide ambient temperature range from -40°C up to 85°C, making it ideal for demanding environments. Fast switching is achieved with typical rise and fall times of 24ns and 10ns respectively, enhancing performance in high-speed digital circuits.

The isolation voltage of 3.75kVrms provides high safety standards, preventing high-voltage damage to sensitive components. Compliance with recognized certifications such as UL, CSA, and automotive standard AEC-Q100 ensures quality and reliability for professional and industrial use.

Mounted via through-hole technology in a DIP package, this optocoupler is compatible with common PCB assembly processes, simplifying design and manufacture. It is supplied in tube packaging, suited for production volume usage.

Through-hole mount for easy PCB integration. Transistor output type for enhanced signal control. Max forward voltage of 1.75V for efficient operation. Dual-channel configuration to support multiple signal isolations. Fast rise and fall times suitable for high-speed applications.

Wide operating temperature range for versatile deployment. Isolation voltage rated at 3.75kVrms for safety. Standards compliant including UL, CSA, and AEC-Q100 automotive standard. Packaged in tube for production readiness.

This product is ideal for use in industrial, automotive, manufacturing, and electronic development applications requiring reliable and safe electrical isolation. Explore further in the Electronics Components category at EnvMart for compatible devices and accessories.

Explore more products in our Optocouplers category.
