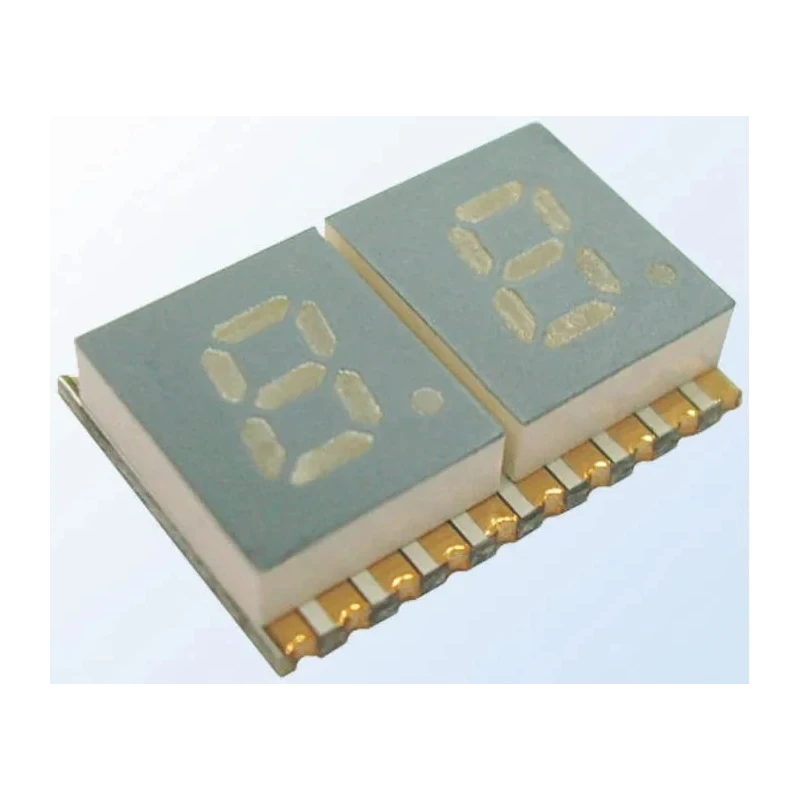

Kingbright 2 Character 7 Segment Red LED Display 14.2mm Character Height Cathode Surface Mount KCDC56-105

Kingbright KCDC56-105 is a high-quality dual-character 7 segment LED display designed for industrial and electronic applications requiring clear numeric indication. This display features red LEDs with a luminous intensity of 44 mcd and a dominant wavelength of 635 nm, providing excellent visual performance and high on/off contrast to ensure legibility even in low-light environments.

The display characters have a height of 14.2 mm and a width of 8 mm, with a grey face and white segments which enhance readability and aesthetic appeal. The decimal point is orientated on the right side, offering versatile numeric representation. Designed as a surface mount device with common cathode connection, the display can be easily integrated into printed circuit boards for compact and efficient assembly.

Its compact external dimensions of 25.1 mm width, 19 mm height, and 3.8 mm depth make it suitable for tight installation spaces. The product operates reliably within a broad temperature range of -40°C to 85°C, making it ideal for various industrial environments, including instrumentation, control panels, and consumer electronics.

The forward voltage of 2V and forward current of 30 mA ensure low power consumption, while a power dissipation of 75 mW supports long-term reliability. This model fully complies with RoHS standards, confirming its environmental safety and sustainability. The display is manufactured in China and is intended for new condition use in professional industrial, laboratory, and electronic equipment applications.

Excellent visibility with high on/off contrast for clear numeric display. Red LED colour with 44 mcd luminous intensity and 635 nm peak wavelength. Compact surface mount design ensuring ease of PCB mounting. Robust operating temperature range from -40°C to 85°C for industrial environments.

Common cathode configuration simplifies wiring and control schemes. Low power operation with 2V forward voltage and 30 mA forward current. RoHS compliant, environmentally friendly component suitable for modern electronics.

Compact external dimensions of 25.1 x 19 x 3.8 mm for space-saving integration.

This Kingbright 7 segment LED display is widely used in electronic display modules, instrumentation readouts, control systems, and HVAC panels. Its rugged construction and reliable performance make it ideal for industrial automation, laboratory instrumentation, manufacturing control, and general electronics display purposes.
