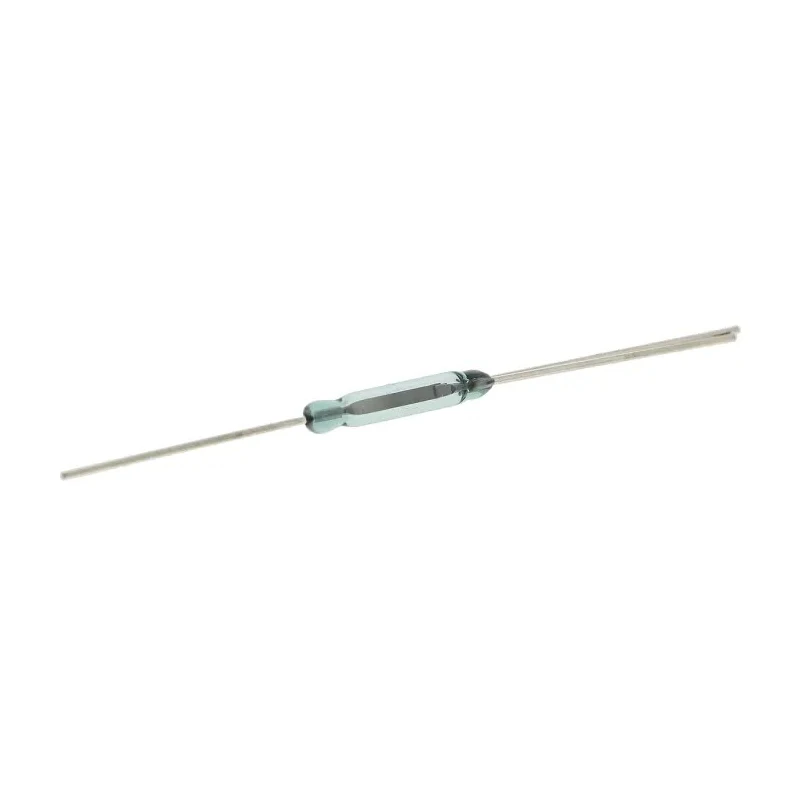

Cynergy3 SPCO PCB Reed Switch 250 mA 175 V AC/DC

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 SPCO PCB Reed Switch 250 mA 175 V AC/DC

Name: Cynergy3 SPCO PCB Reed Switch 250 mA 175 V AC/DC
Brand: Cynergy3
SKU: 159753
Price: 20.56 USD
Availability: InStock



Category Reed Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	United States
Brand	Cynergy3
Length	14.8mm
Model	Cynergy3
Width	2.7mm
Mount Type	PCB
Contact Material	Rhodium
Series	TRA
Maximum Switching Current	250mA
Maximum Operating Temperature	150°C
Contact Configuration	SPCO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Voltage	175V ac/dc
Maximum Release Time	1ms
Operating Time Including Bounce	0.7ms
AT Value Range	15 to 30 AT
Celduc 1 CO PCB Reed Switch 250 mA 100 V dcBrand	Celduc
Assemtech SPCO PCB Reed Switch 200 mA 30 V ac/dcBrand	Assemtech

Key Features

The SPCO contact configuration enables both normally closed and changeover functions.
Low 100mΩ contact resistance ensures reliable energy transfer.
Switch operates with a maximum switching power of 5 VA.

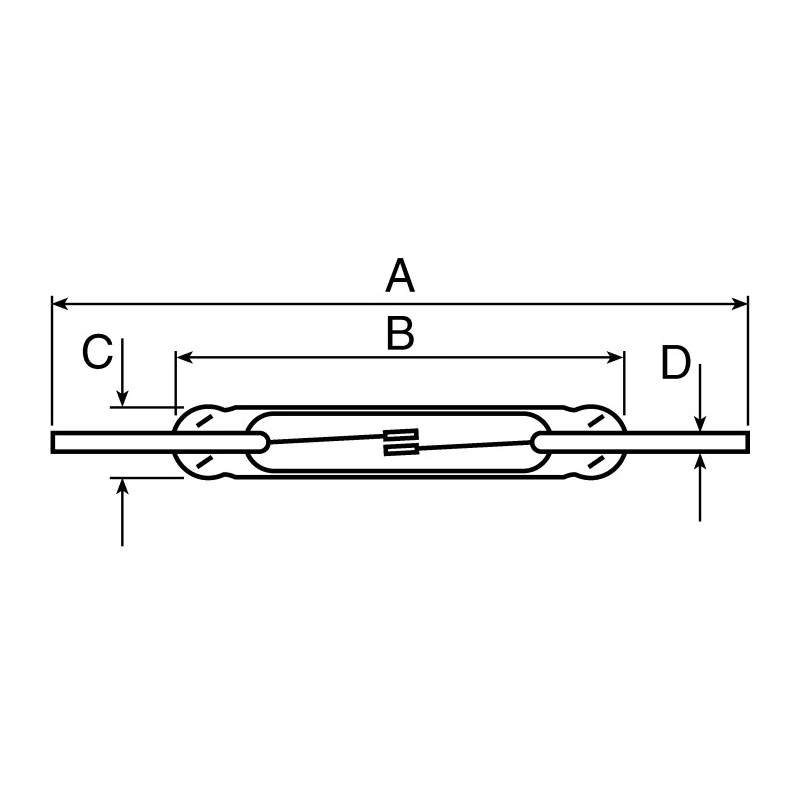

Compact size with 14.8mm length and 2.7mm width suits PCB mounting.
Rhodium contact material provides high conductivity and heavy load tolerance.
Fast switching with operating time including bounce of 0.7 ms and release time of 1 ms.
Wide operating temperature range from -40°C to 150°C for harsh industrial environments.
Wire terminal type and sealed glass tube construction enhance durability.

Product Description

Cynergy3 TRC200S/20-30 SPCO PCB Reed Switch is a precision component designed for effective switching in automotive, industrial processing, and laboratory applications. Rated for a maximum switching current of 250 mA and voltage up to 175 V AC/DC, this switch combines reliability and versatility with a SPCO (Single Pole Changeover) contact configuration.

This reed switch uses highly conductive rhodium contacts, providing low contact resistance of 100mΩ for efficient energy transfer and allowing it to handle heavy electrical loads with minimal degradation. Its compact dimensions, 14.8mm length and 2.7mm width, allow easy integration directly onto printed circuit boards using wire terminals.

With a fast operating time including bounce of 0.7 ms and maximum release time of 1 ms, the switch provides quick and accurate signal changeover. The sealed glass tube encapsulation ensures environmental protection and longevity across a broad temperature range from -40°C to 150°C, suitable for even harsh industrial environments.

The AT value range of 15 to 30 AT adds further flexibility in magnetic field sensitivity for activating the device. The reed switch is an essential component for medium-voltage sensor activation, proximity sensing, and level detection systems requiring reliable switching performance.

SPCO contact configuration supports normally closed and changeover switching functions. Rhodium contacts deliver excellent conductivity and durability under load. Low contact resistance ensures energy efficiency and reliable switching.

Compact design enables space-saving PCB-mounted applications. Fast switching and release times optimize responsiveness. Wide temperature tolerances allow industrial and automotive usage. Sealed glass tube protects internal contacts from contamination.

Wire terminals facilitate secure mounting and connection.

This Cynergy3 Reed Switch is manufactured in the United States and comes new, meeting the demands of industrial, laboratory, automotive, and manufacturing sectors. Choose this component for robust, precise switching in your PCB sensor or control circuit designs.
