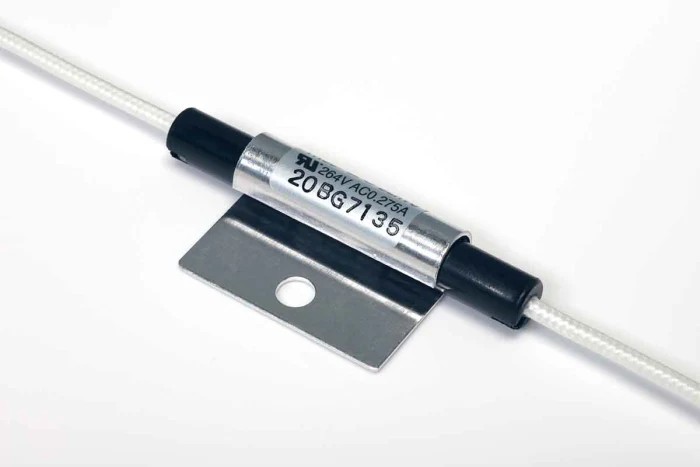

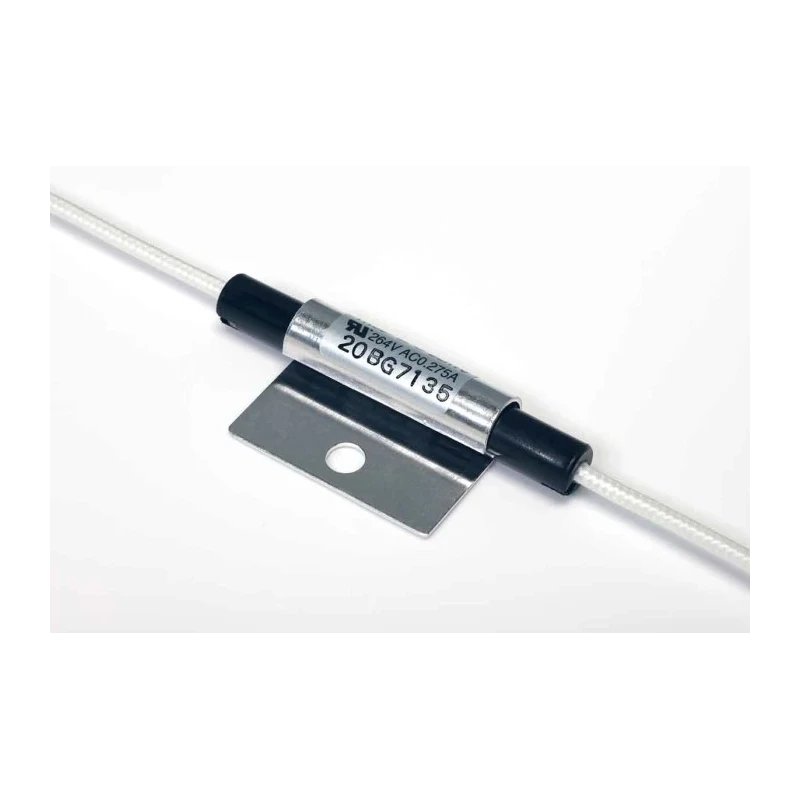

KEMET SPST Through Hole Reed Switch 270mA 264V AC Nickel Iron Alloy TRS5-105BLRVU
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | KEMET |
| Length | 50mm |
| Model | TRS5-105BLRVU |
| Depth | 20mm |
| Width | 8.2mm |
| Mount Type | Through Hole |
| Contact Material | Nickel Iron Alloy |
| Series | TRS |
| Maximum Switching Current | 270mA |
| Maximum Operating Temperature | 130°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -10°C |
| Terminal type | Cable |
| Contact Resistance | 150mΩ |
| Maximum Switching Power | 60.5W |
| Standards/Approvals | RoHS |
| Maximum Switching Voltage | 264V ac |
Key Features
- Single Pole Single Throw (SPST) contact configuration enables straightforward on/off switching.
- Handles maximum switching current up to 270mA and switching voltage up to 264V AC for broad compatibility.
- Nickel iron alloy contacts provide durability and stable operation.
- Through hole mounting ensures secure installation on PCBs and panels.
- Wide operating temperature range from -10°C to 130°C, suitable for demanding environments.
- Compact dimensions of 50mm length, 8.2mm width, and 20mm depth fit tight spaces.
- RoHS compliant for safety and environmental standards.
- Typical applications include temperature detection, overheat monitoring, heater controls, and automotive electric fan regulation.
Product Description
The KEMET TRS5-105BLRVU SPST Through Hole Reed Switch is a high-performance switching device engineered to provide reliable and precise electrical switching in automation and control systems. Its single pole single throw (SPST) configuration ensures a simple, robust method for switching circuits or signals.
This reed switch is capable of managing a maximum switching current of 270mA and a switching voltage up to 264V AC, making it adaptable for a wide range of industrial and commercial applications. The use of nickel iron alloy for the contact material guarantees long-term stability and resistance to corrosion, ensuring consistent electrical performance throughout its lifespan.
Designed for through hole mounting, the TRS5-105BLRVU is easily integrated into printed circuit boards or control panels, providing firm and dependable installation. The incorporated cable terminal type supports straightforward wiring and implementation in automated systems.
With an expansive temperature range from -10°C to 130°C and contact resistance of only 150mΩ, the device is suitable for use in harsh environments and offers low-loss switching. Its compact size - length 50mm, width 8.2mm, and depth 20mm - allows for efficient use of space in dense assemblies and sensitive electronics.
This reed switch is RoHS compliant, ensuring adherence to safety and environmental regulations and supporting sustainability efforts in modern electronics manufacturing. Additional benefits include high-speed response, extended operational life, resistance to dust, explosion, and corrosion, and simplified circuit design.
Common use cases span temperature detection and overheat protection in electric appliances, heat-retention heater controls for rice cookers, defrost management in air conditioners and vending machines, roll heater control for copiers, and radiator water temperature sensing for automotive fan regulation. Its reliable operation and versatile mounting make it a favored choice for industrial automation, laboratory instrumentation, HVAC controls, and commercial equipment.
Explore more Reed Switches by KEMET and other leading brands in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of the KEMET TRS5-105BLRVU reed switch is 270mA.
This model can handle a maximum switching voltage of 264V AC.
The contact material of this switch is nickel iron alloy, which provides durability and stable operation.
The dimensions of this reed switch are 50mm in length, 8.2mm in width, and 20mm in depth.
It operates within a temperature range of -10°C to 130°C, making it suitable for demanding environments.
This model uses through hole mounting, allowing for secure installation on printed circuit boards and panels.
The contact resistance of the KEMET TRS5-105BLRVU is 150mΩ.
It features a cable terminal type, which supports straightforward wiring and implementation in automated systems.
Yes, the KEMET TRS5-105BLRVU is RoHS compliant, ensuring it meets safety and environmental standards.
Typical applications include temperature detection, overheat monitoring, heater controls, and automotive electric fan regulation.
The maximum switching power for this reed switch is 60.5W.
The KEMET TRS5-105BLRVU reed switch is manufactured in Japan.
