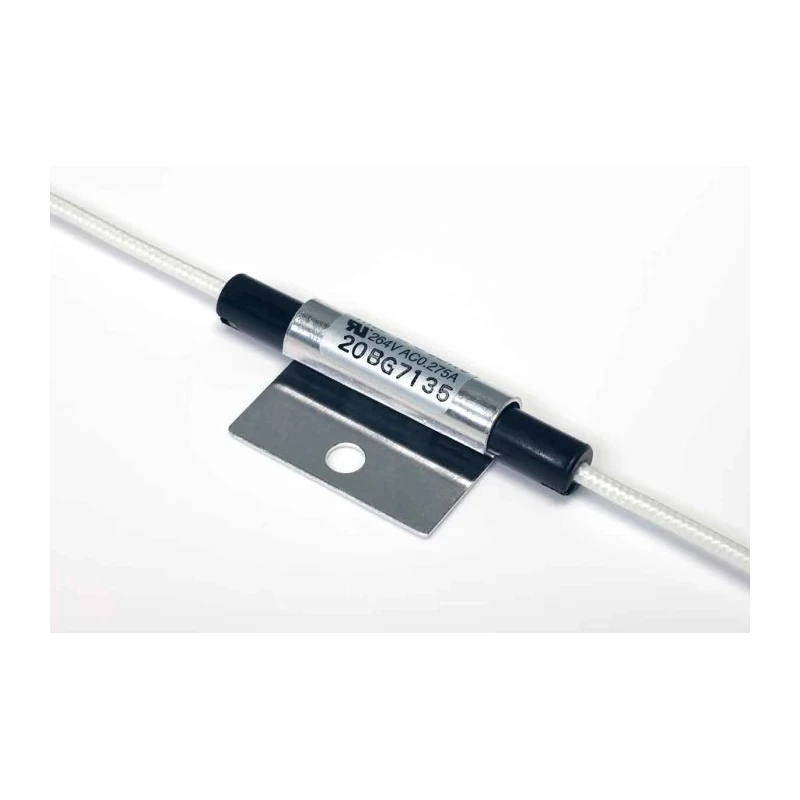

KEMET SPST Through Hole Reed Switch 270 mA 264 V AC, Nickel Iron Alloy, 60.5W, TRS5-70BLRVU

The KEMET TRS5-70BLRVU SPST Through Hole Reed Switch is a precision magnetic switching device designed for demanding industrial, commercial, and automation applications. This reed switch operates as a single pole single throw (SPST), providing straightforward switching functionality with high reliability and rapid response.

Capable of handling up to 270 mA of switching current and a maximum switching voltage of 264 V AC, the TRS5-70BLRVU delivers strong performance for electrical and electronic control systems. Its maximum switching power is rated at 60.5 W, supporting diverse power and signaling requirements. Nickel iron alloy contacts are employed to ensure robust durability, optimal conductivity, and a low contact resistance of 150 mΩ, contributing to dependable operation under frequent switching cycles.

This model is engineered for through hole mounting, making it easy to install securely on printed circuit boards and custom assemblies. The compact enclosure measures just 8.2 mm in width, 5 mm in length, and 20 mm in depth, enabling its integration where space is at a premium. With a wide operating temperature range from -20°C up to 130°C, it is suitable for environmental monitoring, industrial control, and automation in both low- and high-temperature conditions.

The TRS5-70BLRVU is compliant with UL, CSA, REACH, and RoHS standards, ensuring safety and regulatory adherence in global markets. Its high environmental durability, dust/explosion/corrosion-resistant construction, and exceptionally long operational life make it ideal for critical applications such as temperature detection and overheat monitoring in electric appliances, heat retention control in rice cookers, defrost control for air conditioners and vending machines, roll heater regulation for copiers, and radiator water temperature sensing for automotive fan control.

Industries and use cases include electronics manufacturing, HVAC, laboratory automation, process control, automotive electrical systems, and precision instrumentation requiring accurate magnetic switching.

SPST reed switch rated for 270 mA and 264 V AC, supporting robust switching operations. Maximum switching power of 60.5 W allows compatibility with diverse applications. Nickel iron alloy contact material ensures high conductivity and long operational life.

Through hole mounting for reliable PCB integration. Contact resistance of just 150 mΩ provides efficient electrical performance. Wide operating temperature range from -20°C to 130°C suitable for industrial environments. Compact form factor: 8.2 mm width, 5 mm length, 20 mm depth.

Certification to UL, CSA, REACH, RoHS standards for safety and compliance. Excellent environmental durability and high-speed response. Used in applications such as temperature detection, heat-retention, defrost, roll heater control, and radiator fan control.
