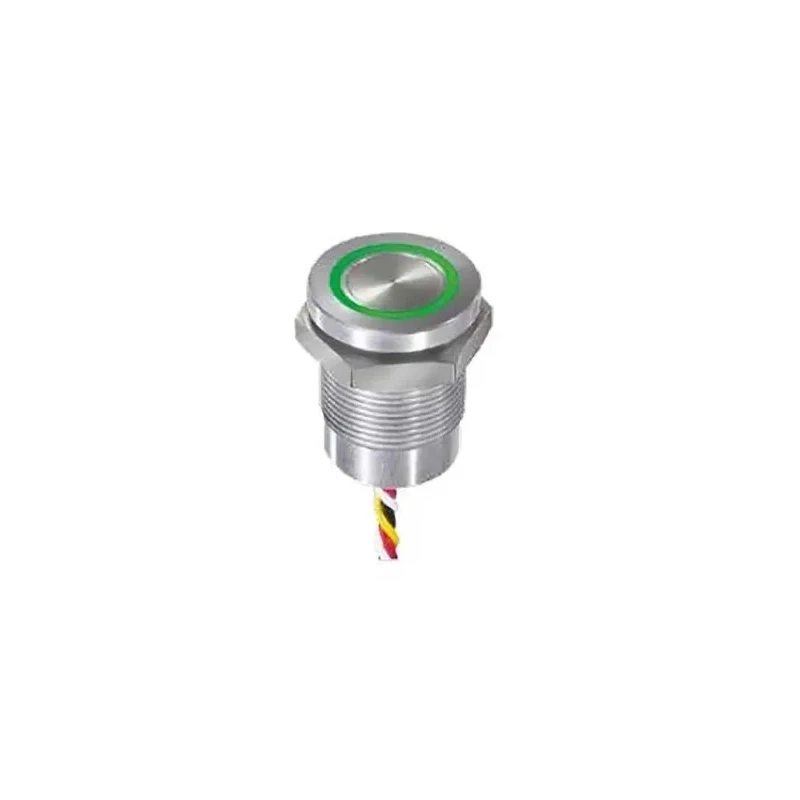

APEM Capacitive Switch Momentary, Latching Illuminated, Red Green LED, NPN Output, Aluminium Housing, IP69K CPB2110000KGSS

Free Delivery in India | Lowest Global Shipping Charges

APEM Capacitive Switch Momentary, Latching Illuminated, Red Green LED, NPN Output, Aluminium Housing, IP69K CPB2110000KGSS

Name: APEM Capacitive Switch Momentary, Latching Illuminated, Red Green LED, NPN Output, Aluminium Housing, IP69K CPB2110000KGSS
Brand: APEM
SKU: 410850
Price: 9210.26 INR
Availability: InStock



Category Capacitive Switch Brand APEM Condition New

Specifications

Country of Origin	United Kingdom
Brand	APEM
Model	CPB2110000KGSS
IP Rating	IP69K, IP68
Housing Material	Aluminium
Current Rating	200mA
Switch Type	Capacitive
Output type	NPN
Series	CP
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-20°C
Maximum Input Voltage	24V
Standards/Approvals	IEC 60529, EN61000-4-2
Minimum Input Voltage	5V
LED Colour	Red, Green
Switch Operation	Momentary
Housing Colour	Gold, Blue, Green, Red, Black
Switch Function	Momentary, Latching

Key Features

Touch sensor switch with 19mm bushing diameter offers momentary OFF switching.
Aluminium anodized case provides robustness and chemical resistance.
Independent or output image LED functionality with red and green illumination.
Sealed to IP68 and IP69K for dust and water resistance.
Adjustable sensitivity and auto-calibration for reliable operation.
Life expectancy of 50 million cycles ensuring long-term use.
IK10 impact resistance ideal for self-service and repetitive applications.
Output type is NPN suitable for industrial control circuits.

Product Description

APEM CPB2110000KGSS capacitive switch is designed for industrial and automation applications requiring momentary and latching switching. The device features a 19mm bushing diameter and operates with a touch sensor mechanism, eliminating mechanical wear. Its aluminium anodized housing ensures durability and resistance to chemicals and contaminants.

The switch is illuminated with red and green LEDs which provide clear status indication in industrial settings. It offers independent or output image LED functionality, enhancing usability in control panels.

With IP68 and IP69K sealing, the switch is highly resistant to dust, dirt, and high-pressure water jets, making it suitable for challenging environments including washdown areas. The device operates reliably across a temperature range of -20°C to 65°C and has an IK10 impact resistance, supporting its use in rugged applications like self-service kiosks.

The output is NPN type with a current rating of 200mA and input voltage between 5V and 24V. Its auto-calibration function and adjustable sensitivity improve response accuracy and performance in automated systems. The switch meets international standards IEC 60529 and EN61000-4-2, ensuring compliance with safety and electromagnetic compatibility requirements.

This capacitive switch is ideal for industrial automation, electrical control systems, manufacturing lines, and commercial equipment where reliable touch-operated switching is critical.

Touch sensor with momentary OFF switching and momentary/latching function. Aluminium anodized housing for chemical resistance and durability. Red and green illuminated LEDs with independent or output image. Sealed to IP68 and IP69K for environmental protection.

Adjustable sensitivity and auto-calibration for precise operation. 50 million cycle life expectancy with IK10 impact resistance. Operating temperature range of -20°C to 65°C. NPN output type rated at 200mA current. Complies with IEC 60529 and EN61000-4-2 standards.

Explore more Capacitive Switches and related components at EnvMart for advanced electrical and automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch has an IP rating of IP68 and IP69K, providing excellent dust and water resistance suitable for challenging environments.

It operates reliably within a temperature range of -20°C to 65°C.

This model features an NPN output type with a current rating of 200mA.

The housing is made of anodized aluminium, which provides durability and chemical resistance.

The switch has a life expectancy of 50 million cycles, ensuring long-term use in various applications.

It features red and green LEDs, allowing for clear status indication.

Yes, it has adjustable sensitivity and an auto-calibration function for improved performance.

This model supports both momentary and latching switch operations.

It complies with IEC 60529 and EN61000-4-2 standards, ensuring safety and electromagnetic compatibility.

The switch features a bushing diameter of 19mm, suitable for various mounting applications.

It is ideal for industrial automation, electrical control systems, manufacturing lines, and commercial equipment requiring reliable touch-operated switching.

This model has an IK10 impact resistance rating, making it suitable for rugged applications.
