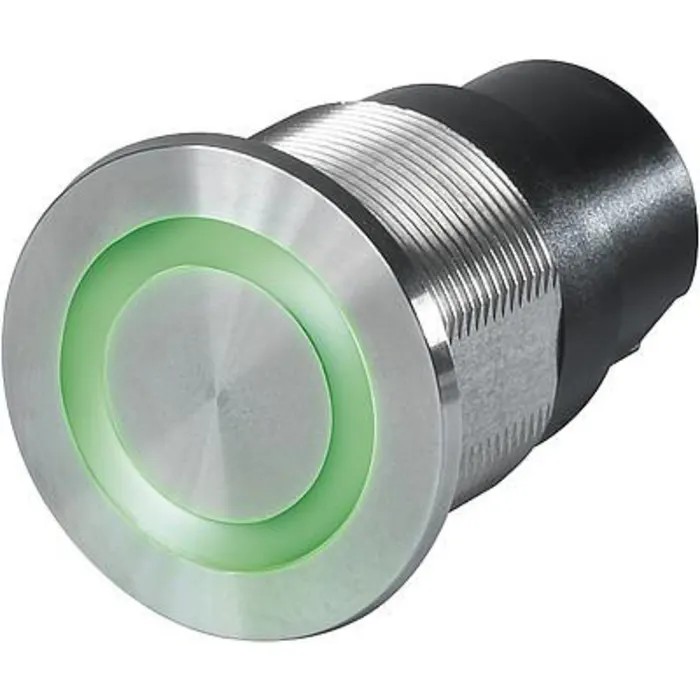

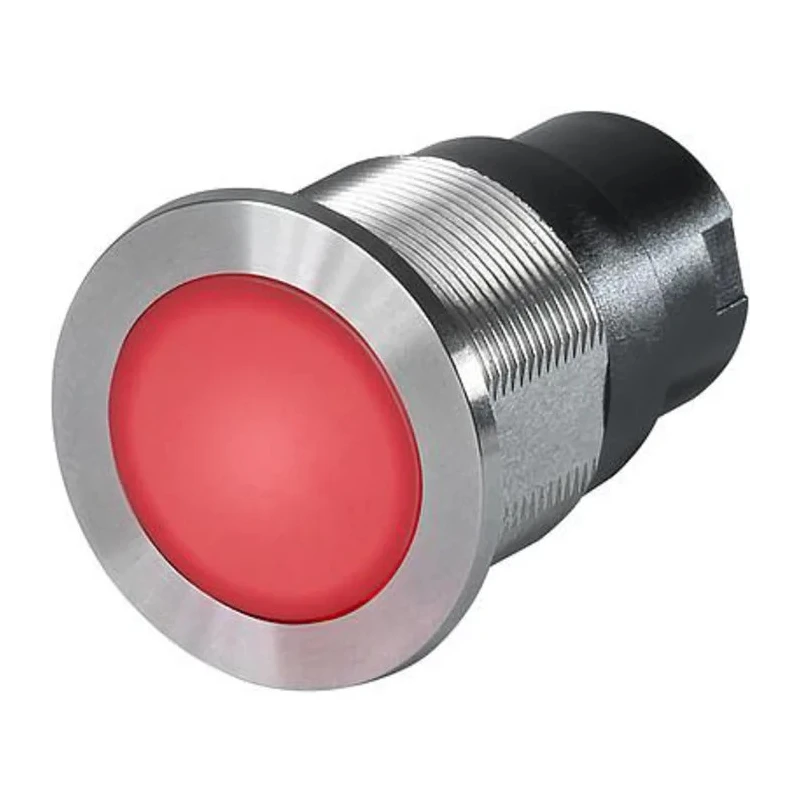

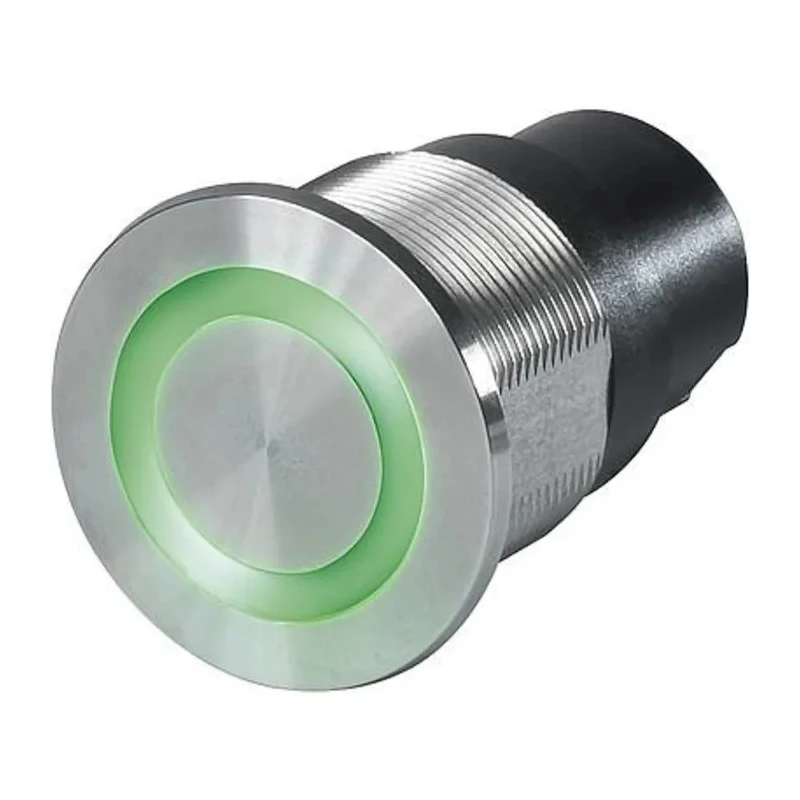

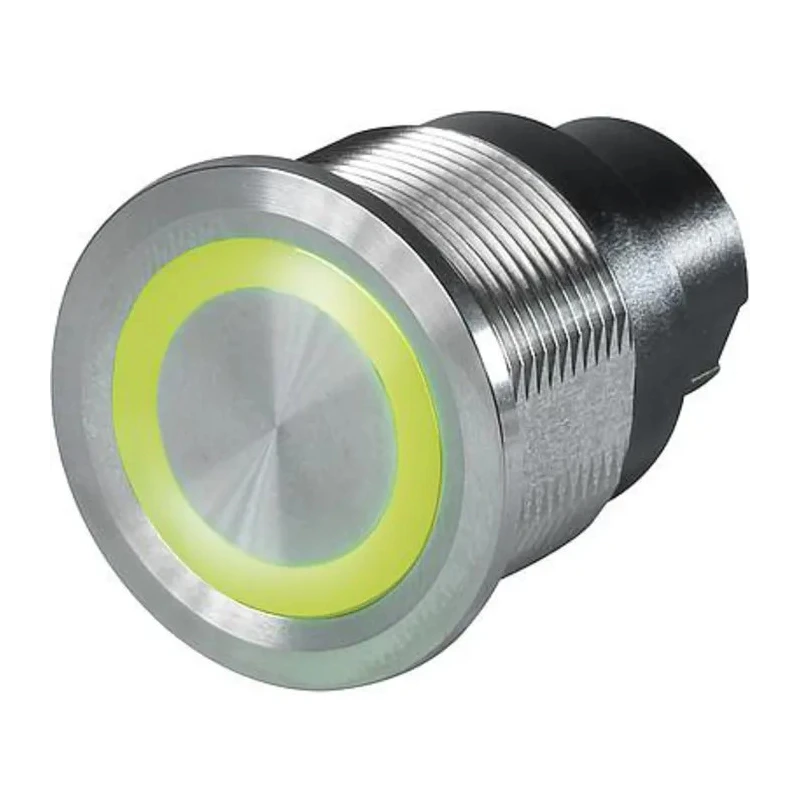

Schurter Capacitive Switch Momentary NO Illuminated RGB OptoMOS Relay IP67 Stainless Steel 3-101-419

Schurter 3-101-419 capacitive switch Momentary NO Illuminated RGB OptoMOS Relay IP67 Stainless Steel is a high-performance sensor designed for demanding industrial and automation systems. It features a capacitive touch sensor that operates as a momentary normally open (NO) push button with multicolor RGB illumination.

The switch housing is crafted from stainless steel which offers excellent corrosion resistance and durability in harsh environments. The touch surface utilizes scratch-resistant ceramics or stainless steel to enhance longevity while providing either area illumination or ring illumination depending on the model variant.

This switch offers reliable operation within an input voltage range of 5V to a maximum of 28V DC and a maximum current rating of 100mA. The OptoMOS relay output ensures galvanic isolation for safety and interference reduction. The device is rated IP67 for dust-tight and water immersion protection, making it suitable for outdoor or industrial environments.

Operating temperature ranges from -40°C to 60°C, ensuring functionality even in extreme conditions. The switch's design prevents unintended actuation through protection features and is highly vandal resistant with no moving parts, which significantly reduces wear and maintenance requirements. Multiple illumination colors and combinations can be customized to suit application needs.

The product supports floating switch connections and offers laser lettering for clear identification. It is compliant with REACH, RoHS, and IEC/UL 60950 standards, ensuring safety and environmental compliance.

This capacitive switch is ideal for industrial process controls, automation panels, security systems, and other applications requiring reliable, robust, and wearless touch response. Its metallic finish and attractive design offer aesthetic appeal alongside industrial-grade performance.

This capacitive switch features a momentary normally open function. RGB illumination provides multicolor indication with high visibility. Construction includes corrosion-resistant stainless steel housing and scratch-resistant ceramic or steel touch surface.

Rated for a maximum input voltage of 28V DC and current rating of 100mA. Offers IP67 ingress protection and operates reliably between -40°C and 60°C. Output utilizes galvanically isolated OptoMOS relay technology for enhanced safety.

Designed for vandal resistance with no mechanical moving parts, ensuring wearless operation. Supports floating switch connections and laser lettering customization. Complies with REACH, RoHS, and IEC/UL 60950 standards. Explore more Schurter Capacitive Switches and related industrial electrical components at EnvMart for reliable automation and control solutions.
