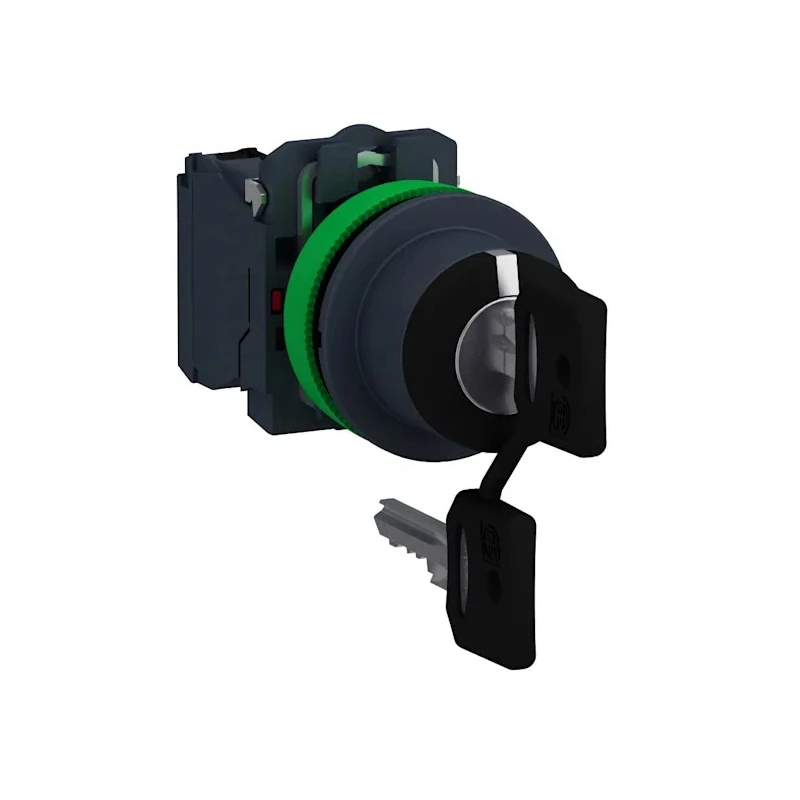

Schneider Electric IP66 IP67 IP69 IP69K Key Switch DPST 3A 3-Way 455-Key XB5FG33
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XB5FG33 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Housing Material | Plastic |
| Contact Material | Silver Alloy |
| Series | XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switch Operation | Stay Put |
| Contact DC Voltage | 600V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Key Type | 455 |
| Bezel Shape | Round |
| Key Index Angle | 45° |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- This key switch features a durable plastic housing with a round bezel shape.
- It supports 3 positions with a 45° key index angle and stay-put operation for precise control.
- The contact material is silver alloy, ensuring longevity and corrosion resistance.
- Suitable for AC and DC voltages up to 600V, supporting various industrial control environments.
- Designed for extreme operating temperatures from -40°C up to 70°C.
- Mounting diameter is 30.5 mm with compact dimensions of 42 mm height and 36.6 mm width.
- The switch offers a mechanical life of 1,000,000 cycles for extended reliability.
- Includes screw clamp terminals to secure wiring firmly and prevent vibration.
Product Description
Schneider Electric XB5FG33 is a flush-mounted key switch designed for demanding industrial environments, featuring high ingress protection ratings IP66, IP67, IP69, and IP69K. This key switch supports a double pole single throw (DPST) contact configuration with a 3A contact current rating and 3-position operation with ±45° key angles and stay-put switching action.
The device’s plastic housing and round bezel provide a robust and ergonomic design suitable for panel mounting with a 30.5 mm diameter cutout. It is engineered to withstand harsh conditions with an operating temperature range from -40°C to 70°C and mechanical endurance of one million cycles, ensuring dependable long-term performance.

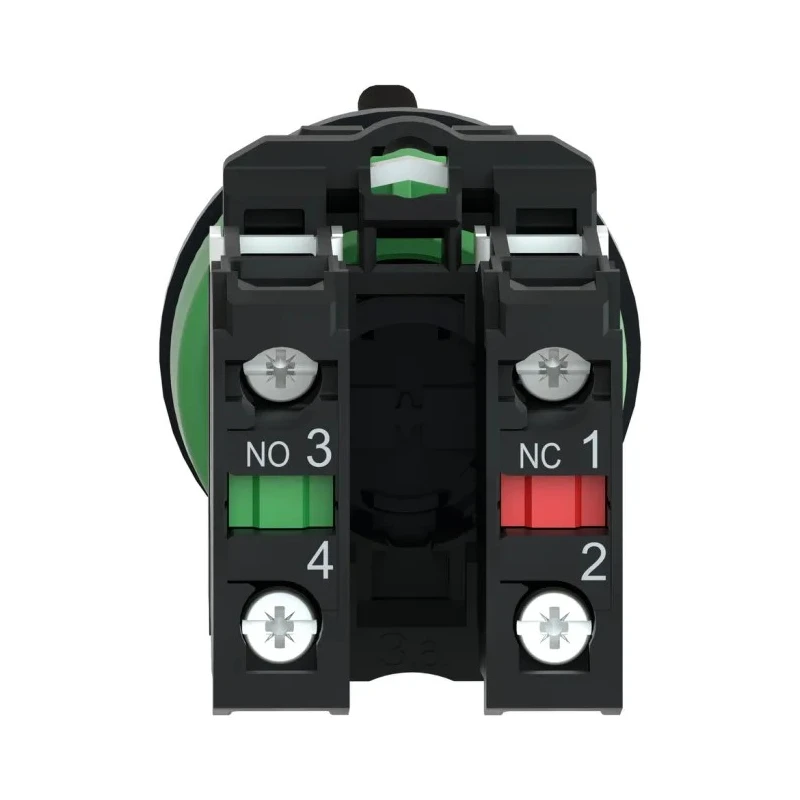

Equipped with silver alloy contacts and screw clamp terminals, this key switch guarantees secure and vibration-resistant connections. It supports AC and DC voltages up to 600V for flexible deployment in a wide range of applications.
This switch is part of the Harmony XB5 series, recognized for its reliability and ease of customization, including marking options via Schneider Electric's web customization tool. The compact size (42 mm height by 36.6 mm width) and lightweight construction (~83 grams) facilitate ergonomic installation.
Designed for tough environments, the XB5FG33 meets stringent chemical robustness and vibration resistance standards, making it well-suited for sectors like food and beverage processing, marine, building infrastructure, and other industrial sectors requiring high protection against dust, water, and mechanical impacts.
The packaging contains one unit of this key switch, ready for easy panel installation using common tools such as a cross-head screwdriver. Accessories including metal blanking plugs and mounting kits are available separately for further customization.
Compliance with RoHS and WEEE directives and multiple approvals including EN/IEC, CE, UL, CSA, NEMA, JIS, and marine certifications demonstrate the product's quality and environmental responsibility.
This Key Switch offers high ingress protection ratings for industrial safety. Durable materials and mechanical design ensure longevity and reliable operation. Wide operating temperature range enables use in extreme environmental conditions.
Flexible connection options and accessory support enhance installation versatility. Suitable for diverse industrial sectors including food and beverage and marine applications. Explore additional Schneider Electric control and switching products on EnvMart to find compatible solutions that enhance your industrial automation and safety systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this key switch is 70°C.
This model features a double pole single throw (DPST) contact configuration.
The key switch has ingress protection ratings of IP66, IP67, IP69, and IP69K, making it suitable for harsh environments.
It has a mechanical life rating of 1,000,000 cycles, ensuring long-term reliability.
The mounting diameter is 30.5 mm, with compact dimensions of 42 mm height and 36.6 mm width.
It uses screw clamp terminals to secure wiring firmly and prevent vibration.
The contact current rating for this key switch is 3A.
The housing is made of plastic, and the contact material is silver alloy, which ensures longevity and corrosion resistance.
It supports AC and DC voltages up to 600V.
It is ideal for extreme environments, including food and beverage processing and marine applications.
This key switch uses a 455 key type with a 45° key index angle.
It complies with RoHS and WEEE directives and has multiple approvals including EN/IEC, CE, UL, CSA, NEMA, JIS, and marine certifications.
