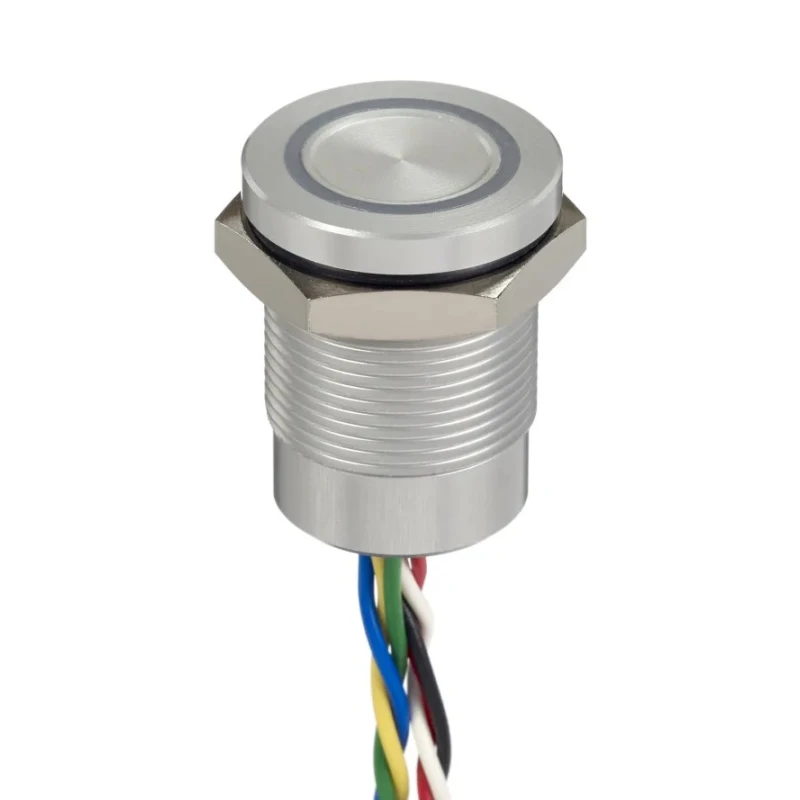

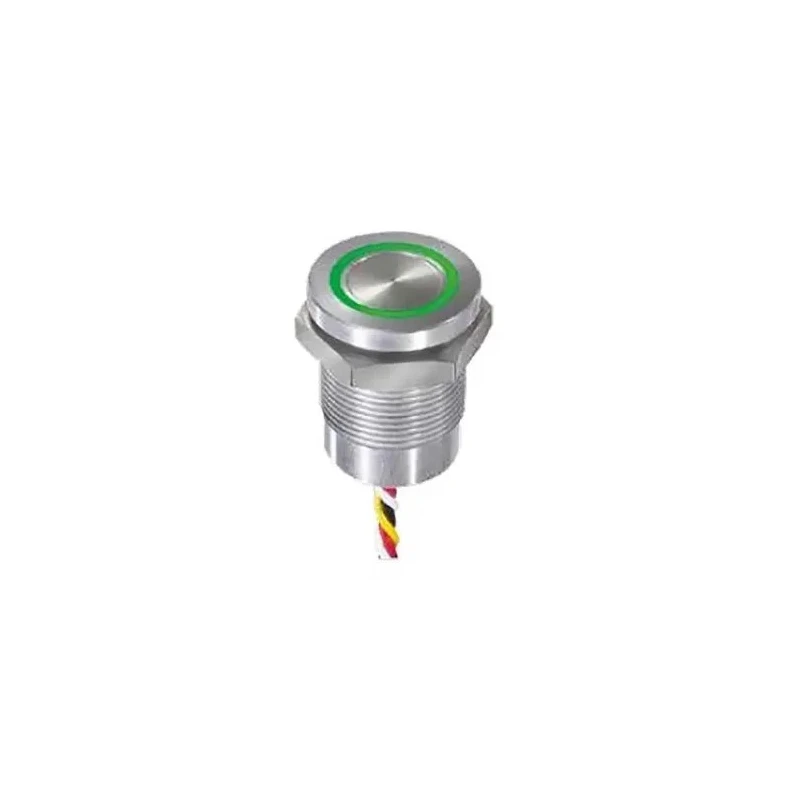

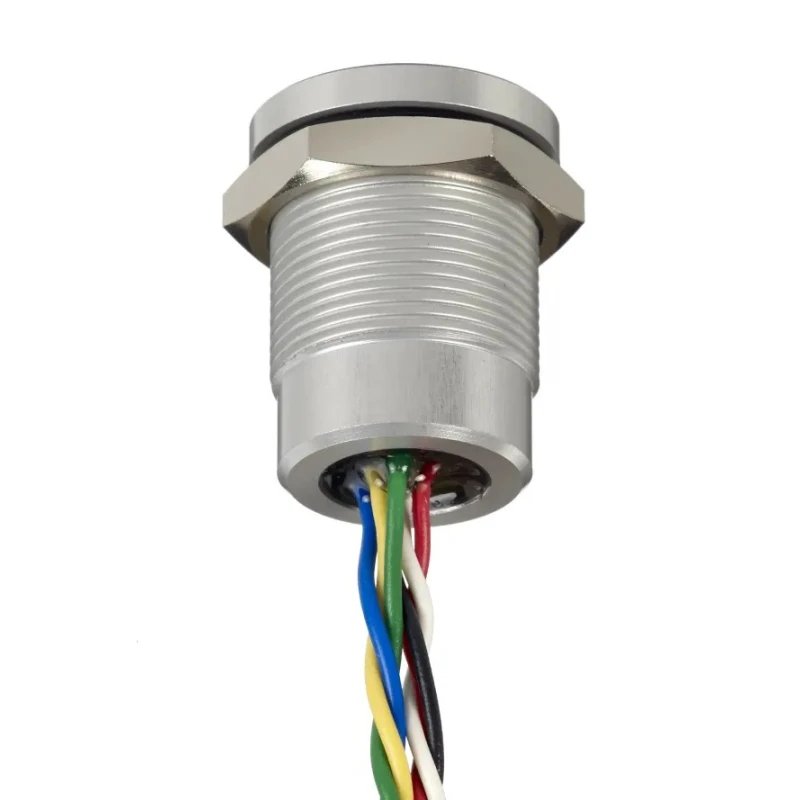

APEM Capacitive Momentary and Latching Switch with Aluminium Housing, Illuminated Green and Red LED, NPN CPB2110000NGSS

APEM CPB2110000NGSS Capacitive Momentary and Latching Switch is designed for industrial and automation applications requiring reliable touch sensor operation. It features a robust aluminium anodized case and illuminated green and red LEDs to clearly indicate switch status. The capacitive switch operates without mechanical movement, providing high durability with a lifetime expectancy of 50 million cycles. It is powered with an input voltage range from 5V minimum to a maximum of 24V, and outputs an NPN type signal ideal for integration in control systems.

The device is sealed to IP68 and IP69K standards, making it highly resistant to dust, dirt, water, and chemical contaminants, suitable for demanding industrial, laboratory, and outdoor environments. Its operating temperature range from -20°C to 65°C enables use in a broad spectrum of climatic conditions. The switch utilizes an auto-calibration function and adjustable sensitivity allowing precise user control and robustness for repetitive use with no mechanical wear. Its IK10 impact resistance certifies endurance against physical shocks, making it perfect for self-service applications and environments exposed to impacts.

This switch is part of the CP series and branded by APEM, known for durable and high-quality electronic components. The compact 19mm bushing diameter capacitive switch is easy to integrate into control panels, machinery, or custom equipment requiring momentary and latching switching capabilities with illuminated feedback.

Constructed with aluminium housing for strength and corrosion resistance. Dual LED colour illumination (Green and Red) for clear status indication. IP68 and IP69K rated sealing for superior environmental protection. Operates between -20°C and 65°C ensuring reliability in harsh conditions.

Auto-calibration and adjustable sensitivity enhance operational accuracy. Designed for 50 million lifecycle operations providing long-lasting use. NPN output type compatible with various system architectures. High impact resistance (IK10) for rugged industrial environment use.

No mechanical parts to wear out, ensuring maintenance-free operation. Ideal for industrial, automation, water treatment, and laboratory usage. Explore more quality Capacitive Switches and related electronic components in the Electronics & Electricals category at EnvMart.
