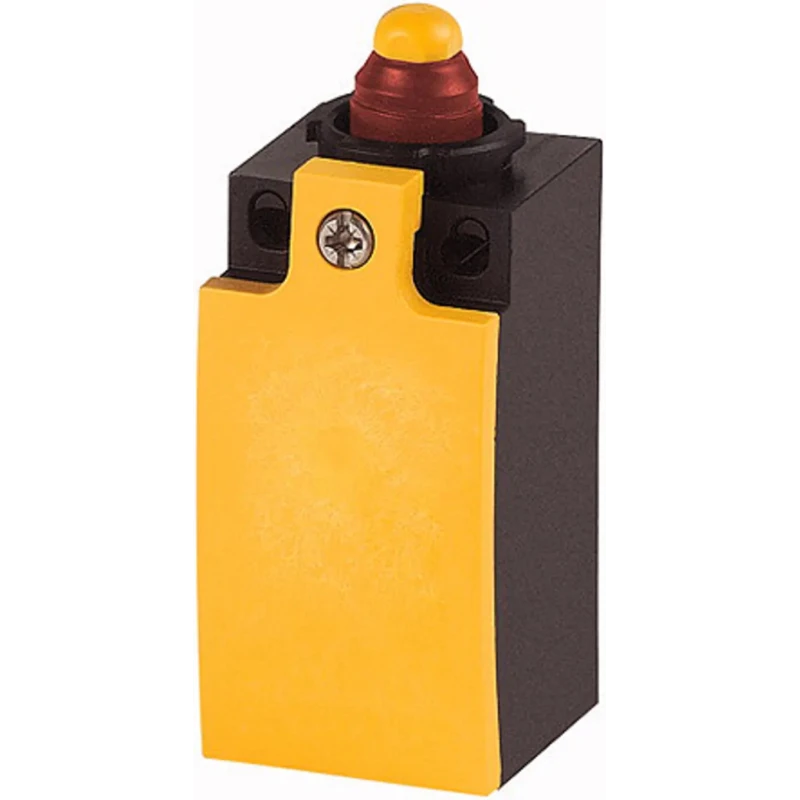

Eaton LS-Titan Series Plunger Limit Switch, 2 NO, IP65, Insulated Plastic Housing, 415V AC, 6A 176892 LS-S20-CC

Eaton 176892 LS-S20-CC is a robust plunger limit switch from the LS-Titan series, engineered for reliable position monitoring in industrial automation and safety systems. Combining heavy-duty construction and insulated plastic housing, this device excels in cold climate and demanding environments with its IP65 ingress protection.

The plunger actuator ensures accurate detection of machine or guard positions, preventing unauthorized operation and ensuring personnel safety. Its 2 normally open snap-action contacts deliver swift, positive switching, supporting critical safety circuits and machine control operations. The LS-Titan design allows installation in various industrial applications, including protective guard monitoring, door, flap, and hinge detection. The switch can be mounted in all four directions for maximum versatility, ensuring flexible integration within diverse control systems.

Key technical specifications include operation across wide voltage ranges (415V AC and 220V DC), a switching current of 6A, and compatibility with electronic devices due to high reliability contacts. The limit switch offers mechanical durability up to 8 million operations, making it ideal for frequent cycle applications in packaging, manufacturing, and automation processes. Its cage clamp terminals support quick and vibration-proof wiring, minimizing maintenance while providing sturdy electrical connections. The operating temperature window from -40°C to 70°C allows use in cold climate applications.

The compact footprint (31mm length, 33.5mm width, 76mm depth) allows integration within restricted machine spaces. The LS-Titan’s advanced modular design provides the option of interchangeable operating heads (plunger, lever, rotary, rod) and terminal types, further enhancing adaptability to specialized requirements. Compliance with RoHS standards underscores environmental responsibility, while the absence of hazardous area certification confirms usage in standard industrial settings. The device’s mounting orientation flexibility and 1N operating force make installation straightforward and user-friendly.

Industrial use cases include: safety and position monitoring for machinery guards, machine tool automation, conveyor systems, process equipment surveillance, and HVAC control panels. Eaton’s LS-Titan limit switch series helps maintain operational safety, protect personnel, and ensure process continuity in commercial, industrial, and laboratory settings.
