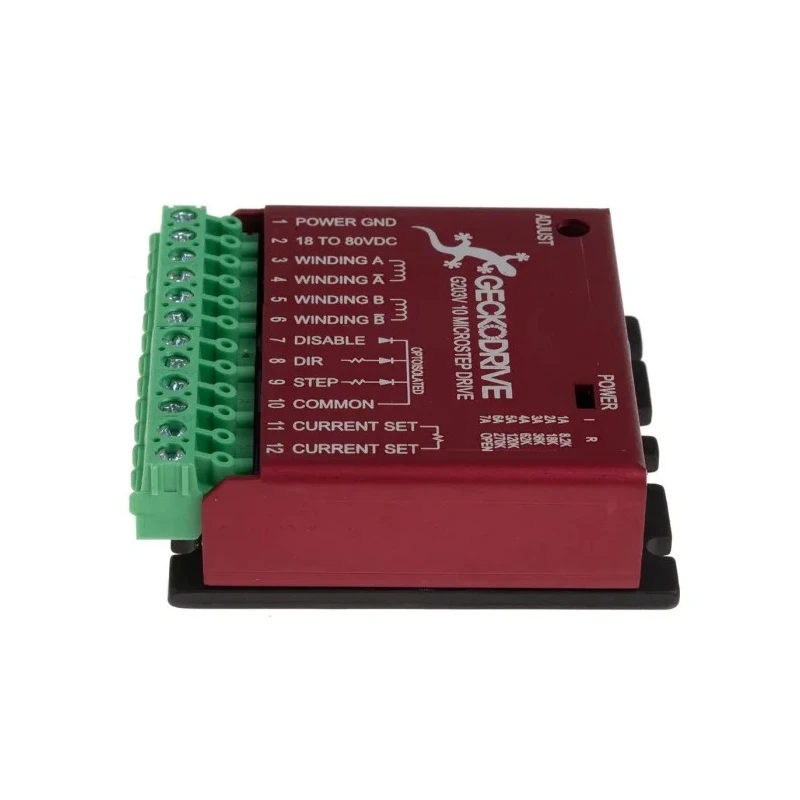

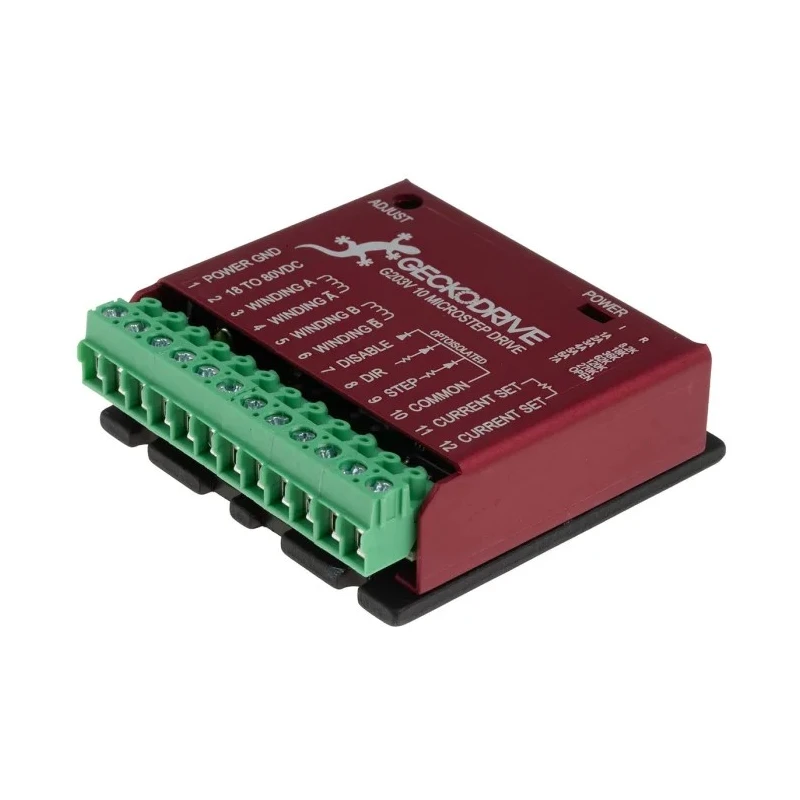

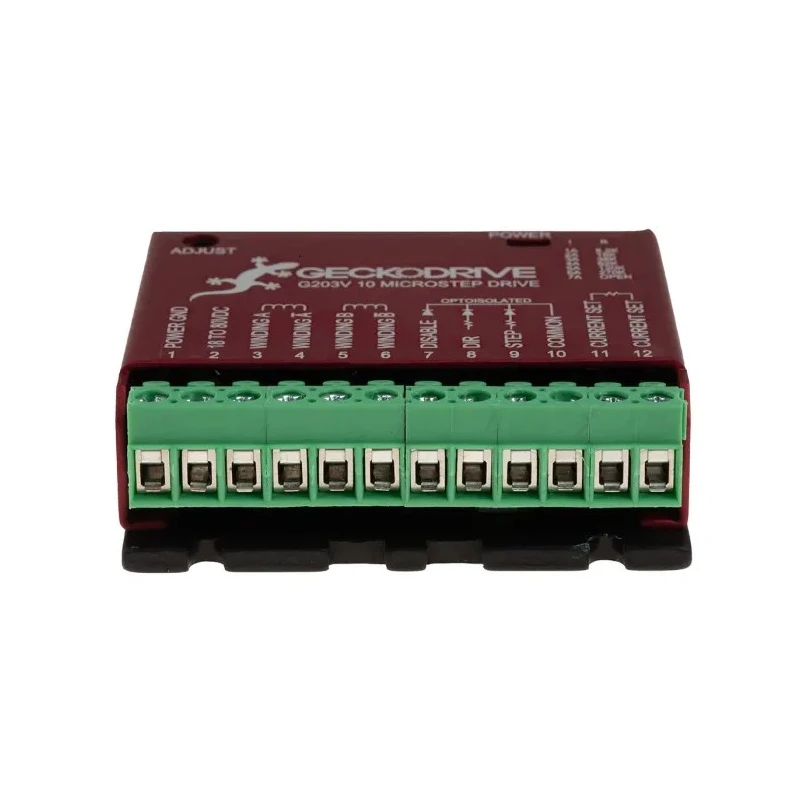

Geckodrive 10 W, 80V DC, 2 Phase, 7A Stepper Motor Controller G203V
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Geckodrive |
| Model | G203V |
| Overall Length | 63.5mm |
| Current Rating | 7A |
| Overall Width | 21mm |
| Power Rating | 10W |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Number of Phases | 2 |
| Output Voltage | 80V dc |
| Supply Voltage | 80V dc |
| Overall Depth | 65.5mm |
Key Features
- Equipped with short-circuit protection for the motor outputs.
- Includes over-voltage and under-voltage protection ensuring safety.
- Integrated over-temperature protection and reversed power supply polarity protection.
- Features opto-isolated STEP, DIRECTION, and DISABLE inputs compatible with +2.5/3.3/5 VDC.
- Jumper-free design eliminates need for internal user settings or drive cover removal.
- Virtually silent operation due to synchronous PWM technology reduces motor heating.
- LED status indicators provide visual feedback on operational state.
- Supports power supply voltage range between 15 and 80 VDC.
Product Description
Geckodrive G203V stepper motor controller is a high-performance CPLD-based microstep drive designed for industrial and laboratory applications requiring precise motor control. Featuring a 10 W power rating and supporting up to 7 A current, it delivers an 80 V DC output for 2 phase stepper motors.
Its advanced synchronous PWM design ensures silent operation and minimal heat generation even at low speeds or when the motor is stationary. This makes the G203V suitable for environments sensitive to noise and temperature fluctuations.
Robust protections include short-circuit safeguards on motor outputs, over-voltage and under-voltage protections, over-temperature shutdown, and reversed power supply polarity prevention, enhancing device reliability in demanding conditions.
The control interface offers opto-isolated STEP, DIRECTION, and DISABLE inputs compatible with common logic voltage levels (+2.5 to 5 VDC), enabling seamless integration with various controllers and embedded systems. The drive is jumper-free, requiring no manual configuration or cover opening, simplifying setup and maintenance.
LED indicators provide diagnostic feedback during operation, assisting in troubleshooting and ensuring smooth performance. Recommended for use in industrial automation, CNC machinery, robotics, and other applications requiring precise and reliable stepper motor control.
Features advanced protections including short-circuit, over-voltage, under-voltage, and reversed polarity safeguards. Synchronous PWM technology for silent operation and reduced motor heating. Compact form factor with dimensions (LxWxD): 63.5 x 21 x 65.5 mm.
Control inputs are opto-isolated for reliable signal integrity and noise immunity. Ideal for industrial, laboratory, manufacturing, and automation uses. Country of origin: United States. Product condition: New. Explore more in the Motor Controller category at EnvMart for your automation and motion control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The G203V stepper motor controller has a power rating of 10 W.
It can provide a maximum output voltage of 80 V DC.
The current rating for this controller is 7 A.
The dimensions are 63.5 mm in length, 21 mm in width, and 65.5 mm in depth.
This model operates within a temperature range of 0°C to 70°C.
It features opto-isolated STEP, DIRECTION, and DISABLE inputs compatible with +2.5 to 5 VDC logic levels.
Yes, it includes short-circuit protection, over-voltage and under-voltage protection, over-temperature shutdown, and reversed power supply polarity protection.
Yes, it has a jumper-free design that eliminates the need for internal user settings or drive cover removal, simplifying setup and maintenance.
This model is recommended for industrial automation, CNC machinery, robotics, and other applications requiring precise motor control.
It utilizes synchronous PWM technology, which ensures silent operation and reduces motor heating.
The G203V stepper motor controller is manufactured in the United States.
This controller supports 2 phases.
