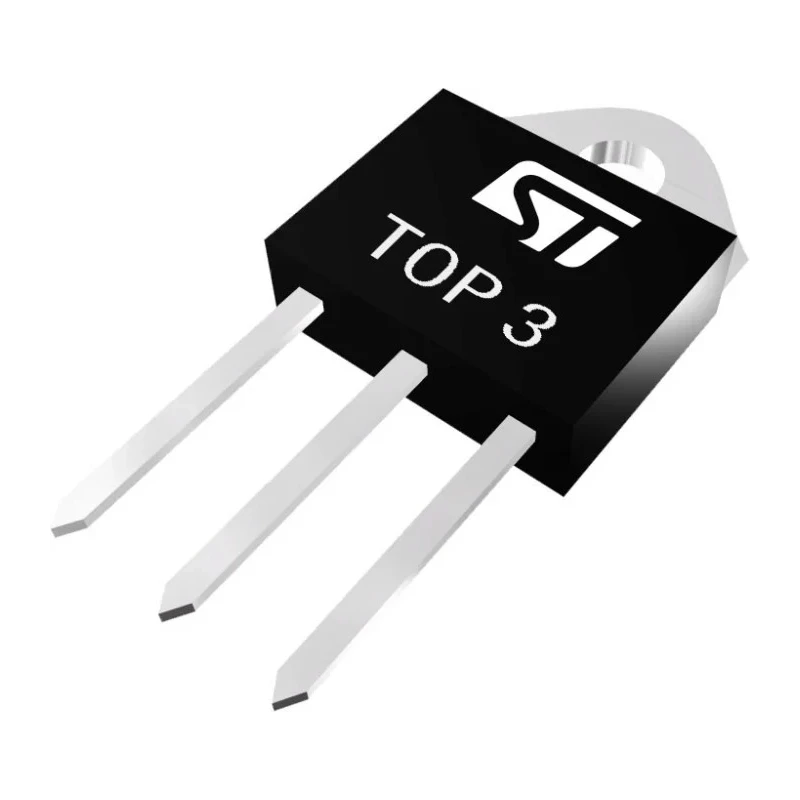

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA41-700BRG

STMicroelectronics BTA41-700BRG is a high power, through hole 3-pin TRIAC designed for general purpose AC switching. It offers a repetitive peak reverse voltage of 600 V and a gate trigger voltage of 1.3 V suitable for demanding phase control operations.

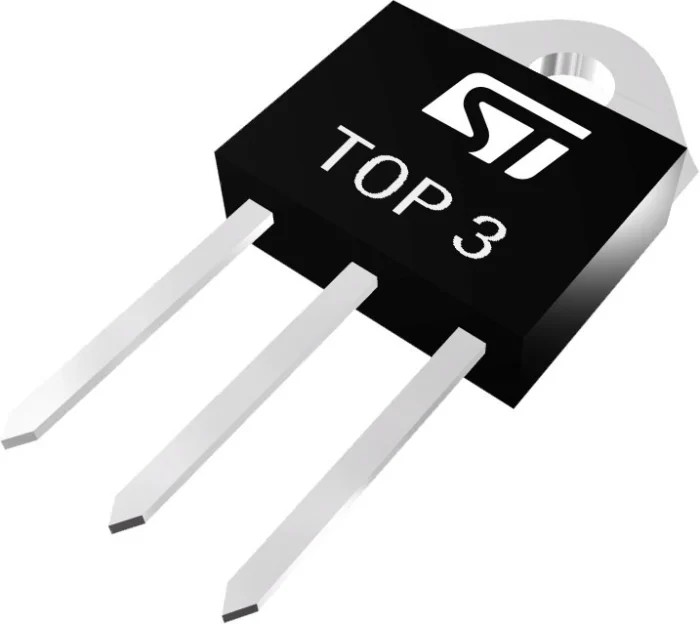

This TRIAC supports a rated average on-state current of 41 A and a surge current rating up to 420 A, making it ideal for heavy load control applications such as heating regulation, induction motor starting circuits and light dimmers. The device features a TOP package designed for through-hole mounting, with a length of 15.5 mm and height of 21.1 mm.

The product has a maximum gate trigger current of 50 mA and maximum holding current of 80 mA, enabling efficient and reliable triggering and holding of the conduction state. It operates effectively in a wide temperature range from -40°C to 125°C, ensuring durability in industrial and commercial settings.

STMicroelectronics incorporates high commutation capability and low thermal resistance with clip bonding in this TRIAC, providing enhanced performance. The insulated tab offers a rating of 2500 V rms to facilitate safer installation in power electronics hardware.

This device conforms to RoHS standards, ensuring compliance with environmental guidelines. Applications include static relays, motor speed controllers, and general on/off switching functions in various industrial, manufacturing, HVAC and electronic equipment contexts.

High current TRIAC with 41 A rated average on-state current. Through hole mount using TOP package type. Robust voltage ratings including 600 V repetitive peak reverse voltage. Wide operating temperature range from -40°C to 125°C.

Efficient gate triggering voltage of 1.3 V with low gate current. Suitable for heating controls, motor starters, and phase control dimmers. Durable design with low thermal resistance and high commutation ability. Environmentally compliant with RoHS certification.

For engineers and designers requiring a reliable high power TRIAC, the STMicroelectronics BTA41-700BRG is a proven and versatile choice. Explore additional STMicroelectronics semiconductor products and technical documents at EnvMart to support your industrial and electronic component needs.
