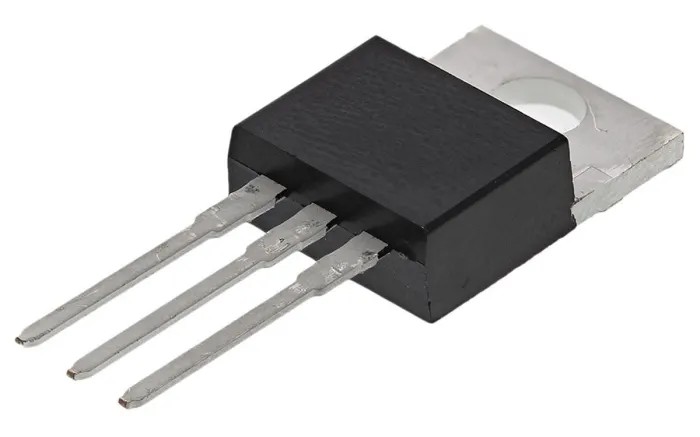

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA12-600BRG

STMicroelectronics BTA12-600BRG is a high-quality through hole 3-pin TRIAC designed for switching and controlling AC power in industrial, commercial, and residential applications. It supports a maximum voltage rating of 600 V and can handle an average on-state current of 12 A, making it suitable for medium power motor controls, dimmers, heater controls, and electronic switching devices.

The device comes in a TO-220 package, which facilitates thermal management and easy mounting on printed circuit boards. Its gate trigger voltage of 1.3 V and maximum gate trigger current of 100 mA enable reliable activation with low input power. The device features a repetitive peak reverse voltage of 600 V along with a surge current rating of 126 A, providing resilience against electrical surges and transient overloads.

Designed to operate in harsh environmental conditions, the BTA12-600BRG functions within a temperature range from -40°C to 125°C, ensuring stability and longevity in varying climates. Its holding current of 50 mA, peak gate power dissipation of 1 W, and peak on-state voltage of 1.55 V reflect efficient electrical characteristics for precise control.

This TRIAC is RoHS compliant, offering environmentally friendly and regulation-compliant performance. Its compact dimensions with a length of 10.4 mm and height of 15.9 mm allow integration into space-constrained assemblies.

Typical industrial uses include automation systems, HVAC controls, lighting dimmers, and AC power modulation. The device is ideal for applications requiring single TRIAC configurations with reliable switching and thermal stability.

Set yourself up for success in electronics and power management with STMicroelectronics BTA12-600BRG, a dependable semiconductor solution engineered for versatile AC power control.

Through hole mount with TO-220 package type for easy PCB integration. Maximum repetitive peak reverse voltage of 600 V for robust operation. Peak surge current rating of 126 A to handle transient overloads. Operating temperature range from -40°C to 125°C ensures durability in harsh environments.

Maximum gate trigger current of 100 mA with holding current of 50 mA. 3-pin single configuration for straightforward deployment in AC power control circuits. RoHS compliant ensuring environmental safety and regulatory adherence.

Compact dimensions of 10.4 mm length and 15.9 mm height for space-efficient designs. Explore additional semiconductor solutions in the Electronics & Electricals category at EnvMart to optimize your designs and power management needs.
