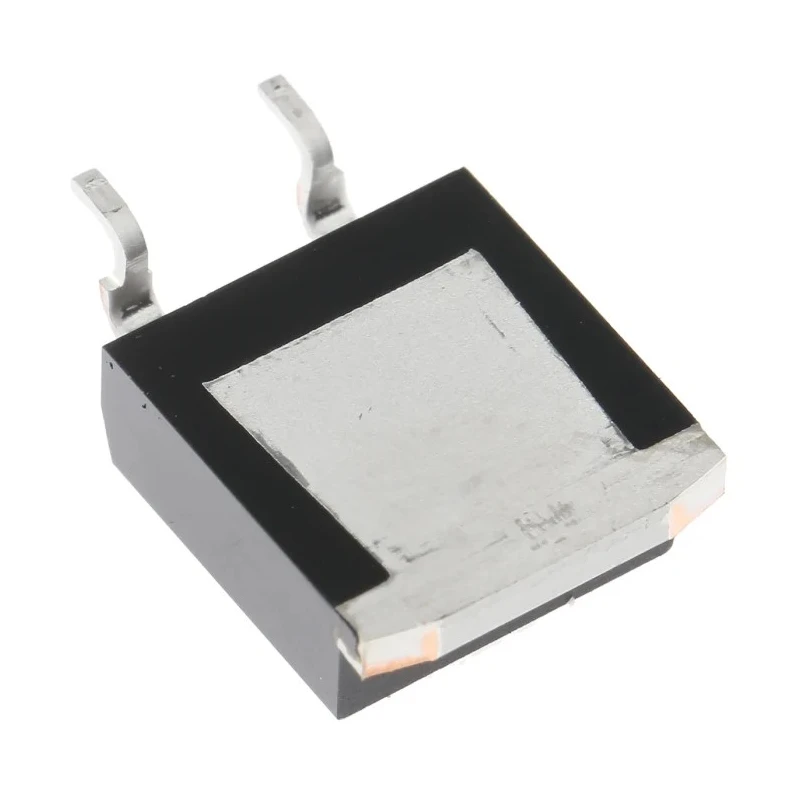

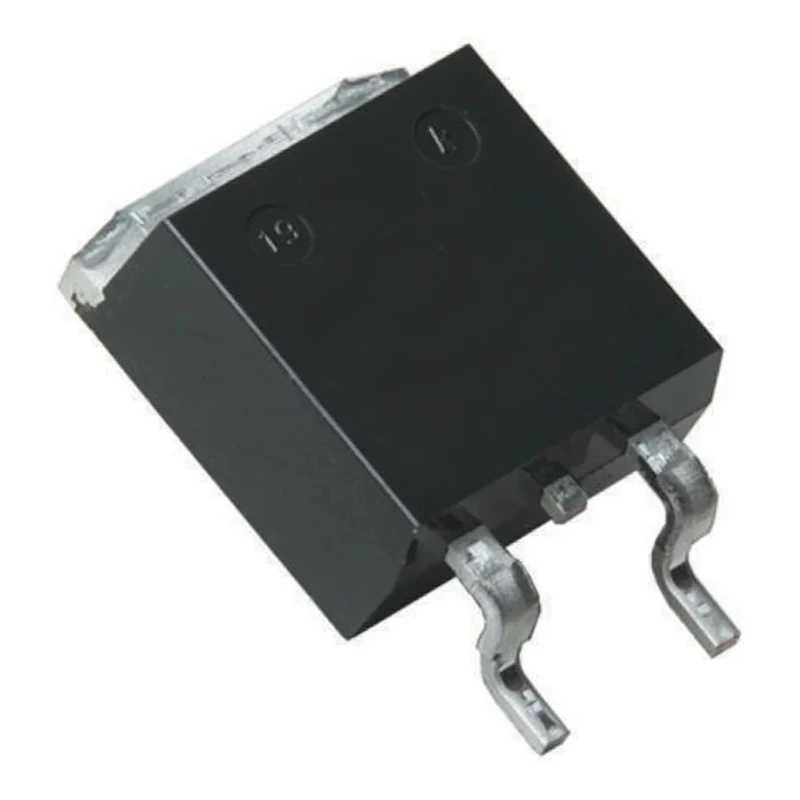

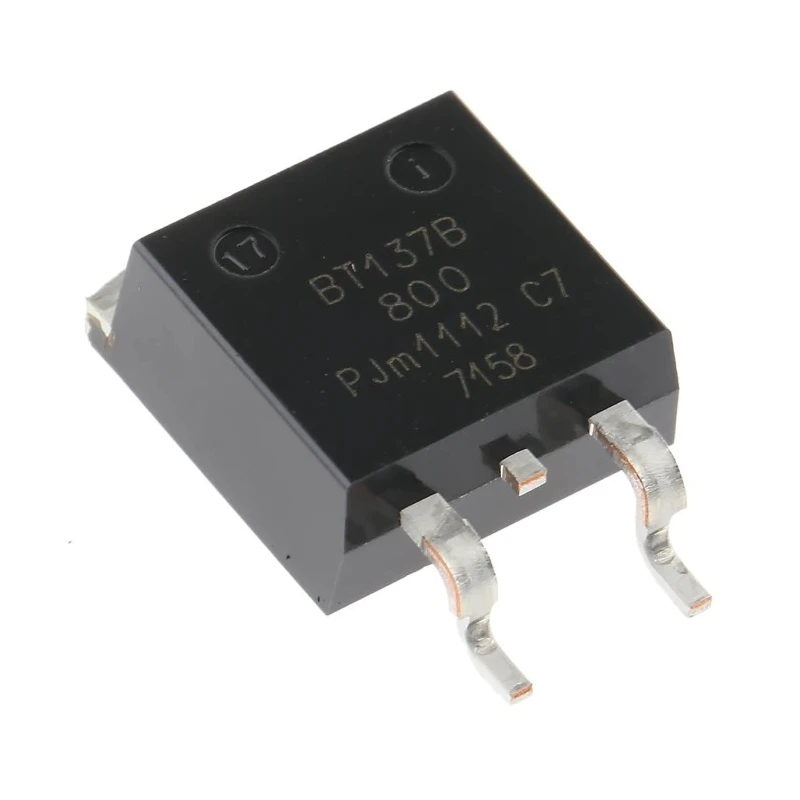

WeEn Semiconductors Co., Ltd Surface Mount 3-Pin TO-263 TRIAC 800 V 8A Gate Trigger 1.5 V BT137B-800F,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 4.5mm |
| Length | 10.3mm |
| Model | BT137B-800F,118 |
| Mount Type | Surface |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 71A |
| Maximum Gate Trigger Current Igt | 70mA |
| Maximum Holding Current Ih | 20mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- This TO-263 package TRIAC includes a gate trigger voltage of 1.5 V for precise activation.
- It supports a repetitive peak reverse voltage rating of 800 V suitable for demanding electrical conditions.
- The component operates efficiently with a maximum holding current of 20 mA.
- Designed for harsh environments with an operating temperature range from -40°C to 125°C.
- Offers a surge current rating of 71 A to withstand transient conditions.
- Features a height of 4.5 mm and length of 10.3 mm, facilitating compact circuit designs.
- Certified RoHS compliant ensuring environmentally friendly manufacturing standards.
- An ideal semiconductor for industrial, HVAC, manufacturing, and electrical power control applications.
Product Description
WeEn Semiconductors Co., Ltd BT137B-800F,118 is a high-performance TRIAC featuring 3 pins in a surface mount TO-263 package designed for AC power switching and control. Rated for an average on-state current of 8 A and a repetitive peak reverse voltage of 800 V, this TRIAC is optimized for efficient operation at elevated power levels. Its gate trigger voltage of 1.5 V ensures reliable and precise gate activation, making it suitable for various industrial and commercial applications.
The TRIAC offers a surge current rating of 71 A, providing robust tolerance against transient currents, which is critical in heavy electrical load switching and motor control scenarios. It is built to operate under a broad temperature range from -40°C to 125°C, allowing it to perform reliably in harsh environmental conditions.
The compact TO-263 package measures 4.5 mm in height and 10.3 mm in length, supporting space-efficient PCB layouts while maintaining electrical safety and durability. With a maximum holding current of 20 mA and a low peak on-state voltage of 1.65 V, the device ensures minimal power loss during conduction phases.
This model features a three-pin single configuration specifically designed for surface mounting applications, complying with RoHS standards for hazardous substance restrictions. It is widely used in industrial machines, HVAC systems, manufacturing processes, and electrical controls where bidirectional power control is essential.
This TRIAC has a maximum gate trigger current of 70 mA, providing reliable gate sensitivity. Repetitive peak off-state current is minimal at 0.5 mA to reduce leakage. It is not designed to meet automotive standards but excels in general electronic semiconductor applications.
Choosing the WeEn Semiconductors BT137B-800F,118 ensures dependable AC switching performance aligned with contemporary energy efficiency and environmental compliance standards. Explore a comprehensive suite of semiconductors and related electronic components in the semiconductor category at EnvMart.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This TRIAC has a rated average on-state current of 8 A.
The surge current rating for this TRIAC is 71 A, allowing it to withstand transient conditions.
The gate trigger voltage for this TRIAC is 1.5 V, ensuring precise activation.
The TO-263 package measures 4.5 mm in height and 10.3 mm in length.
The minimum operating temperature for this model is -40°C.
This TRIAC has a maximum holding current of 20 mA.
The repetitive peak reverse voltage rating for this TRIAC is 800 V.
The maximum gate trigger current for this TRIAC is 70 mA.
This model is designed for surface mounting applications.
The TRIAC is certified RoHS compliant, ensuring it meets hazardous substance restrictions.
This TRIAC is suitable for industrial machines, HVAC systems, manufacturing processes, and electrical controls.
