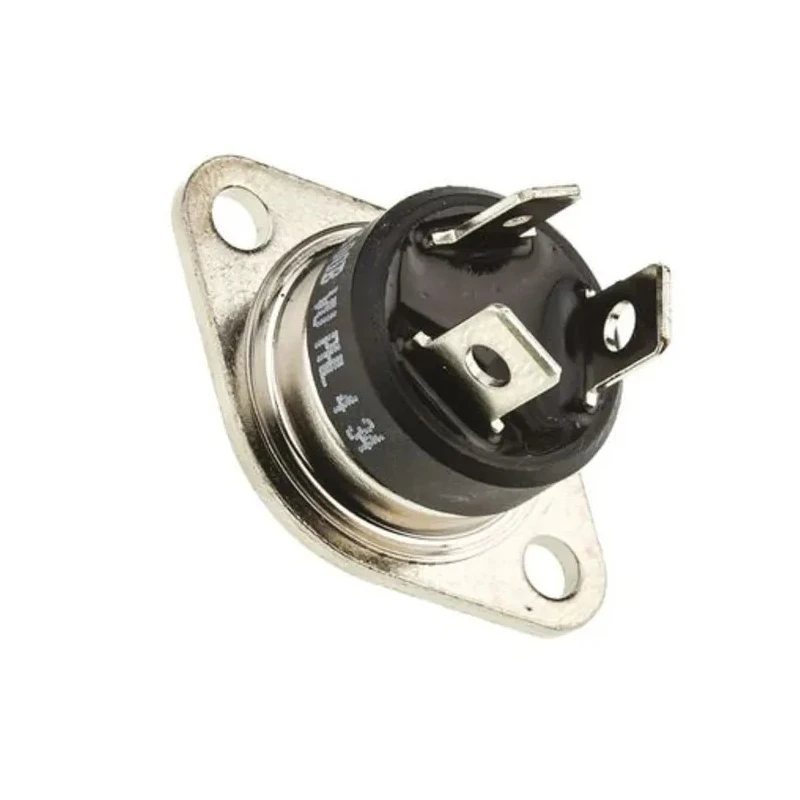

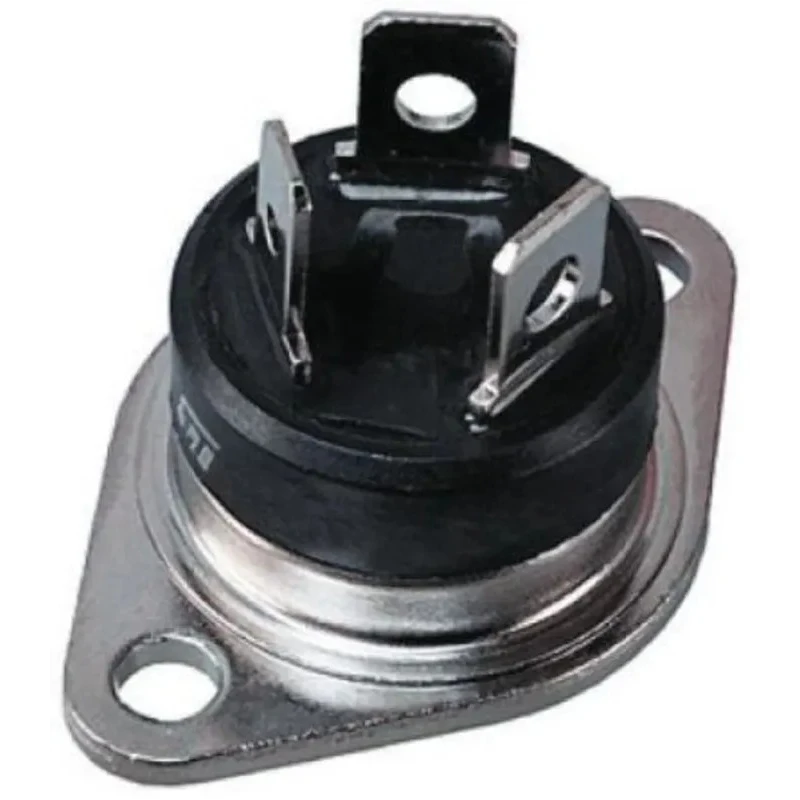

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA25-800BW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA25-800BW |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | RD-91 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current is 25A for effective load switching.
- Supports a repetitive peak reverse voltage of 800 V for high voltage applications.
- Maximum gate trigger current of 50 mA ensures responsive triggering.
- Surge current rating of up to 260 A provides high tolerance to transient loads.
- Operating temperature range from -40°C to 125°C suitable for demanding environments.
- Compliant with RoHS environmental standards for safe use.
- Compact dimensions of 10.4 mm length and 15.9 mm height make it easy to integrate.
- Package type RD-91 with 3-pin configuration for through-hole mounting.
Product Description
STMicroelectronics BTA25-800BW is a 3-pin TRIAC designed for efficient AC power control in electronic circuits. Featuring a through-hole mount and compact RD-91 package, this device is well-suited for industrial, electronics manufacturing, and power management applications.
It is rated for a 25A average on-state current and supports a repetitive peak reverse voltage of 800 V, making it ideal for high voltage switching tasks. The gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA provide precise control over switching events, ensuring reliable operation in demanding scenarios.
This TRIAC supports a surge current of 260 A, granting it robustness against transient electrical stresses. Its operational temperature range from -40°C to 125°C enables it to function reliably in harsh industrial and commercial environments.
The BTA25-800BW complies with RoHS standards, reflecting its environmentally friendly design. Its small dimensions (10.4 mm length and 15.9 mm height) combined with a 3-pin configuration allow easy mounting and integration into circuit boards.
Rated average on-state current of 25A. Repetitive peak reverse voltage of 800 V. Maximum gate trigger voltage 1.3 V with 50 mA max trigger current. Surge current rating of 260 A for transient tolerance. Operating temperature range of -40°C to 125°C.
RoHS compliant construction. Compact RD-91 package with through-hole mount type. Stable holding current of 75 mA and peak gate power dissipation of 1 W.
This TRIAC is widely applicable in industrial electronics, power control, HVAC systems, manufacturing processes, and general-purpose electronic circuits requiring controlled AC power switching.
Explore our extensive range of semiconductor components on EnvMart for all your industrial and electronic needs.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 25A, making it suitable for effective load switching.
It supports a repetitive peak reverse voltage of 800 V, which is ideal for high voltage applications.
The maximum gate trigger current for this TRIAC is 50 mA, ensuring responsive triggering.
The BTA25-800BW has a surge current rating of up to 260 A, providing high tolerance to transient loads.
This TRIAC operates within a temperature range of -40°C to 125°C, suitable for demanding environments.
The dimensions of this model are 10.4 mm in length and 15.9 mm in height, allowing for easy integration into circuits.
It comes in an RD-91 package type with a through-hole mounting configuration.
The maximum holding current for the BTA25-800BW is 75 mA.
Yes, it is compliant with RoHS environmental standards, indicating safe use.
The peak gate power dissipation for the BTA25-800BW is 1 W.
This TRIAC is widely applicable in industrial electronics, power control, HVAC systems, and general-purpose electronic circuits requiring controlled AC power switching.
This model has a 3-pin configuration, designed for through-hole mounting.
