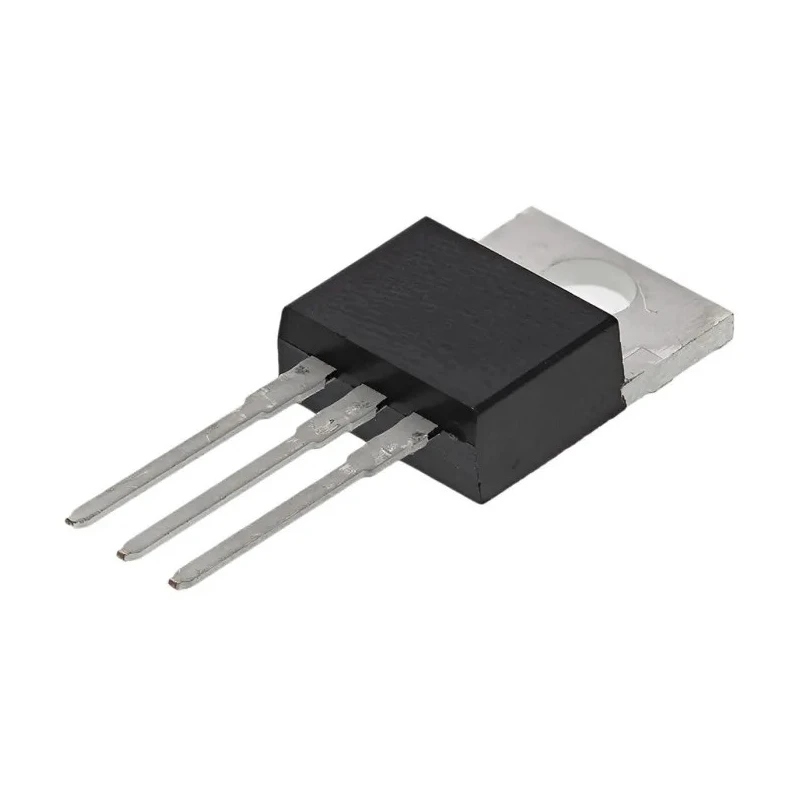

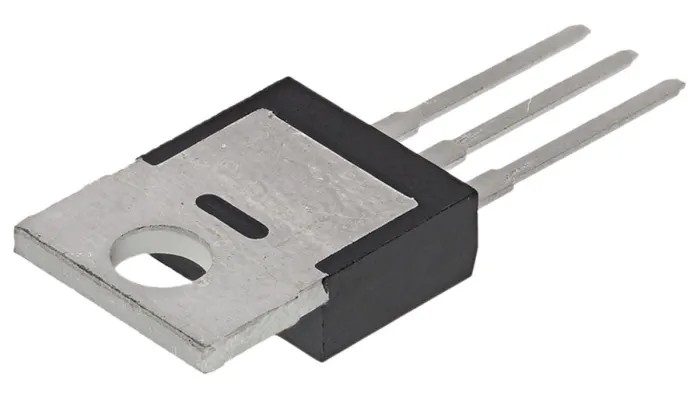

STMicroelectronics Through Hole 3-Pin TRIAC 800 V, Gate Trigger 1.3 V BTA12-800SWRG
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA12-800SWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 12A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 126A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 1mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 12A for reliable power handling.
- Compact TO-220 package suitable for through hole mounting.
- Low maximum gate trigger current of 10mA ensures efficient triggering.
- Maximum operating temperature up to 125°C for robust performance.
- Peak surge current rating of 126A to withstand transient events.
- Single configuration with 3 pins designed for straightforward integration.
- Wide operating temperature range from -40°C to 125°C.
- Peak on-state voltage of 1.55V to reduce power losses.
Product Description
STMicroelectronics BTA12-800SWRG is a high-performance TRIAC component designed for efficient AC power control in various industrial and consumer electronic applications. This through hole device features a TO-220 package mounting style with a 3-pin configuration for easy PCB integration.
The TRIAC supports a repetitive peak reverse voltage of 800 V and an average on-state current rated at 12A, making it suitable for switching and control of AC loads up to moderate power levels. Its gate trigger voltage is low, rated at 1.3 V with a maximum gate trigger current of 10mA, allowing for minimal drive power requirements.
Designed for durability, the device operates reliably across a broad temperature range from -40°C to 125°C. It withstands surge currents up to 126A, providing robustness against transient conditions often seen in industrial environments.
The unit's low peak on-state voltage of 1.55V helps minimize conduction losses, improving overall energy efficiency. Its compact height of 15.9mm and length of 10.4mm contribute to versatility in circuit board layouts.
This TRIAC is ideal for industrial automation, HVAC controls, motor controls, lighting dimmers, and other power control applications where reliable switching is crucial. The product adheres to no specific formal approvals or automotive standards, emphasizing broad utility. It is manufactured in China under STMicroelectronics quality management processes.
Rated average on-state current of 12A for reliable power handling. Compact TO-220 package for effective thermal management. Low maximum gate trigger current of 10mA for energy-efficient triggering. Operates up to a maximum temperature of 125°C ensuring durability.
Surge current rating of 126A withstands transient power spikes. Single 3-pin configuration simplifies circuit design and mounting. Wide operating temperature range from -40°C to 125°C for varied environments. Low peak on-state voltage of 1.55V reduces conduction losses.
Manufactured in China ensuring consistent quality and supply. Explore the Electronics & Electricals category at EnvMart for more semiconductor solutions and power control components from STMicroelectronics and other leading manufacturers.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 12A, suitable for reliable power handling in various applications.
This TRIAC can operate at a maximum temperature of 125°C, ensuring robust performance under high-temperature conditions.
The peak surge current rating is 126A, allowing it to withstand transient events effectively.
The maximum gate trigger voltage is 1.3V with a maximum gate trigger current of 10mA, facilitating efficient triggering.
This model has a height of 15.9mm and a length of 10.4mm, making it compact for various circuit board layouts.
It features a through hole mounting style, which is suitable for easy integration into PCBs.
The device is packaged in a TO-220 configuration, which is effective for thermal management.
The minimum operating temperature for this TRIAC is -40°C, allowing it to function in a wide range of environments.
The peak on-state voltage is 1.55V, which helps to reduce power losses during operation.
This model is suitable for industrial automation, HVAC controls, motor controls, and lighting dimmers, among other power control applications.
This TRIAC has a single configuration with 3 pins, designed for straightforward integration into circuits.
It is manufactured in China, adhering to STMicroelectronics' quality management processes.
