Broadcom 8 Dot Matrix LED Display Red 0.13mcd 3.7mm HCMS-3912

Free Delivery in India | Lowest Global Shipping Charges

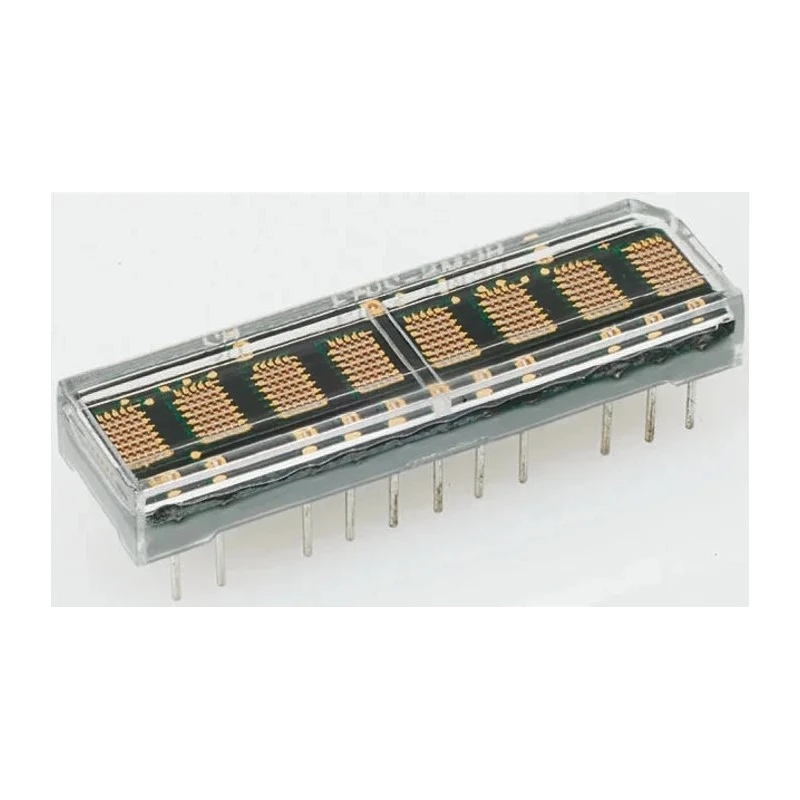

Broadcom 8 Dot Matrix LED Display Red 0.13mcd 3.7mm HCMS-3912

Name: Broadcom 8 Dot Matrix LED Display Red 0.13mcd 3.7mm HCMS-3912
Brand: Broadcom
SKU: 191392
Price: 83.46 USD
Availability: InStock



Category LED Displays Brand Broadcom Condition New

Specifications

Country of Origin	India
Display Type	Dot Matrix
Brand	Broadcom
Model	HCMS-3912
Mount Type	Through Hole
Series	HCMS-39xx
Character height	3.7mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	5
External Width	35.6mm
External Depth	5.1mm
External Height	10.2mm
Luminous Intensity	0.13mcd
Standards/Approvals	Class 1 ESD (0-1999V)
LED Colour	Red
Dominant Wavelength	628nm
Colour of Face	Black
Forward Voltage	5.5V
Forward Current	15.9mA
Number of Characters	8
Character Width	2.1mm

Key Features

The display features 8 characters in a dot matrix configuration for clear alphanumeric output.
Red LED color with a dominant wavelength of 628nm ensures vivid display visibility.
Character height of 3.7 mm and width of 2.1 mm offer precise readability in compact spaces.
Through-hole mount type supports easy installation in various electronic assemblies.
Operates reliably between temperatures of -40°C to 85°C for industrial robustness.
Low forward voltage of 5.5V and forward current of 15.9mA ensure energy-efficient operation.
Black face color provides good contrast for the illuminated characters.
Complies with Class 1 ESD standards protecting against electrostatic damage.

Product Description

Broadcom HCMS-3912 is a high-quality 8 dot matrix LED display module that provides sharp red alphanumeric characters with a luminous intensity of 0.13mcd.

This dot matrix display offers 8 characters in a compact, robust package suitable for various electronic component applications. Featuring a 3.7 mm character height and 2.1 mm character width, it ensures clear and precise display output.

The module uses a through-hole mounting type, making it convenient for integration into electronic devices and equipment. It operates within a wide temperature range from -40°C to 85°C, ensuring stable performance in industrial and environmental extremes.

Its low forward voltage of 5.5V and forward current of 15.9mA deliver efficient power usage while maintaining display brightness. The black face color enhances contrast, improving readability under various lighting conditions.

Designed to meet Class 1 ESD protection standards, the display is safeguarded against electrostatic discharge up to 1999V, increasing device longevity. The display provides an 8 character alphanumeric interface using the HCMS-39xx series technology.

Its serial bus interface and +3.3V supply voltage enable compatibility with modern electronic control systems. The compact external size of 35.6 mm width, 10.2 mm height, and 5.1 mm depth allows for integration in space-constrained applications.

The product is ideal for industrial automation, instrumentation displays, consumer electronics, and communication devices requiring compact, reliable visual indicators. Set contains one Broadcom HCMS-3912 8 dot matrix LED display for electronic assembly use.
