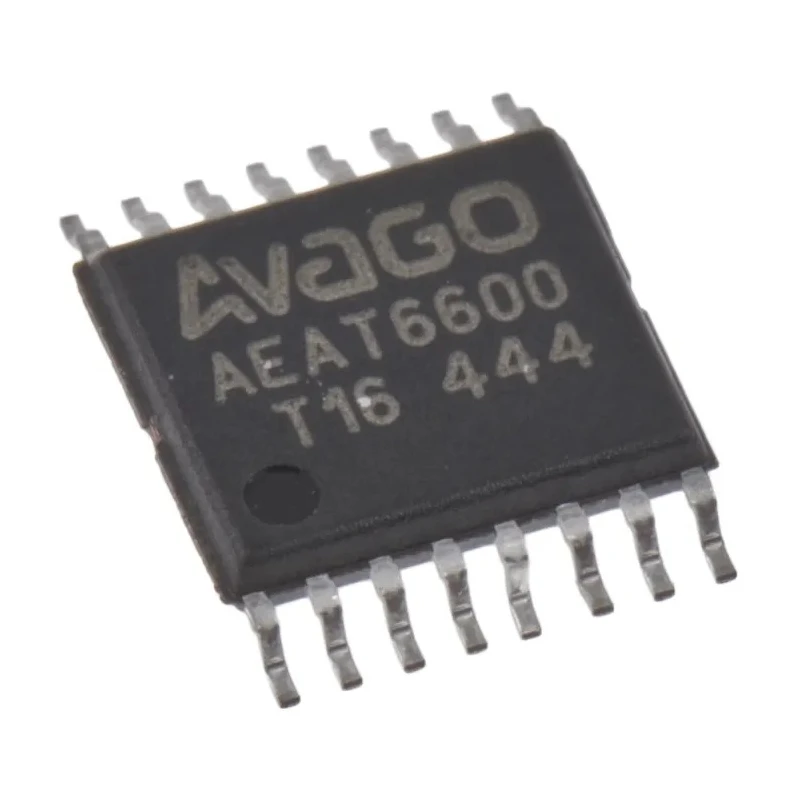

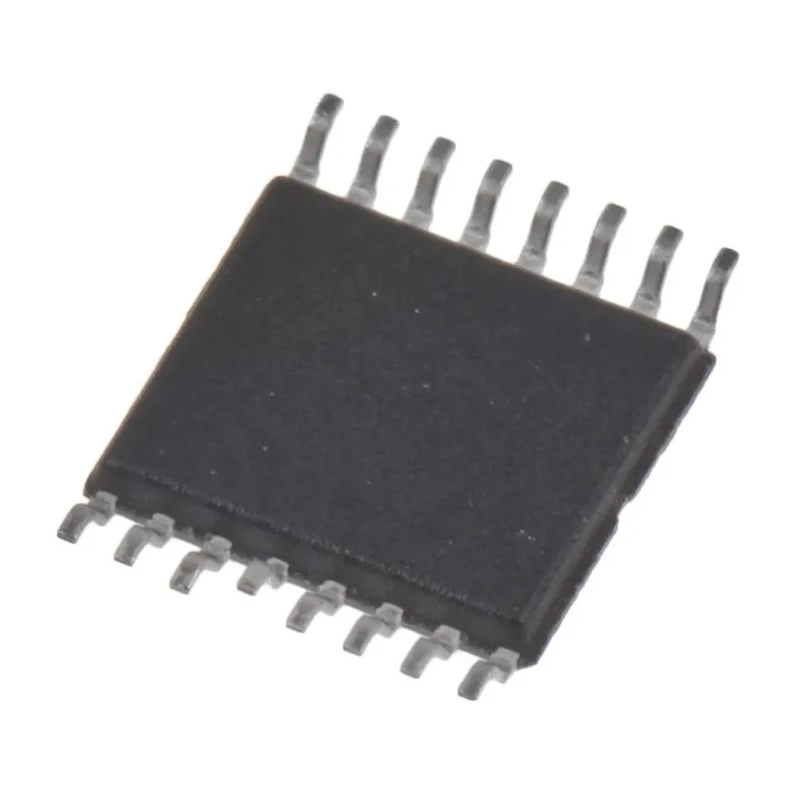

Broadcom 1 Axis Angular Magnetic Encoder Motion Sensor Module 3 V to 5.5 V SSI, PWM, UVW Interface TSSOP-16 AEAT-6600-T16

Broadcom AEAT-6600-T16 is a 1 Axis Angular Magnetic Encoder Motion Sensor Module designed for high-precision angular measurements in industrial and automation environments. Operating on a supply voltage between 3 V and 5.5 V, this sensor utilizes advanced CMOS combined with Hall Effect technology to deliver accurate position sensing with minimal power consumption.

The device comes in a compact TSSOP-16 16-pin package measuring 6.4mm in length and 4.4mm in width, supporting SSI, PWM, and UVW interface types. Its maximum frequency response of 512kHz ensures rapid signal processing suitable for dynamic applications.

Equipped with incremental output modes including ABI, UVW, and PWM, the module offers flexibility for various control and feedback systems. The sensor features an internal voltage regulator and programmable features such as zero position and direction adjustment, enabling customization for specific applications.

With an operating temperature range from -40°C up to 125°C, the AEAT-6600-T16 module is robust for demanding industrial conditions. It consumes a low supply current of 21mA and provides quick response times of 11ms for effective real-time control.

Typical applications include 3-phase commutation for brushless DC motors, resolver and potentiometer replacements, industrial automation, robotics, and other motion control systems requiring precise, contactless angular position sensing.

This module integrates CMOS and Hall Effect technology for accurate magnetic encoding. Supports incremental output modes including ABI, UVW, and PWM. Features a 16-pin TSSOP package with compact dimensions 6.4mm length by 4.4mm width.

Operates reliably across a wide temperature range from -40°C to 125°C. Maximum frequency response up to 512kHz allows fast angular position detection. Low supply current consumption at 21mA with an 11ms response time for efficient operation.

Allows programmable zero position, direction, and index pulse width for flexible use. Designed for industrial automation, robotics, brushless DC motor commutation, and resolver replacement applications. Explore more precision Motion Sensor modules at EnvMart for industrial and laboratory automation requirements.
