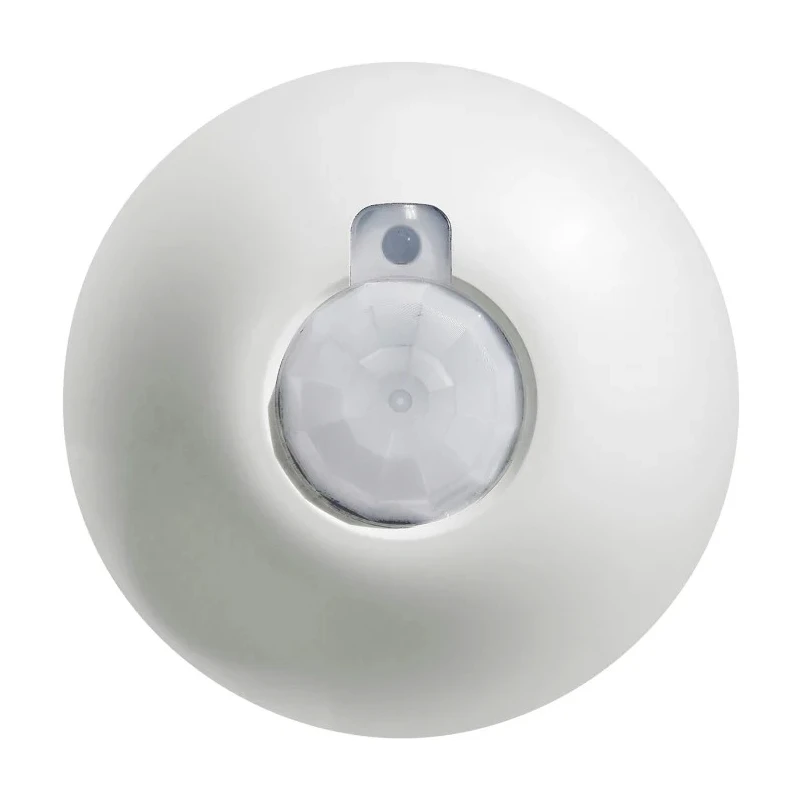

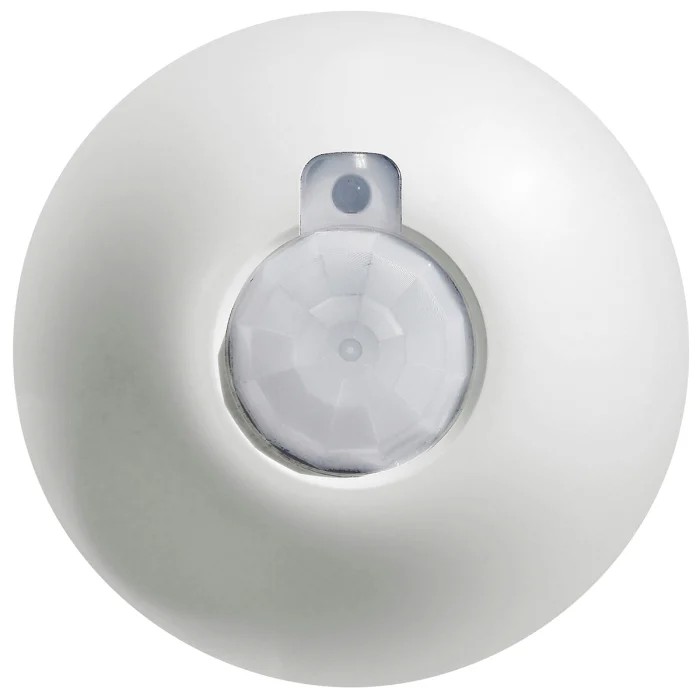

Legrand Motion Detector PIR Sensor with 8 Meter Sensing Radius 240V AC MOSAIC Series 0 488 07

Legrand 0 488 07 Motion Detector PIR Sensor is a high-performance passive infrared sensor designed for automated lighting management in commercial and industrial environments. Operating on 240V AC, this ECO2 lighting management device actively detects presence and monitors natural light levels, enabling energy-efficient lighting control that conserves power when ambient lighting is sufficient.

The sensor features an 8 meter detection radius and a built-in ambient light sensor with adjustable thresholds ranging from 5 to 1275 lux, allowing precise customization to varied lighting conditions. Its compact dimensions (102 mm diameter, 50 mm width, 52 mm height and depth) facilitate seamless ceiling installation directly using the included mounting claws, recommended at an installation height of 2.5 meters.

Durability is ensured with an IP41 ingress protection rating and tamper-resistant design, suitable for public and high-traffic areas such as lobbies, passageways, escalators, and staircases. It effectively automates lighting by switching on or off based on occupancy and ambient light presence, optimizing energy consumption and reducing operational costs.

This MOSAIC series sensor also features a standby power consumption of only 0.4 watts, promoting eco-friendly operation. The optimum distance between adjacent sensors is 6 meters to avoid interference while maintaining comprehensive coverage.

Manufactured in China, this product meets quality expectations for commercial sensor applications. It integrates easily with lighting systems requiring automated presence and daylight detection, supporting sustainable building management and safety compliance.

The sensor continuously monitors presence and ambient light for automated lighting control. Adjustable light level threshold from 5 to 1275 lux for versatile environments. Designed for ceiling mounting at recommended height of 2.5 meters using included mounting claws.

Equipped with tamper resistance and IP41 ingress protection rating for durability. Operates on 240V AC supply voltage with low standby power consumption of 0.4 watts. Optimal sensor spacing is 6 meters to ensure effective coverage without overlap.

Compact dimensions: diameter 102 mm, width 50 mm, height and depth 52 mm. Part of the MOSAIC series for standardized integration in lighting systems. Manufactured in China ensuring consistent quality standards. Ideal for applications in lobbies, passages, escalators, and stairways with natural light presence.
