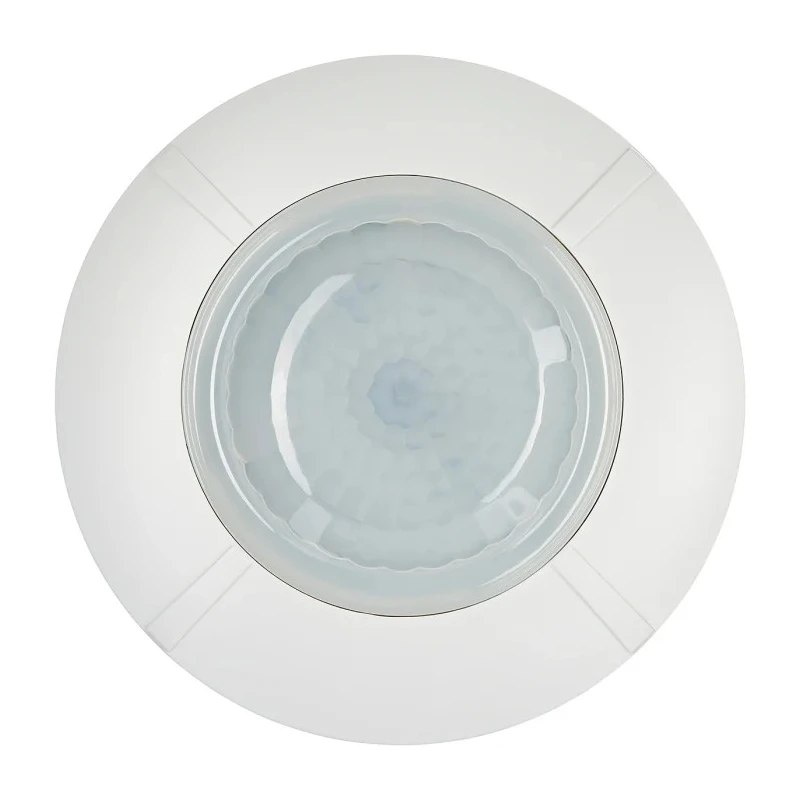

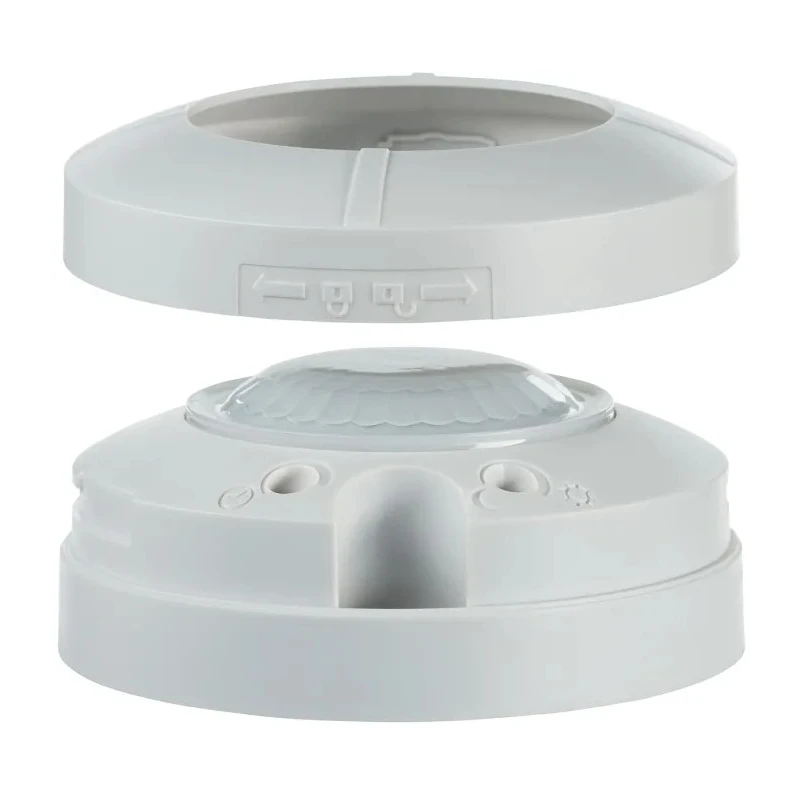

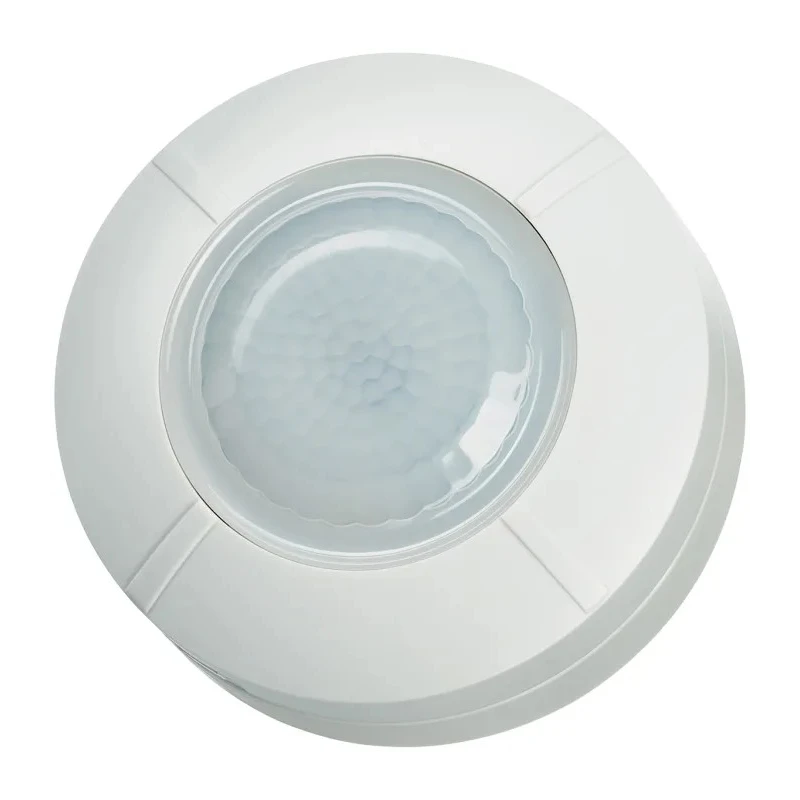

Timeguard Presence Detector PIR Sensor 230V AC, 8m Sensor Radius, IP44 SLW360N

Free Delivery in India | Lowest Global Shipping Charges

Timeguard Presence Detector PIR Sensor 230V AC, 8m Sensor Radius, IP44 SLW360N

Name: Timeguard Presence Detector PIR Sensor 230V AC, 8m Sensor Radius, IP44 SLW360N
Brand: Timeguard
SKU: 158916



Category Motion Sensor Brand Timeguard Condition New

Specifications

Country of Origin	China
Diameter	105mm
Brand	Timeguard
Height	45mm
Model	SLW360N
Depth	45mm
IP Rating	IP44
Width	105mm
Mount Type	Surface
Detector Type	Presence Detector
Series	SLW360N
Supply Voltage	230V ac
Sensor Radius	8m
Adjustable time setting	3 seconds - 18 minutes

Key Features

The slimline sensor head provides a 360° area of detection for presence.
Adjustable time setting ranges from 3 seconds to 18 minutes for versatility.
Manual override option is available for user control.
The sensor supports total PIR switching with 2000W halogen, 500W fluorescent, and 250W LED loads.
Surface mount type with compact dimensions for easy installation.
IP44 rating ensures protection against water splashes and dust.
Ideal for building automation, security, and lighting control applications.

Product Description

Timeguard SLW360N Presence Detector PIR Sensor is designed for enhanced coverage and control in indoor environments. Featuring a slimline sensor head, it offers a 360° detection area with an 8 meter sensor radius and a 230V AC supply voltage. The sensor detects presence and motion efficiently within specified ranges, making it ideal for automation and security applications.

The device includes adjustable settings such as time delay ranging from 3 seconds up to 18 minutes, and a light level sensitivity range between 1 to 1000 LUX. A manual override function provides additional flexibility for custom operations. Its compact dimensions of 105mm diameter, 45mm height, width, and depth, along with surface mount design, enable convenient installation on walls or ceilings.

The SLW360N supports total PIR switching with loads of 2000W for halogen lamps, 500W for fluorescent lights, and 250W for LED lighting, as well as 75W fan control. Its IP44 rating offers protection against water splashes and dust ingress, ensuring reliable performance in various indoor settings.

Applications include security systems, lighting control in commercial and residential buildings, HVAC automation, and industrial presence monitoring. This product is manufactured in China and complies with standard operational requirements, though no additional certifications are indicated.

The slimline sensor head offers a 360° detection area with 8 meter radius. Adjustable time delay from 3 seconds to 18 minutes for tailored control. Manual override allows user-intervention for customized operation. Supports total PIR switching of high load lamps and fans.

Surface mount design simplifies installation in various indoor locations. IP44 rating provides dust and splash water protection. Compact dimensions ensure discreet placement on walls or ceilings. Explore more from the Sensors category at EnvMart for advanced detection and control solutions.
