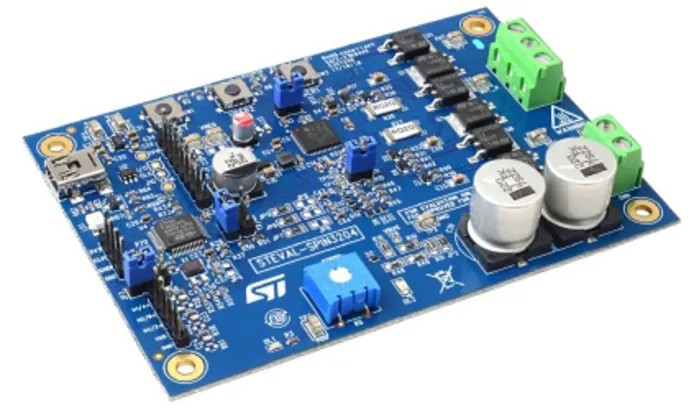

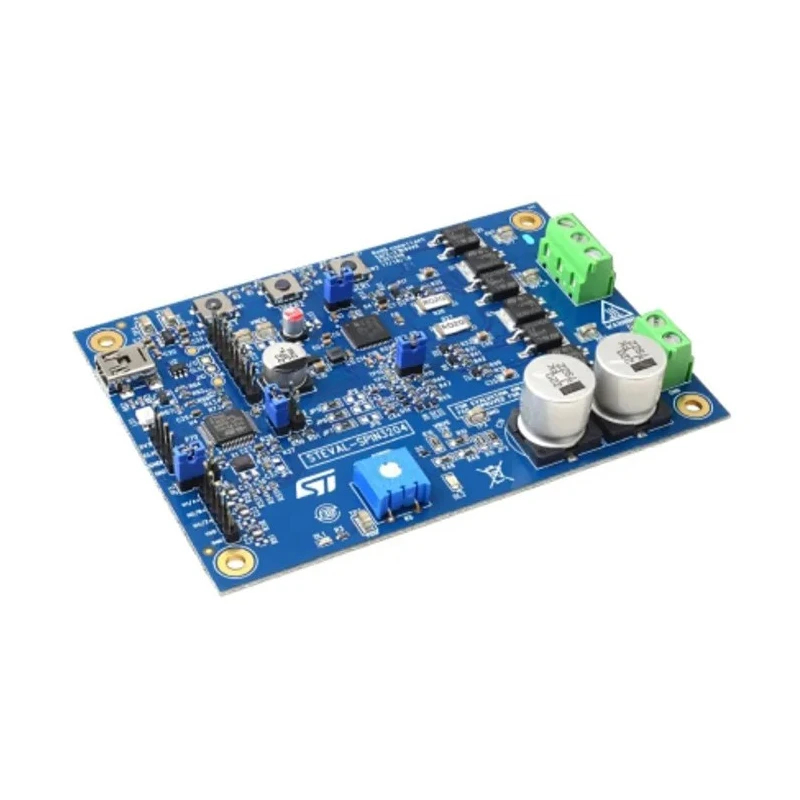

STMicroelectronics Six-Step Brushless Motor Driver Evaluation Board STEVAL-SPIN3204
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-SPIN3204 |
| Kit Classification | Evaluation Board |
| Featured Device | STSPIN32F0B |
| Kit Name | Six-Step Brushless Motor Driver |
Key Features
- Based on STSPIN32F0B 3-phase brushless DC motor controller with triple half-bridge gate driver.
- Features single shunt resistor current sensing topology for precise current measurement.
- Includes STM32F031C6 microcontroller supporting 6-step control and field oriented control algorithms.
- Programmable overcurrent protection enhances system safety and reliability.
- Flexible evaluation platform allows toggling between sensor and sensorless position feedback.
- USB interface enables firmware updates and customizable motor control programming.
- Ideal for development in power tools, home appliances, fans, and pump motor control designs.
Product Description
The STMicroelectronics STEVAL-SPIN3204 is a high-performance six-step brushless motor driver evaluation board designed for testing and developing control algorithms in brushless DC motor (BLDC) applications. It features the STSPIN32F0B system-in-package that integrates a triple half-bridge gate driver and single shunt resistor current sensing, enabling precise and efficient motor current measurement.
The embedded STM32F031C6 microcontroller supports multiple advanced motor control implementations including six-step commutation and field oriented control (FOC). Firmware can be conveniently loaded via the USB interface, allowing developers to customize motor algorithms for optimal performance in diverse applications.
This robust evaluation board incorporates programmable overcurrent protection, ensuring enhanced safety during motor operation. The flexible platform supports both external sensor and sensorless feedback methods, providing versatility for design and testing.
STEVAL-SPIN3204 is well suited for applications in industrial power tools, household appliances, ventilation fans, water pumps, and other domains requiring reliable brushless motor control. The board facilitates rapid prototyping and development of efficient motor drive systems.
Based on STSPIN32F0B 3-phase BLDC controller with triple half-bridge driver. Equipped with STM32F031C6 MCU for flexible motor control firmware deployment. Single shunt resistor current sensing topology for accurate current measurement.
Supports 6-step commutation and field oriented control algorithms. USB port for easy firmware flash memory programming. Programmable overcurrent protection for enhanced safety. Flexible motor position feedback modes: external sensor or sensorless.
This STEVAL-SPIN3204 evaluation kit is an essential development tool for power management engineers seeking to implement advanced motor control solutions. It provides a reliable and adaptable platform for designing robust and efficient BLDC motor systems suitable for various industrial, commercial, and consumer applications.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STEVAL-SPIN3204 is designed as a six-step brushless motor driver evaluation board for testing and developing control algorithms in brushless DC motor applications.
It features the STM32F031C6 microcontroller, which supports multiple advanced motor control implementations including six-step commutation and field oriented control.
This model employs a single shunt resistor current sensing topology, enabling precise and efficient motor current measurement.
The evaluation board includes a USB interface that allows for easy firmware updates and customizable motor control programming.
It incorporates programmable overcurrent protection, which enhances safety during motor operation.
Yes, it supports flexible motor position feedback methods, allowing toggling between external sensor and sensorless feedback modes.
The STEVAL-SPIN3204 is well suited for applications in industrial power tools, household appliances, ventilation fans, and water pumps.
It supports six-step commutation and field oriented control (FOC) algorithms for advanced motor control.
The country of origin for this evaluation board is Italy.
The featured device is the STSPIN32F0B, which integrates a triple half-bridge gate driver.
It is classified as an evaluation board, specifically designed for brushless motor driver applications.
It serves as a flexible evaluation platform that allows developers to rapidly prototype and develop efficient motor drive systems.
