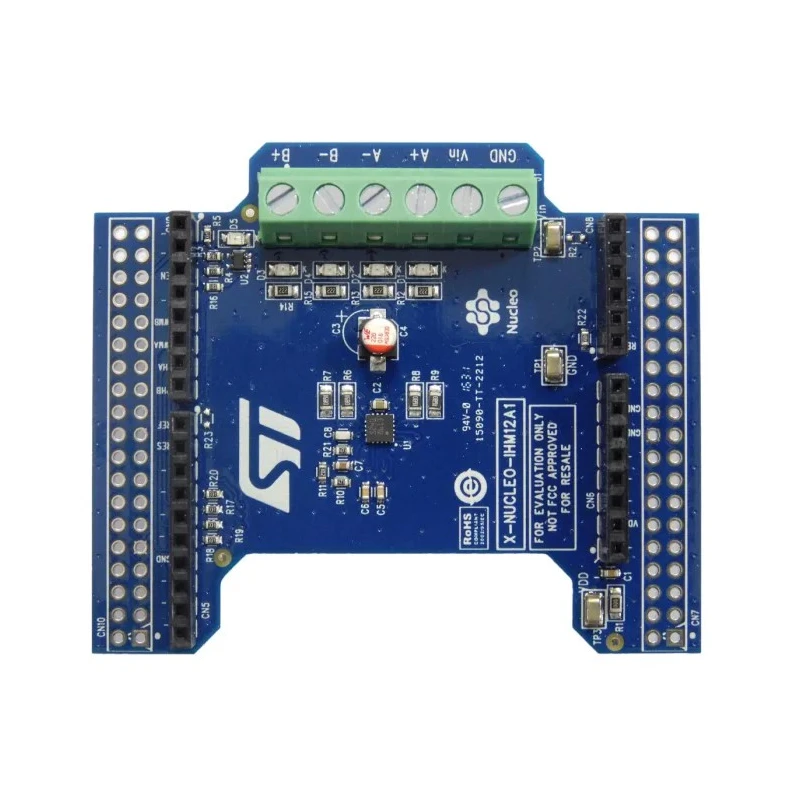

STMicroelectronics Motor Configuration Dual DC Motor Driver Evaluation Board X-NUCLEO-IHM12A1 1.8-10 V 1.3 Arms STSPIN240

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Motor Configuration Dual DC Motor Driver Evaluation Board X-NUCLEO-IHM12A1 1.8-10 V 1.3 Arms STSPIN240

Name: STMicroelectronics Motor Configuration Dual DC Motor Driver Evaluation Board X-NUCLEO-IHM12A1 1.8-10 V 1.3 Arms STSPIN240
Brand: STMicroelectronics
SKU: 209588
Price: 21.64 USD
Availability: InStock



Category Motor Driver Boards Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	X-NUCLEO-IHM12A1
For Use With	STM32 Nucleo
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	STSPIN240
Kit Name	Motor Configuration

Key Features

The board supports operating voltage range from 1.8 to 10 volts DC.
Each motor channel can deliver an output current of 1.3 Arms.
Features current control with adjustable off-time for efficient operation.
The device can be forced into a zero-consumption standby state to conserve battery life.
Compliance with RoHS environmental standards ensures safe and eco-friendly use.
Suitable for battery-powered motor control applications and robotics development.
Compact evaluation board for rapid prototyping and testing of DC motor drivers.
Compatible with STM32 Nucleo development boards to enable flexible motor control solutions.

Product Description

STMicroelectronics X-NUCLEO-IHM12A1 is a dual low-voltage brushed DC motor driver expansion board based on the STSPIN240 quad half-bridge chip. This evaluation board is designed for use with STM32 Nucleo kits to facilitate motor control development in various applications.

The board operates within a voltage range of 1.8 V to 10 V DC, allowing flexible power supply options especially suited for battery-powered environments. It delivers a continuous output current of up to 1.3 Arms per motor channel, supporting efficient driving of dual DC motors.

Features include current control with adjustable off-time, which improves power management and motor performance. The device also supports a zero-consumption standby mode which significantly extends battery life when the motors are not active.

This evaluation board complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances. Its compact form factor and compatibility with STM32 Nucleo platforms make it ideal for embedded system designers working in robotics, automation, and power management development.

The X-NUCLEO-IHM12A1 is widely used in electronics, robotics, and embedded industrial applications requiring precise and efficient motor control. Developers can quickly prototype and test motor configurations using this versatile board.

The board features dual low-voltage brushed DC motor driver capability for STM32 Nucleo systems. Operating voltage range from 1.8 to 10 volts DC supports diverse power setups. Output current rating of 1.3 Arms per motor channel ensures robust motor driving.

Includes current control with adjustable off-time to optimize power and performance. Zero-consumption standby mode extends battery-powered device runtime. Compliance with RoHS standards guarantees environmental safety. Compact evaluation board suitable for robotics and power management development.

Compatible with STSPIN240 quad half-bridge chip for reliable motor control. Explore a wide range of Motor Driver Boards and related development tools at EnvMart to find solutions tailored to your industrial and electronics project requirements.
