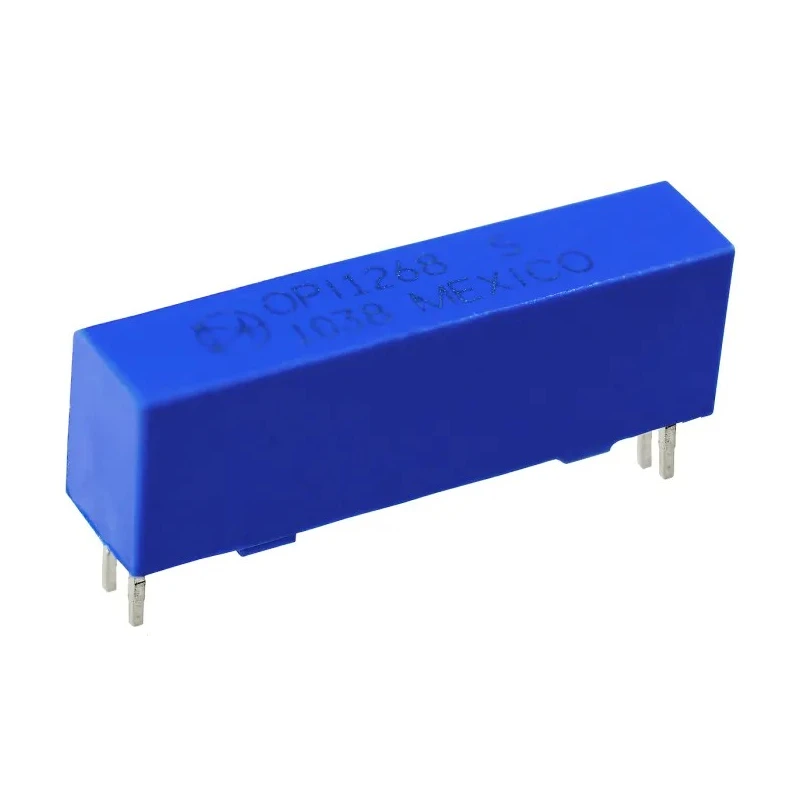

Optek Digital Isolator 20 kV DC 7V 5-Pin Through Hole OPI1268S

Optek OPI1268S Digital Isolator is a high-performance opto-isolator IC designed to provide electrical isolation and high-speed digital signal transmission. The device incorporates an infrared LED emitting at 850 nm, optically coupled to the output optical integrated circuit. This configuration enables 20 kV DC voltage isolation between input and output circuits, safeguarding sensitive electronic components from voltage spikes and noise interference.

The OPI1268S device is engineered for through-hole mounting and operates at a supply voltage of 7V, maintaining low power dissipation at 100 mW. It supports a maximum forward voltage of 1.8V and input current up to 30mA, with a rapid propagation delay time of 100ns, making it suitable for high-speed digital applications.

Its operational temperature range from -50°C to 100°C ensures reliable performance in harsh environments. The compact dimensions - length 27.94mm, depth 8.89mm, and width 6.35mm - allow space-efficient PCB design.

Common industrial and commercial use cases include transportation systems, PCB power management, hybrid vehicle electronics, medical instrumentation, and various control systems requiring robust electrical isolation and signal integrity.

Provides DC and AC voltage isolation for secure device operation. Includes an IR LED and optical output IC for data transmission. Supports wide operating temperature and low power dissipation. Compact, through-hole 5-pin package for versatile applications.

Ensures high-speed signal transmission with minimal delay. Ideal for industrial, automotive, medical, and power control applications. Manufactured in Mexico with high-quality standards.

The OPI1268S is part of Optek's OPI series, known for reliability and precision. EnvMart offers this device for integration into critical electronic isolation and signal interfacing applications requiring robust protection and performance.
