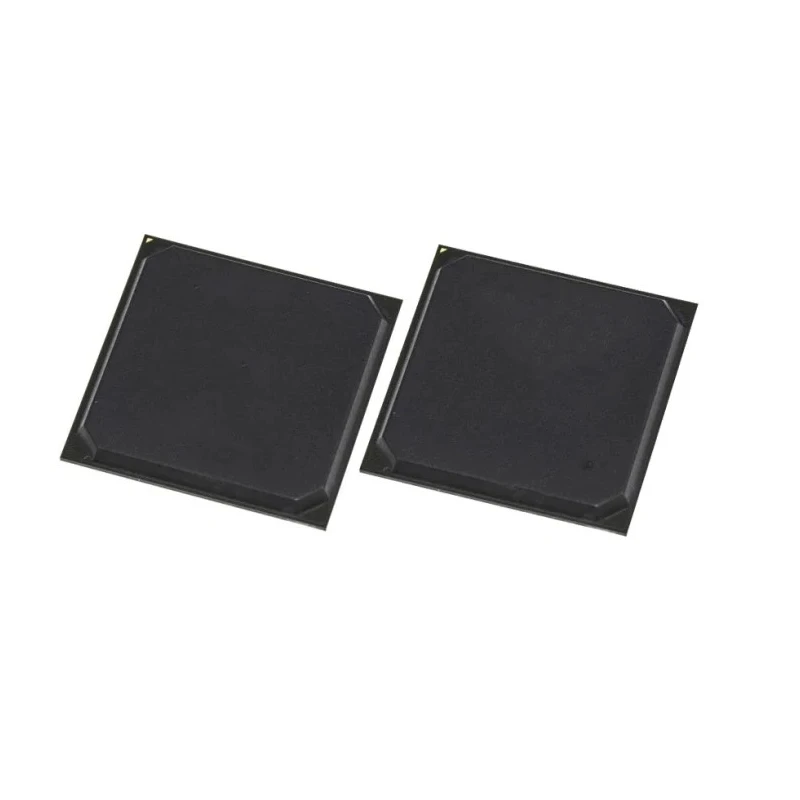

Microchip 16-Channel Push Pull Buffer 105-Ball 9 x 9 mm TFBGA HV53001-E/KWX

Free Delivery in India | Lowest Global Shipping Charges

Microchip 16-Channel Push Pull Buffer 105-Ball 9 x 9 mm TFBGA HV53001-E/KWX

Name: Microchip 16-Channel Push Pull Buffer 105-Ball 9 x 9 mm TFBGA HV53001-E/KWX
Brand: Microchip
SKU: 178501
Price: 17.14 USD
Availability: InStock



Category Buffers Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Model	HV53001-E/KWX
Output type	Push Pull
Input Type	Power Down High Impedance
Maximum Operating Temperature	175°C
Package Type	105-Ball 9 x 9 mm TFBGA
Minimum Operating Temperature	-40°C
Number Of Channels	16
Standards/Approvals	RoHS
Maximum Supply Voltage	5.5V
Logic Function	Driver
Minimum Supply Voltage	2.7V

Key Features

The device provides 16 push-pull output channels for efficient signal driving.
Features a power-down high impedance input type to minimize power consumption.
Operates within supply voltages ranging from 2.7V to 5.5V ensuring versatile use.
Supports a wide operating temperature range from -40°C to 175°C for industrial reliability.
Integrated DC/DC boost controller with power MOSFET enhances voltage regulation.
Includes SPI interface with Quad-Latch architecture for precise channel control.
Equipped with current sensor output and power-on reset functionality for safety and monitoring.
Complies with RoHS standards assuring environmental safety.

Product Description

Microchip HV53001-E/KWX is a 16-channel push-pull buffer designed as an integrated driver solution tailored for demanding industrial and electronic applications. Packaged in a compact 105-ball 9 x 9 mm TFBGA, it features three functional blocks: a high voltage driver, SPI interface with Quad-Latch architecture, and a DC/DC boost controller coupled with a power MOSFET, supporting supply voltages from 2.7V to 5.5V.

This device ensures efficient control of multiple outputs with push-pull architecture accompanied by Return-To-Zero and high impedance functions to optimize power usage and signal integrity. Its current sensor output allows real-time monitoring, while the power-on reset ensures safe startup states.

Engineered to operate in extreme temperature ranges from -40°C to 175°C, it meets rigorous industrial standards and is RoHS compliant, making it suitable for diverse applications including industrial controllers, automotive electronics, and communications equipment.

The compact TFBGA packaging facilitates high-density PCB layouts vital for modern electronic designs. The integrated SPI interface enables precise and flexible control mechanisms, enhancing performance in multi-channel driver applications.

The device provides 16 push-pull output channels for efficient signal driving. Features a power-down high impedance input type to minimize power consumption. Operates within supply voltages ranging from 2.7V to 5.5V ensuring versatile use.

Supports a wide operating temperature range from -40°C to 175°C for industrial reliability. Integrated DC/DC boost controller with power MOSFET enhances voltage regulation. Includes SPI interface with Quad-Latch architecture for precise channel control.

Equipped with current sensor output and power-on reset functionality for safety and monitoring. Complies with RoHS standards assuring environmental safety. Compact 105-ball 9 x 9 mm TFBGA package optimizes PCB space usage.

This 16-channel buffer is essential for designing high-performance electronic circuits in industrial, automotive, and communication sectors. Explore comprehensive Microchip product ranges on EnvMart for reliable semiconductor solutions.
