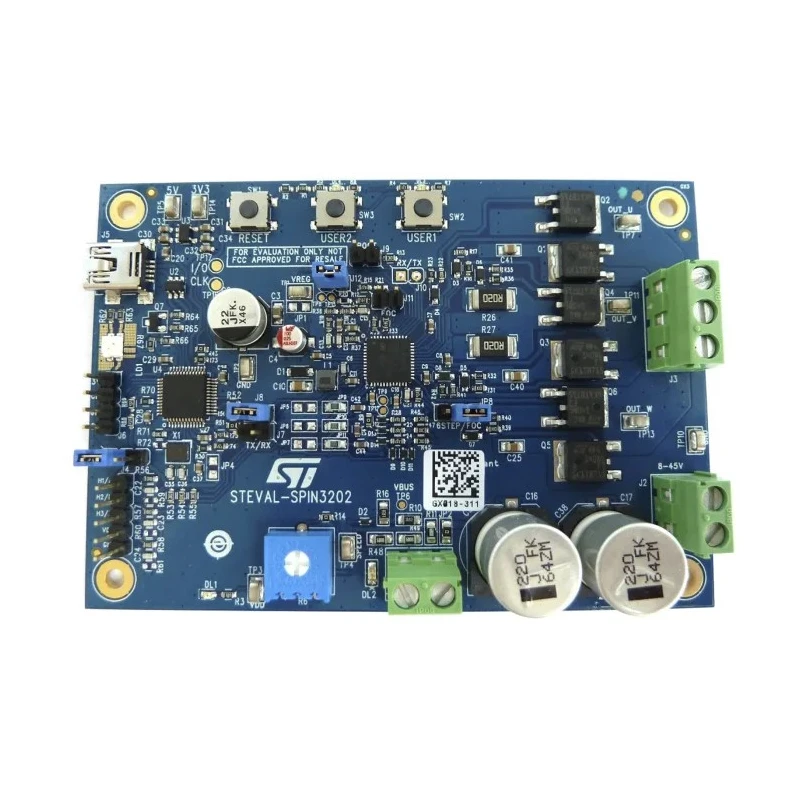

STMicroelectronics STSPIN32F0A Advanced 3-Phase BLDC Driver Brushless DC Motor Evaluation Board STEVAL-SPIN3202

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics STSPIN32F0A Advanced 3-Phase BLDC Driver Brushless DC Motor Evaluation Board STEVAL-SPIN3202

Name: STMicroelectronics STSPIN32F0A Advanced 3-Phase BLDC Driver Brushless DC Motor Evaluation Board STEVAL-SPIN3202
Brand: STMicroelectronics
SKU: 149098
Price: 80.07 USD
Availability: InStock



Category Motor Driver Boards Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STEVAL-SPIN3202
For Use With	STM32 PMSM FOC
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	STEVAL-SPIN3202
Kit Name	STSPIN32F0A Advanced 3-Phase BLDC Driver

Key Features

Supports input voltage range from 7 V to 45 V.
Delivers output current up to 15 Arms for powerful motor driving.
Features embedded 3.3 V buck and 12 V LDO regulators for efficient power management.
Enables sensored or sensorless vector control with FOC and six-step algorithms.
Includes single shunt current sensing and supports digital Hall sensors and encoder inputs.
Fully compatible with STM32 PMSM FOC software development kit.
Built-in overcurrent comparator and bus voltage sensing for protection and performance.
Easy user interface with buttons, trimmer, and STM32 FW boot loader support.

Product Description

STMicroelectronics STEVAL-SPIN3202 is an advanced 3-phase brushless DC motor driver evaluation board designed for efficient low voltage motor driving applications. It is based on the STSPIN32F0A integrated circuit and high-efficiency STD140N6F7 power MOSFETs, delivering robust performance for BLDC motors.

The board supports input voltage from 7 V up to 45 V and provides output currents up to 15 Arms, making it suitable for a wide range of industrial and robotic motor control tasks. Power management is enhanced by embedded 3.3 V buck and 12 V LDO regulators ensuring stable operation.

This evaluation module supports both sensored and sensorless vector control techniques, including field-oriented control (FOC) and six-step algorithms with single shunt current sensing capabilities. Inputs for digital Hall sensors and encoders enable precise motor position feedback.

Additional features include an overcurrent comparator and bus voltage sensing for reliable system protection. The board fully integrates with the STM32 PMSM FOC software development kit, facilitating streamlined firmware development and deployment.

An easy-to-use interface with buttons and a trimmer allows for simple adjustments and fine-tuning during evaluation and testing. The STM32 firmware boot loader support ensures convenient firmware updates.

Supports input voltage range from 7 V to 45 V. Output current capacity up to 15 Arms. Embedded 3.3 V buck regulator and 12 V LDO regulator. Single shunt current sensing for accurate control. Compatibility with STM32 PMSM FOC software development kit.

Sensor inputs for digital Hall sensors and encoders. Integrated overcurrent protection and bus voltage sensing. Easy interface with buttons and trimmer for adjustment. STM32 firmware boot loader supported for updates.

This evaluation board is ideal for applications in industrial automation, robotics, power management, and motor control development, offering a cost-effective and compact solution for advanced brushless DC motor driving. Explore more Motor Driver Boards and STMicroelectronics products at EnvMart.
