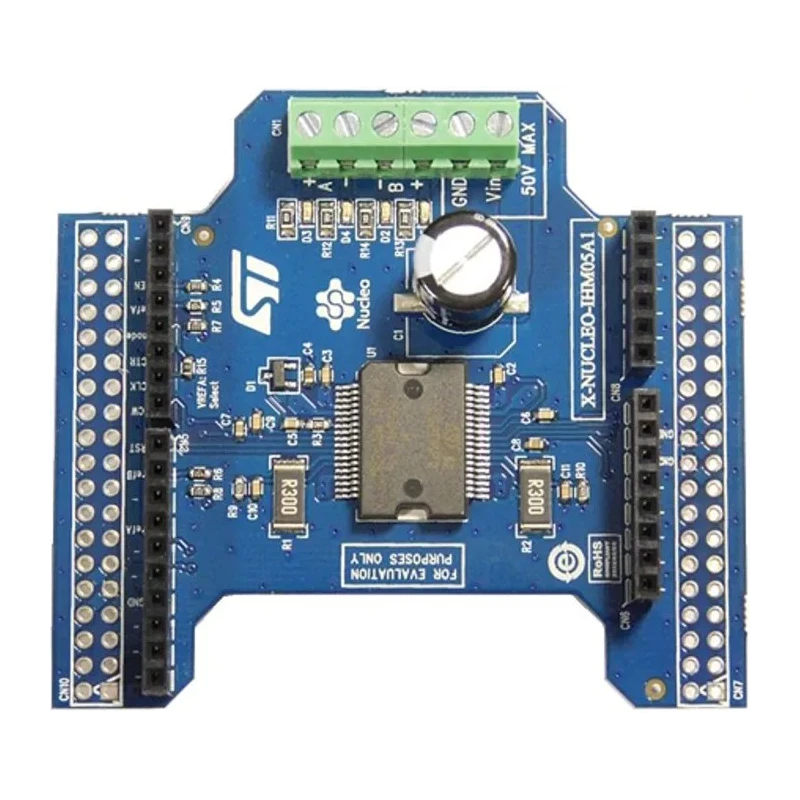

STMicroelectronics Bipolar Stepper Motor Driver Expansion Board L6208 Compatible with STM32 Nucleo Boards X-NUCLEO-IHM05A1

STMicroelectronics X-NUCLEO-IHM05A1 is a bipolar stepper motor driver expansion board designed for STM32 Nucleo Boards, equipped with the L6208 driver optimized for two-phase bipolar stepper motors. It operates efficiently within a voltage range of 8 to 50 volts and can deliver up to 2.8 A RMS output peak current per phase, making it suitable for a wide range of industrial and development applications.

The board features dual independent PWM current controllers which enable precise current regulation for smooth motor operation. It supports logic sequence generation to facilitate intricate stepper motor movements including full-step and half-step driving modes, providing flexible control over motor positioning and speed.

Safety features such as overcurrent protection and thermal shutdown ensure reliability during demanding operational conditions, preventing damage due to electrical faults or overheating. The device supports both fast and slow decay modes which enhance motor control by adjusting current decay behavior, optimizing performance depending on application requirements.

Physically, the board's connectors are compatible with Arduino UNO R3 and STMicroelectronics Morpho connectors, allowing for easy integration with a broad array of STM32 expansion boards and development projects. Its design emphasizes affordability and user-friendliness, making it an ideal choice for engineers and developers working on motor control and robotics projects.

The X-NUCLEO-IHM05A1 expansion board finds ideal use in various industrial and educational settings including robotics, industrial automation, power management, and embedded system development.

Operates over 8 V to 50 V voltage range ensuring versatility across different projects. Delivers up to 2.8 A RMS per phase output peak current for powerful motor driving. Provides dual independent PWM current controllers for refined motor control.

Supports full-step and half-step modes enabling precise and flexible stepping. Incorporates overcurrent and thermal shutdown protections enhancing device safety. Fully compatible with Arduino UNO R3 and STMicroelectronics Morpho connectors.

Facilitates logic sequence generation for intuitive stepper motor operation. Includes fast and slow decay mode selection for optimized motor dynamics. Designed as an affordable, easy-to-use DMOS driver optimized for bipolar stepper motors.
