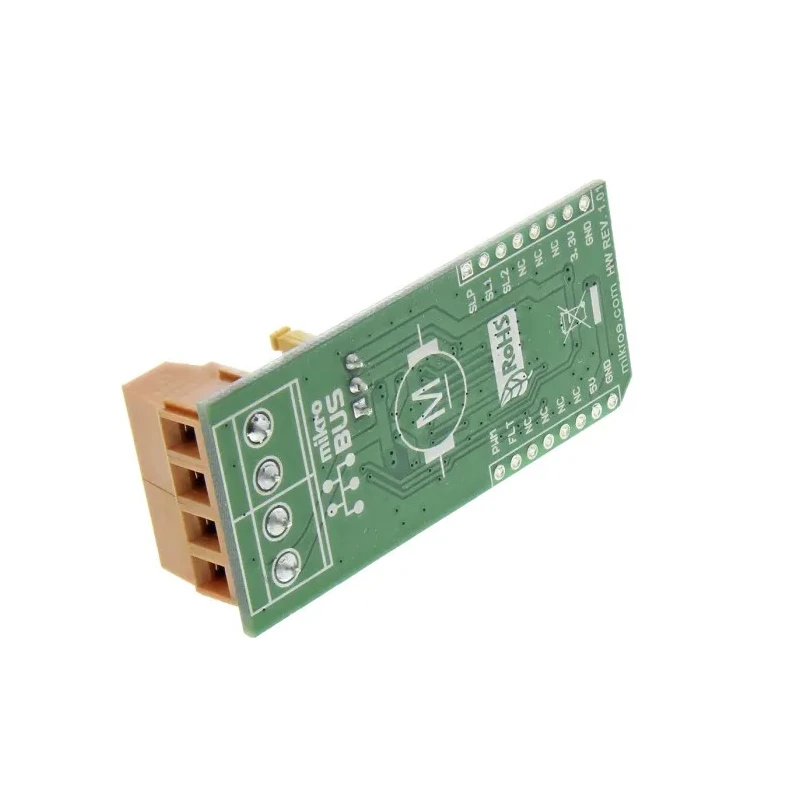

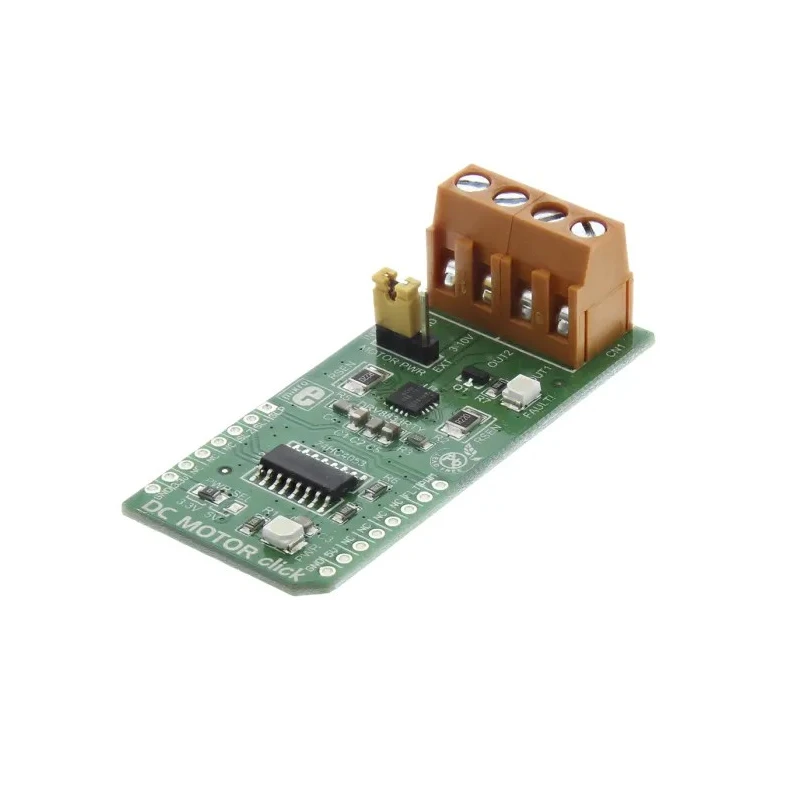

MikroElektronika MOTOR Click DC Motor Shield for 74HC4053, DRV8833RTY MIKROE-1526
Specifications
| Country of Origin | Serbia |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-1526 |
| For Use With | 74HC4053, DRV8833RTY |
| Kit Classification | Shield |
| Featured Device | Mikroe-1526 |
| Kit Name | MOTOR Click |
| Max motor current | 0.9A |
Key Features
- Equipped with a DRV8833RTY H-Bridge motor driver chip.
- Speed control is achieved via PWM signals.
- Supports direction and brake/coast control through two control signals.
- Includes a motor current sensing resistor with maximum motor current of 0.9A.
- Features fault condition indicator and power indicator LEDs for operational monitoring.
- Supports power supply of +3.3V or +5V DC voltage.
- Equipped with screw terminals for motor and optional external motor power supply connection.
- Designed to plug into MikroBUS sockets on MikroElektronika microcontroller development boards.
Product Description
MikroElektronika MIKROE-1526 MOTOR Click is an evaluation board and shield designed for full H-Bridge control of small DC motors. Featuring the DRV8833RTY motor driver chip, this board supports precise speed control via PWM signals and direction as well as brake/coast control through two dedicated signals. The shield includes a motor current sensing resistor, which enables monitoring up to 0.9A maximum motor current.
For ease of operation and diagnostics, the MOTOR Click board is equipped with LEDs that indicate fault conditions and power status. It operates on a power supply voltage of either +3.3V or +5V DC, making it compatible with a range of microcontroller development boards using mikroBUS sockets.
The board includes screw terminals to connect the motor and optionally an external motor power supply, providing flexibility in powering and controlling motors for robotics, automation, and various embedded applications.
This shield is commonly used in industrial controls, laboratory automation, educational robotics projects, and prototyping environments where compact and reliable motor control solutions are required.
Equipped with a DRV8833RTY motor driver chip for efficient DC motor operation. Speed is PWM controlled for variable motor speed applications. Direction and braking controlled with dual signals. Current sensing facilitates motor protection and monitoring.
Compact form factor compatible with MikroElektronika mikroBUS systems. Fault and power status LEDs improve usability and troubleshooting. Operates on standard 3.3V or 5V power supply rails. Screw terminal connections ensure secure wiring for motors and power supplies.
The package includes the MOTOR Click board with pre-soldered headers ready for immediate deployment. This product originates from Serbia and is supplied new. Explore more motor control development boards and components in the Motors & Pumps category at EnvMart for optimizing your automation and robotics designs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MOTOR Click shield supports a maximum motor current of 0.9A.
It operates on a power supply voltage of either +3.3V or +5V DC.
Speed control is achieved via PWM signals, allowing for variable motor speed applications.
It supports direction control and brake/coast control through two dedicated control signals.
The shield includes screw terminals for connecting the motor and an optional external motor power supply.
This model is designed to plug into MikroBUS sockets on MikroElektronika microcontroller development boards.
It features fault condition indicator and power indicator LEDs for operational monitoring.
The MOTOR Click shield originates from Serbia.
This product is classified as a shield kit.
The featured device on this board is the DRV8833RTY motor driver chip.
It is commonly used in industrial controls, laboratory automation, educational robotics projects, and prototyping environments.
The model number of this motor driver board is MIKROE-1526.
