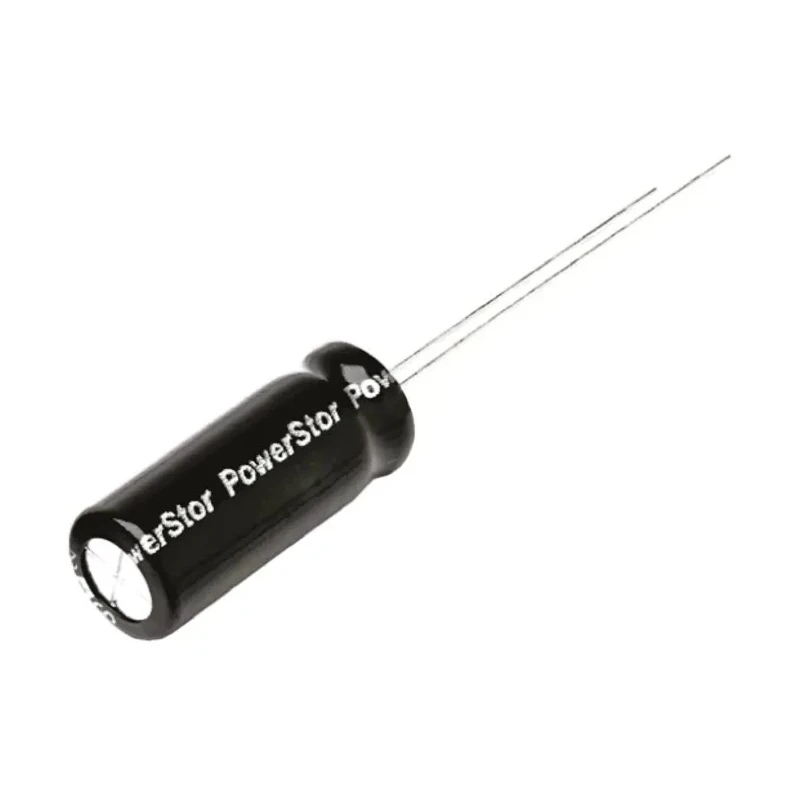

Eaton 0.22F Electric Double Layer Supercapacitor 2.5V dc Through Hole Mount Supercap B Series B0510-2R5224-R

Eaton B0510-2R5224-R is a 0.22F Electric Double Layer Supercapacitor designed for high-capacity energy storage with a voltage rating of 2.5V DC and through hole mounting configuration. This Supercap B series component offers unique electrochemical double layer capacitor construction to deliver ultra-high capacitance combined with low Equivalent Series Resistance (ESR) of 2Ω, ensuring both high energy and power density for industrial, electronics, and power applications.

The capacitor features a compact cylindrical design measuring 5.5mm in diameter and standing 12mm tall, making it suitable for tight PCB space requirements. The solder-type leads have a diameter of 0.5mm and pitch of 2mm, ensuring robust solder joint strength and easy PCB integration.

Its operating temperature range extends from -25°C up to 70°C, enabling operation in harsh environmental conditions typically encountered in industrial, automotive, and laboratory settings. Extremely low leakage current of 2 microamperes minimizes power loss, enhancing device reliability.

The product complies with RoHS and UL standards, reassuring compliance with environmental and safety regulations. Rated for a lifetime of 1000 hours, it suits applications demanding long-term stability and consistent performance.

Capacitance of 0.22 farads delivers substantial energy storage capacity. 2.5V DC voltage rating supports low voltage power supplies. Through Hole mount type ensures secure mechanical fixation and electrical contact. Low ESR of 2 ohms facilitates efficient power delivery at high currents.

Operates reliably between -25°C and 70°C environmental temperatures. Leakage current is constrained to 2μA, reducing parasitic power drain. Height and diameter of 12mm and 5.5mm respectively enables compact PCB placement.

Packaging in bags for ease of handling and protection during transport. Lead diameter and pitch of 0.5mm and 2mm for standardized PCB compatibility. Lifetime of 1000 hours for sustained performance. Conforms to RoHS and UL certification standards.

This high-performance supercapacitor is ideal for use in industrial electronics, power management modules, energy harvesting systems, backup power applications, and other commercial or laboratory electronic power devices. Eaton, a reputable brand formerly known as Bussmann, ensures world-class quality and innovation in capacitor technology.
