NVE 2-Channel Digital Isolator, 100 Mbps, 2.5 kVrms, 5.5V, SOIC, IL612-2E

Free Delivery in India | Lowest Global Shipping Charges

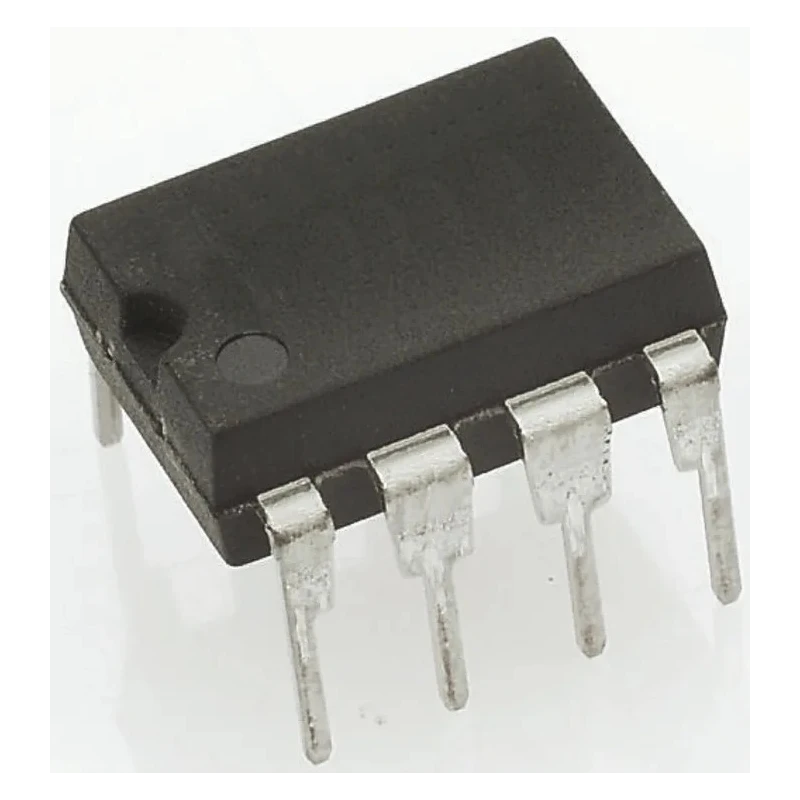

NVE 2-Channel Digital Isolator, 100 Mbps, 2.5 kVrms, 5.5V, SOIC, IL612-2E



Category Digital Isolator IC Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Length	10.2mm
Model	IL612-2E
Depth	6.6mm
Width	3.81mm
Mount Type	Surface
Series	IL
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input current	75mA
Number Of Channels	2
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	UL, IEC
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	100Mbps
Propagation Delay Time	15ns
Package Style	SOIC

Key Features

Provides galvanic isolation for up to 2 digital signals using CMOS outputs.
Supports data transmission rates up to 100 Mbps for fast signal processing.
Operates with a supply voltage of up to 5.5 V and provides a high isolation voltage of 2.5 kVrms.
Compact 8-pin SOIC package ensures easy integration into modern PCBs.
Features low propagation delay and fast rise time suitable for precision applications.
Works reliably across a wide operating temperature range from −40°C to 85°C.
Utilizes NVE’s IsoLoop Giant Magnetoresistive technology for signal integrity and minimal power consumption.

Product Description

The NVE IL612-2E is a high-performance, 2-channel digital isolator designed for galvanic isolation of high-speed digital signals in electronic circuit applications. This device utilizes NVE’s patented IsoLoop Giant Magnetoresistive (GMR) technology to provide robust, passive isolation with CMOS logic outputs, ensuring reliable isolation even at data rates up to 100 Mbps. It is presented in a compact 8-pin SOIC surface-mount package that is ideal for streamlined integration into densely populated PCBs for industrial, instrumentation, and control systems.

This digital isolator supports a maximum isolation rating of 2.5 kVrms, protecting signal lines and systems from high-voltage differentials and transients. With a maximum forward voltage of 7 V and a typical supply voltage operation up to 5.5 V, the IL612-2E is adaptable to a range of logic families and system architectures. Low propagation delay (as low as 15 ns) and a fast rise time of 4 ns make this isolator suitable for time-critical signal paths in automation and data acquisition interfaces.

Engineered for reliable operation from -40°C to 85°C, the IL612-2E maintains performance during extreme temperature swings commonly found in industrial environments. The passive input structure allows for minimal power draw, supporting optimized system efficiency, while the 8-pin configuration offers straightforward replacement and interchangeability.

This model features two fully isolated signal channels and conforms to recognized UL and IEC isolation standards, making it suitable for use in safety-critical designs. Its automotive standard compliance is indicated as 'No', making it optimized for general industrial and electronic component applications rather than automotive installations.

The NVE IL612-2E digital isolator is widely used in industrial automation, process control, instrumentation, PLCs, energy management equipment, and any system where strong electrical isolation and high-speed signal integrity are required. It is particularly valuable in scenarios demanding noise immunity and the safe interfacing of low- and high-voltage subsystems.

Explore more components in the Digital Isolator IC category to find compatible solutions for your isolation and high-speed signal requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum data rate of 100 Mbps, allowing for fast signal processing in various applications.

The IL612-2E provides a high isolation voltage rating of 2.5 kVrms, ensuring robust protection against high-voltage differentials.

It operates with a supply voltage of up to 5.5 V, making it compatible with various logic families and system architectures.

This model has dimensions of 10.2 mm in length, 6.6 mm in depth, and 3.81 mm in width, packaged in an 8-pin SOIC format.

The IL612-2E operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.

The rise time for this model is 4 ns, which is beneficial for time-critical signal applications.

This digital isolator features two fully isolated signal channels, allowing for the isolation of multiple digital signals.

The propagation delay time is as low as 15 ns, enabling efficient signal transmission with minimal delay.

It conforms to recognized UL and IEC isolation standards, making it suitable for safety-critical designs.

This model utilizes a surface mount configuration, facilitating easy integration into modern PCBs.

The maximum input current for this digital isolator is 75 mA, ensuring compatibility with various electronic systems.

It is widely used in industrial automation, process control, instrumentation, and PLCs, where strong electrical isolation and high-speed signal integrity are required.
