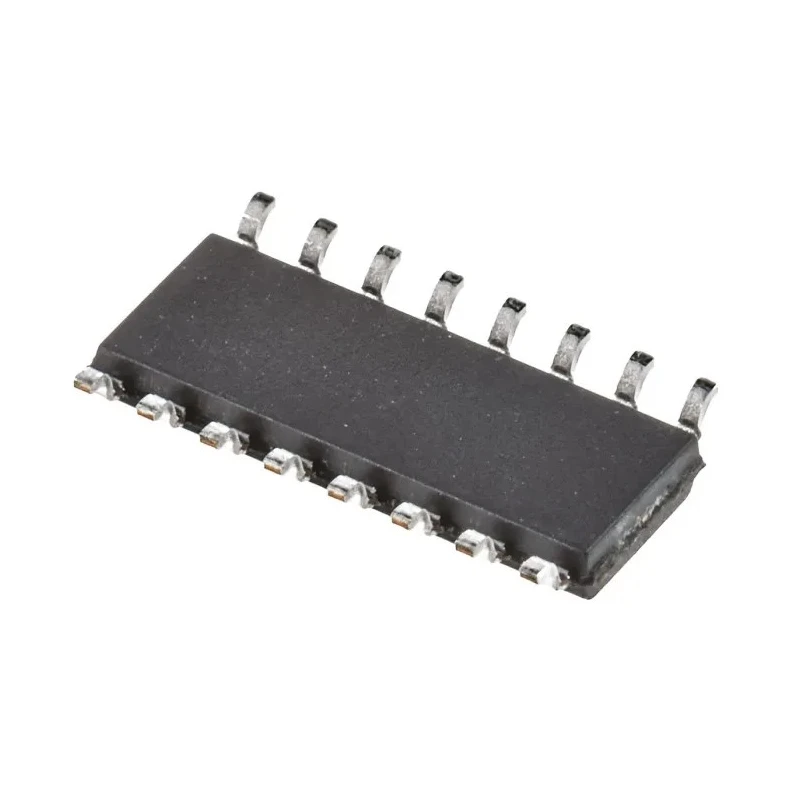

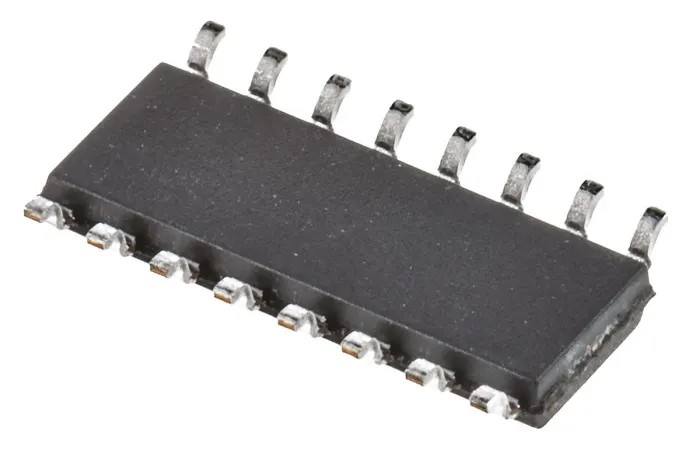

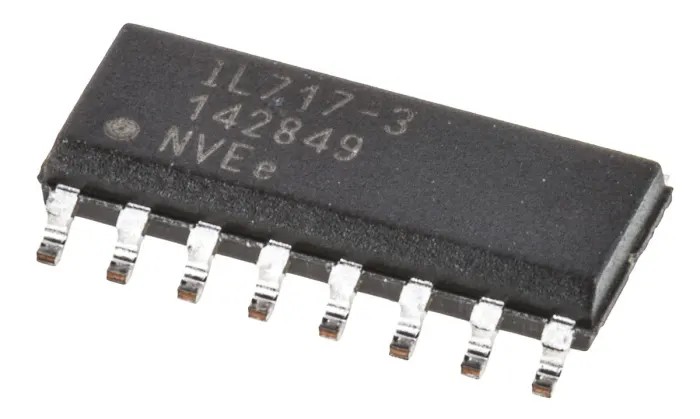

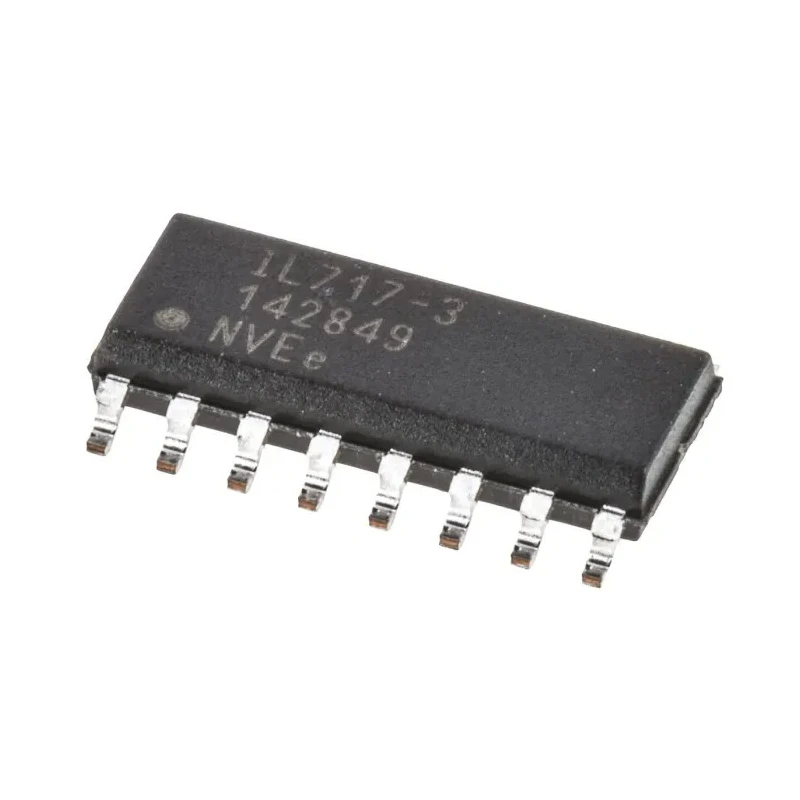

NVE 4-Channel Digital Isolator 110 Mbps, 2.5 kVrms, SOIC, 5.5V IL717-3E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 10mm |
| Model | IL717-3E |
| Depth | 6.2mm |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 3mA |
| Number Of Channels | 4 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, UL |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | SOIC |
Key Features
- Supports up to 110 Mbps maximum data rate for fast digital signal transmission.
- Offers isolation voltage rated at 2.5 kVrms to ensure safety and signal integrity.
- Operates with supply voltage up to 5.5V, suitable for common circuit configurations.
- Compact 8-pin SOIC package enables surface mount assembly and efficient layout.
- Provides propagation delay time of just 18ns and rise time of 4ns for minimal latency.
- Rated for maximum operating temperature up to 125°C, ideal for demanding environments.
- Includes four digital channels, supporting multi-channel isolation in one IC.
- Mount type is surface mount, with dimensions of 10mm length, 6.2mm depth, and 1.8mm width.
Product Description
The NVE IL717-3E is a high-performance 4-channel digital isolator, designed for applications requiring robust signal isolation and fast data transmission. Its advanced magnetically-coupled isolation technology supports up to 110 Mbps data rate, ensuring reliable transfer of digital signals across isolated circuits, protecting sensitive electronics from voltage surges and noise.
The IL717-3E features an isolation voltage of 2.5 kVrms, making it suitable for industrial, laboratory, and commercial electronics where safety and isolation from high voltage are crucial. The device’s supply voltage range up to 5.5V provides compatibility with a wide variety of logic circuits and systems.
This isolator is housed in an 8-pin SOIC surface-mount package, offering a compact form factor (10mm x 6.2mm x 1.8mm) for efficient PCB design and minimal space utilization. With a propagation delay time of 18ns and rise time of just 4ns, the IL717-3E is engineered for low-latency digital communication.
Designed to operate reliably over a wide temperature range from -40°C to 125°C, this digital isolator is suited for harsh environments in manufacturing, automation, and instrumentation systems. Its maximum forward voltage of 7V and maximum input current of 3mA ensure optimal performance without excessive power consumption.
Applications include industrial control systems, sensor interfaces, communication networks, medical equipment, and any installation requiring safe and isolated multi-channel digital signal transmission. The IL717-3E complies with IEC and UL standards, providing peace of mind and adherence to global safety requirements.
Explore more from NVE in Digital Isolator ICs for reliable signal isolation solutions in electronics and automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 110 Mbps, allowing for fast digital signal transmission.
The IL717-3E has an isolation voltage rated at 2.5 kVrms, ensuring safety and signal integrity in various applications.
It operates with a supply voltage up to 5.5V, making it compatible with a variety of circuit configurations.
This model has dimensions of 10mm in length, 6.2mm in depth, and 1.8mm in width, housed in an 8-pin SOIC package.
The propagation delay time is 18ns, which contributes to its low-latency performance in digital communication.
The rise time for this unit is 4ns, allowing for quick signal transitions in digital applications.
It is rated for operation in temperatures ranging from -40°C to 125°C, suitable for demanding environments.
The IL717-3E includes four digital channels, enabling multi-channel isolation in a single IC.
It complies with IEC and UL standards, ensuring adherence to global safety requirements.
This model has a maximum input current of 3mA, which helps maintain optimal performance without excessive power consumption.
This digital isolator is designed for surface mount assembly, facilitating efficient layout on PCBs.
It is suitable for applications including industrial control systems, sensor interfaces, communication networks, and medical equipment.
