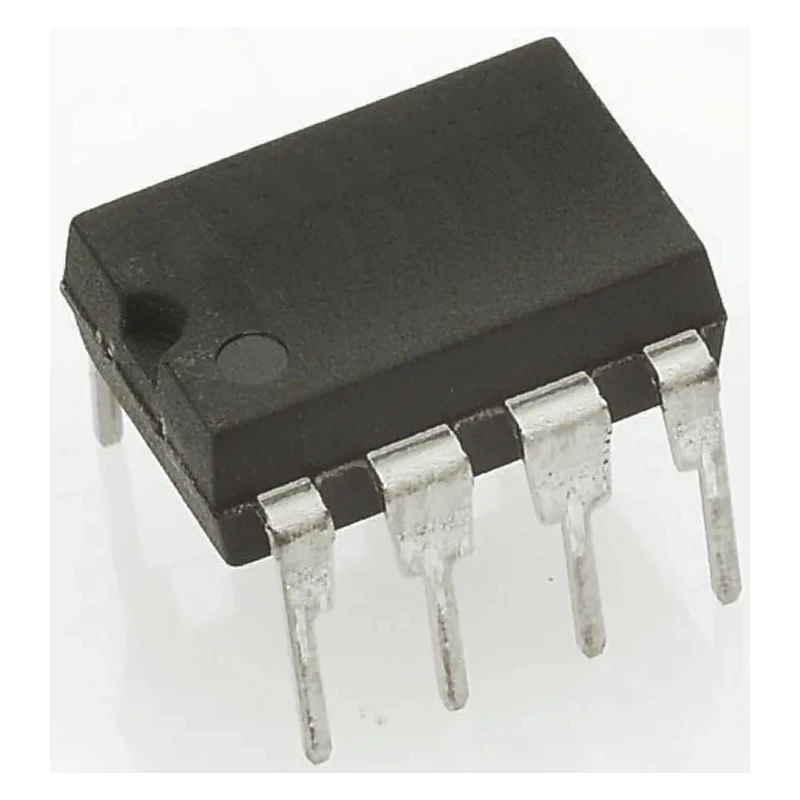

NVE 2-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5 V Supply, 8-Pin PDIP IL712-2E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 10.2mm |
| Model | IL712-2E |
| Depth | 6.6mm |
| Width | 3.81mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 3mA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, UL |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | PDIP |
Key Features
- Supports data rates up to 110 Mbps for fast signal transmission.
- Offers isolation voltage of 2.5 kVrms for robust electrical separation.
- Operates with a supply voltage of 5.5 V ensuring compatibility with common logic levels.
- Features 8-pin PDIP package with through-hole mounting for easy installation.
- Maximum operating temperature up to 125°C suitable for harsh environments.
- Propagation delay time of 18 ns supporting fast switching applications.
- Low maximum input current of 3 mA reduces power consumption.
- Complies with IEC and UL standards ensuring quality and safety.
Product Description
NVE IL712-2E is a 2-Channel Digital Isolator designed for industrial and electronic applications requiring high-speed digital signal isolation. It operates at a data rate of 110 Mbps and offers an isolation voltage of 2.5 kVrms, which ensures electrical separation between system sections, enhancing system reliability and noise immunity.
The device is supplied with 5.5 V and packaged in an 8-pin PDIP, suitable for through-hole mounting on printed circuit boards. Its operational temperature range from -40°C to 125°C makes it ideal for high temperature and harsh environment applications.
With a propagation delay of only 18 ns and a rise time of 4 ns, this digital isolator supports fast switching and high fidelity signal transmission. The maximum forward voltage is 7 V with a maximum input current of 3 mA, making it power efficient and compatible with a variety of logic circuits.
This isolator is compliant with IEC and UL 1577 standards and is manufactured in the United States, ensuring stringent quality control and reliability. It is commonly used in electronic components, power and connector circuits, displays, optoelectronics, and signal isolation modules.
Supports 110 Mbps maximum data rate for high-speed communications. Dual channels provide independent signal isolation paths. Industry-standard 8-pin PDIP package for easy PCB mounting. Wide operating temperature range suitable for industrial environments.
Low propagation delay enables precise timing control. Low input current consumption for energy efficient designs. Reliable compliance with IEC and UL safety standards. Robust isolation voltage supports protection against high voltages.
Manufactured in the United States for assured quality.
This product is ideal for use in industrial, electronic manufacturing, testing instruments, automotive electronics, and general digital isolation applications requiring high-speed data transmission with reliable isolation.
Explore more digital isolator products and components at EnvMart for your electronic design and industrial needs.
Explore more products in our Digital Isolator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 110 Mbps, allowing for fast signal transmission.
This unit operates with a supply voltage of 5.5 V, making it compatible with common logic levels.
The propagation delay time is 18 ns, supporting fast switching applications.
The dimensions are 10.2 mm in length, 6.6 mm in depth, and 3.81 mm in width.
This model features 2 channels, providing independent signal isolation paths.
The rise time for this digital isolator is 4 ns, enabling precise timing control.
It supports through-hole mounting, making installation straightforward on printed circuit boards.
It complies with IEC and UL standards, ensuring quality and safety in its applications.
The maximum input current is 3 mA, which helps reduce power consumption.
It is commonly used in electronic components, power and connector circuits, displays, optoelectronics, and signal isolation modules.
