Moflash AE30M Series Buzzer Panel, IP34, DC 24V, 1-Tone 75 dB @ 1m AE30M-TT-02

Free Delivery in India | Lowest Global Shipping Charges

Moflash AE30M Series Buzzer Panel, IP34, DC 24V, 1-Tone 75 dB @ 1m AE30M-TT-02

Name: Moflash AE30M Series Buzzer Panel, IP34, DC 24V, 1-Tone 75 dB @ 1m AE30M-TT-02
Brand: Moflash
SKU: 150074
Price: 10.72 USD
Availability: InStock



Category Automation & Control Gear Brand Moflash Condition New

Specifications

Country of Origin	India
Diameter	40mm
Brand	Moflash
Model	AE30M-TT-02
IP Rating	IP34
Mount Type	Panel
Housing Material	ABS
Series	AE30M
Maximum Operating Temperature	60°C
Current Type	DC
Current consumption	25mA
Minimum Operating Temperature	-20°C
Standards/Approvals	CE Certified UKCA
Maximum Supply Voltage	24V dc
Housing Colour	Red
Tone Type	Alarm
Minimum Sound Level	72dB
Sound Level at 1m	75dB
Maximum Sound Level	80dB
Number of Tones	1
Base Length	51mm
Base Width	35.2mm
Moflash AE30M Series Buzzer Panel, IP34, DC 24V, 1-Tone 75 dB @ 1mBrand	Moflash
WARNING DEVICE 24V DCBrand	NEUTRAL

Key Features

The buzzer outputs a sound level of 75 dB measured at 1 meter distance.
It features very directional output noise, audible up to 30-50 meters in low background noise environments.
Constructed with durable ABS housing in red color suitable for alarm signaling.
Operates continuously with a current consumption of 25mA and reverse polarity protection.
CE and UKCA certified, ensuring compliance with safety and quality standards.
Designed for operating temperatures ranging from -20°C up to 60°C for reliable performance.

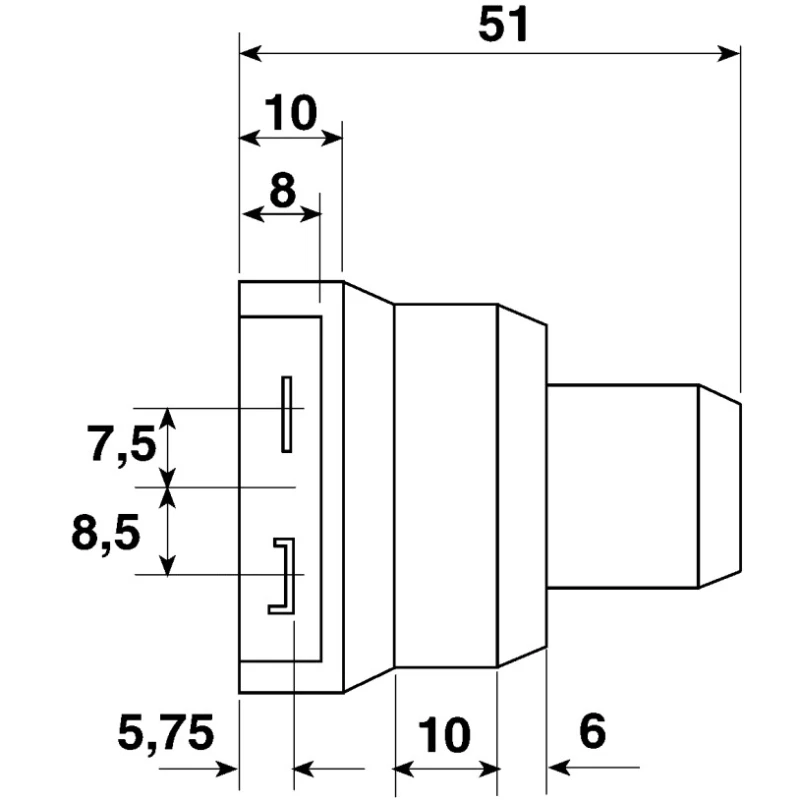

The buzzer has a diameter of 40mm, base length of 51mm, and base width of 35.2mm.
Maximum supply voltage is 24V DC with a maximum sound level reaching 80 dB.

Product Description

The Moflash AE30M-TT-02 is a high-quality buzzer panel from the AE30M series, specifically engineered for panel mounting applications requiring audible alarm signals. Featuring an IP34 ingress protection rating, this buzzer is suitable for environments where protection against solid objects and water spray is necessary.

It operates at a DC voltage of 24V, consuming a low current of 25mA, and produces a single tone alarm sound with a sound pressure level of 75 dB at 1 meter, capable of reaching audible distances between 30 to 50 meters in low noise conditions. The output noise is highly directional, making it effective for precise area alerting.

The housing is made from durable ABS plastic in red, providing visible alarm indication and robust protection. The buzzer is designed for continuous operation with built-in reverse polarity protection for enhanced reliability. Its operating temperature range from -20°C to 60°C ensures stable performance in varied industrial and commercial environments.

Physical dimensions include a diameter of 40mm, base length of 51mm, and base width of 35.2mm, allowing easy panel integration. It complies with CE and UKCA safety standards, providing assurance of quality and regulatory conformity.

The buzzer produces a clear alarm tone suitable for automation signalling. Its compact size and panel mount design facilitate seamless installation in control panels. Low current consumption makes it energy efficient for continuous usage.

Highly directional sound output increases effectiveness in noisy environments. Rugged ABS construction ensures durability and long service life. The IP34 rating provides protection from dust and water spray for improved reliability.

Certified for CE and UKCA standards supporting international compliance needs.

This buzzer panel is widely applicable in electrical automation, industrial control, building management systems, and HVAC alarm signaling. It combines reliability, compliance, and performance, making it an ideal choice for commercial and industrial alarm applications. Explore more products in automation signalling at EnvMart to match your specific control system requirements.
