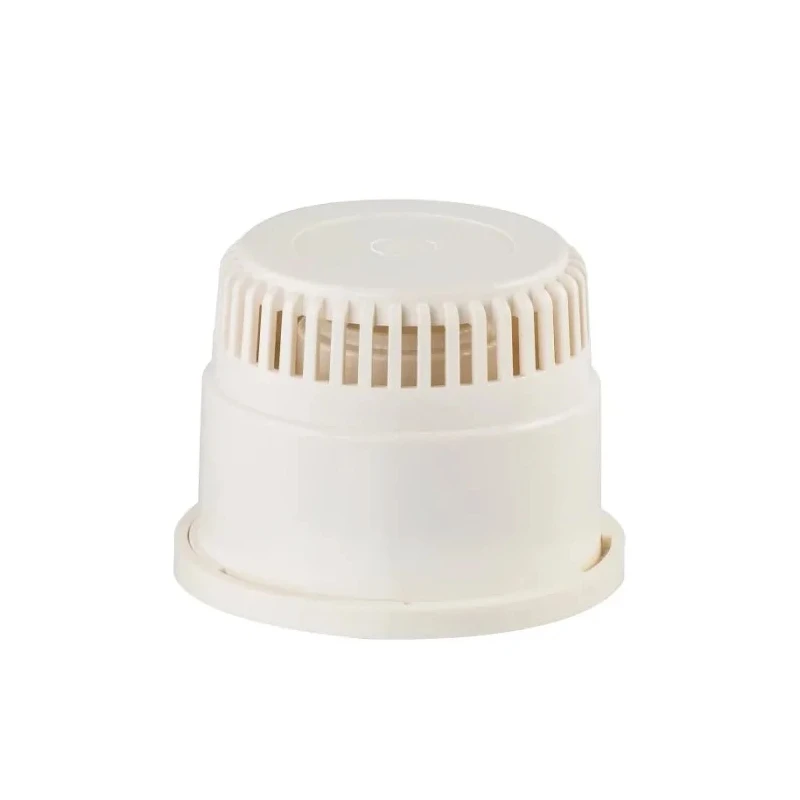

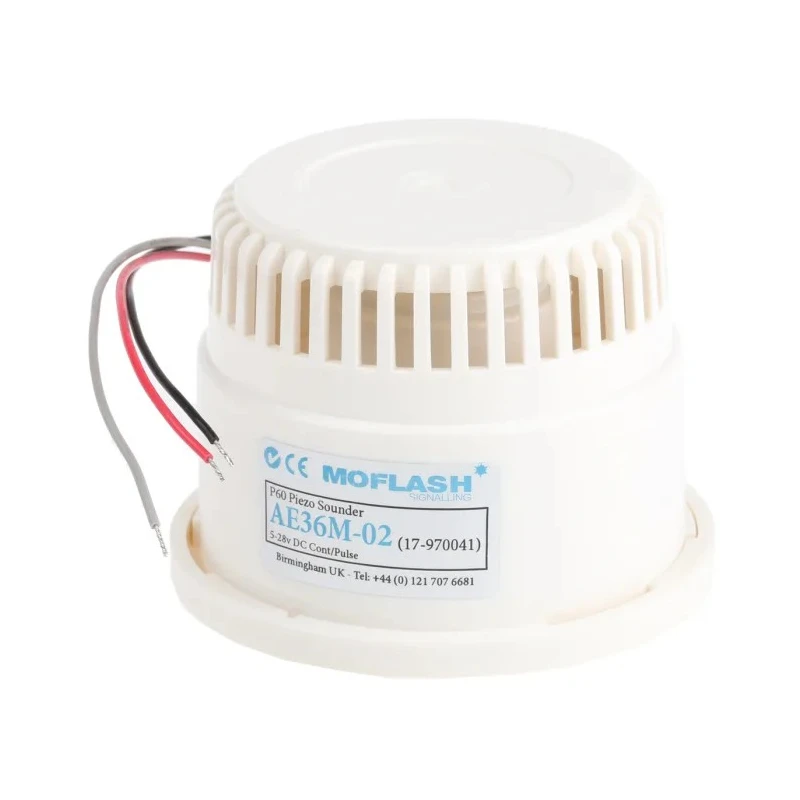

Moflash AE36M Series Electronic Sounder Panel, IP30, DC 12V 24V, 2-Tone, 100 dB @ 1m AE36M-02
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 50mm |
| Brand | Moflash |
| Model | AE36M-02 |
| IP Rating | IP30 |
| Mount Type | Panel |
| Housing Material | ABS |
| Series | AE36M |
| Maximum Operating Temperature | 60°C |
| Current Type | DC |
| Current consumption | 57mA |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | CE Certified UKCA |
| Maximum Supply Voltage | 12, 24V dc |
| Housing Colour | White |
| Tone Type | Continuous, Pulse |
| Minimum Sound Level | 95dB |
| Sound Level at 1m | 100dB |
| Maximum Sound Level | 105dB |
| Number of Tones | 2 |
| Base Length | 83mm |
| Base Width | 63mm |
| Moflash AE35M Series Horn Panel, IP30, DC 24V, 2-Tone 95 dB @ 1mBrand | Moflash |
| Eaton Electronic Sounder Flange 28V dc, IP65 92 dB @ 1m, DC, 32-ToneBrand | Eaton |
Key Features
- The unit operates on DC voltage between 12 V and 24 V.
- It features a white ABS housing that is impact and wear resistant.
- Sound levels range from a minimum of 95 dB to a maximum of 105 dB, providing audible alerts in noisy environments.
- The product supports both continuous and pulse tone types selectable via wiring.
- The sounder panel is designed for a wide temperature range from -20°C to 60°C.
- Mounting is flexible for panel, conduit box, or other surfaces.
- Lightweight at approximately 0.1 kg to minimize mounting strain.
- The device is CE and UKCA certified, complying with relevant European standards.
Product Description
The Moflash AE36M-02 Electronic Sounder Panel offers reliable audio signaling with 2-tone capability, delivering a sound level of 100 dB at a distance of 1 meter. Designed with an IP30 ingress protection rating, this white ABS housed sounder is intended for panel mounting in industrial and commercial settings.
Operating on DC voltages of 12 V and 24 V, it supports sound emission modes selectable between continuous and pulse tones thanks to an in-base cable termination design. This design also enhances electrical safety by preventing exposed wires.
With sound levels ranging from 95 dB minimum to 105 dB maximum, it provides clearly audible warnings vital in noisy environments. The product supports a broad temperature operating range from -20°C to +60°C, ensuring dependable performance in various demanding industrial conditions.
Measuring 83 mm in length and 63 mm in width at the base, and featuring a 50 mm diameter sound emitter, this lightweight (0.1 kg) device adds minimal burden to mounting surfaces. It is CE and UKCA certified, meeting essential safety and quality standards.
The unit's white ABS housing offers resistance against impact and wear for durability. It is designed for mounting onto panels, conduit boxes, or similar surfaces for versatile installation. Low current consumption of 57 mA at 24 V DC supports energy efficiency in operations.
Applications include the oil and gas industry, mining, marine environments, factory floors, and storage facilities. The sounder’s design supports safety and alert systems in industrial automation and control gear setups.
This Moflash AE36M series sounder panel is ideal for industrial, commercial, and manufacturing signalling applications requiring reliable audible alerts with flexible installation options. Explore more Electronic Sounders and automation signalling equipment on EnvMart for enhanced industrial safety and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model produces a sound level of 100 dB at a distance of 1 meter, with a minimum sound level of 95 dB and a maximum of 105 dB.
It operates on DC voltages between 12 V and 24 V.
The sounder panel measures 83 mm in length and 63 mm in width at the base, with a sound emitter diameter of 50 mm.
It can operate in a temperature range from -20°C to +60°C.
The sound emission modes can be selected between continuous and pulse tones via wiring.
The current consumption is 57 mA at 24 V DC.
The housing is made from white ABS, which is impact and wear resistant.
It is designed for panel mounting, but can also be mounted on conduit boxes or other surfaces.
This unit is CE and UKCA certified, complying with relevant European standards.
Applications include the oil and gas industry, mining, marine environments, factory floors, and storage facilities.
The sounder has an IP30 ingress protection rating.
The unit weighs approximately 0.1 kg, making it lightweight for easy mounting.
