Klaxon Banshee Series Electronic Sounder Surface Mount, IP66, 30V DC, 32-Tone, 110 dB at 1m 90003R5

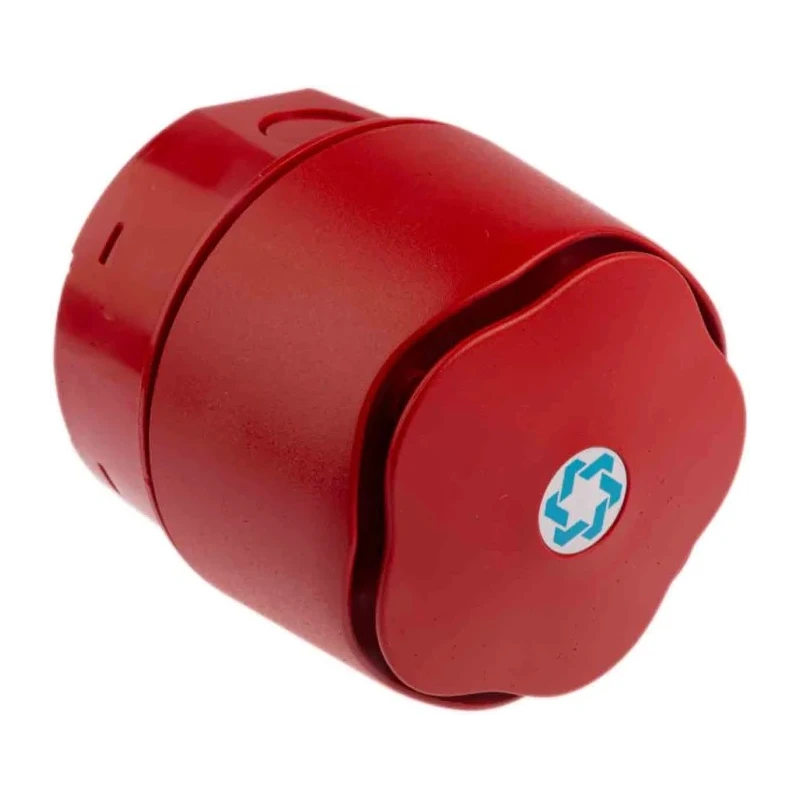

Hosiden Besson 90003R5 Electronic Sounder series provides a high-performance surface mount alarm solution designed for industrial and commercial safety signaling applications. This sounder features a durable flame retardant ABS red housing ensuring long-lasting operation in harsh environments. It supports 32 user selectable tones with a maximum sound output of 110 dB at 1 meter, powered by a reliable 30V DC supply voltage. The unit achieves an IP66 ingress protection rating, making it dust-tight and water-resistant, suitable for indoor and outdoor installation.

The banshee excel model includes ultra-low current consumption to reduce power demands. Installation is flexible with side and rear cable entry points, robust 2.5mm screw terminals for secure wiring connections, and a push and twist lockable bayonet mount device design providing easy mounting and maintenance. The sounder allows three volume levels for tailored alarm signaling and continuous override with dual signaling capabilities.

Operating effectively within a temperature range of -40°C to +70°C, this device meets rigorous international standards including RoHS, EN54-3, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007, assuring compliance with safety and environmental requirements. Its 90mm diameter and surface mount make it adaptable in various automation, manufacturing, and safety alerting systems.

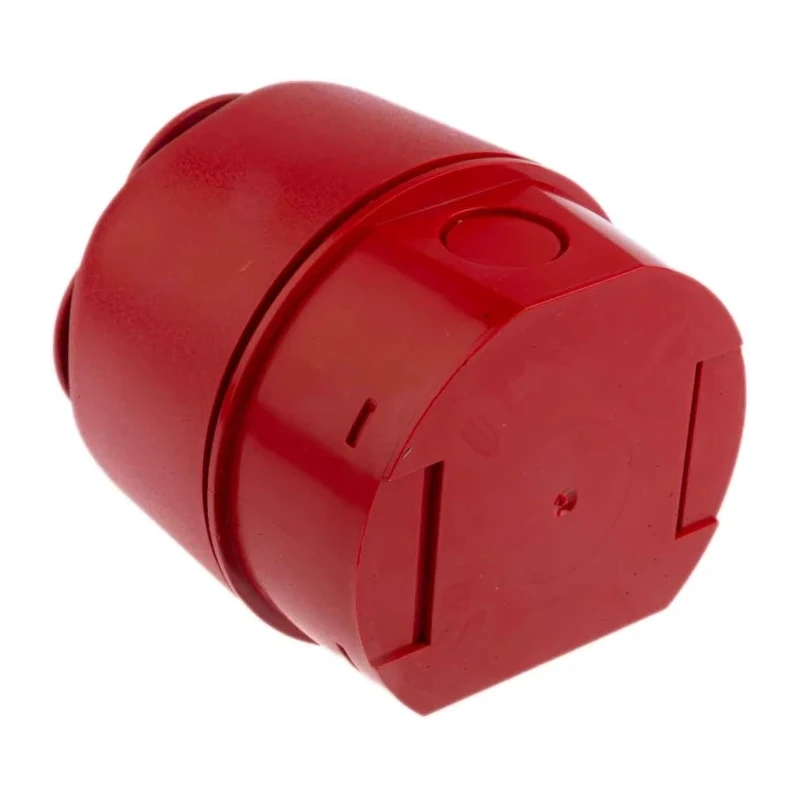

Users should note that to preserve the IP rating when using a deep base mounting option, the supplied wall mounting bracket must be used without drilling fixing holes. Suitable 20mm cable glands are recommended for cable or conduit installation via side knock-outs, and an 'O' ring seal should be fitted between the lens and base to maintain integrity.

This sounder is ideal for industrial automation, construction, manufacturing plants, and other critical facilities requiring reliable audible alert signaling and hazard notification.

Ultra low current consumption enhances energy efficiency. Flame retardant ABS housing ensures robust durability and safety. IP66 rating guarantees excellent protection against dust and water ingress. Features 32 user-selectable tones with adjustable volume levels.

Ease of installation via side and rear cable entry and bayonet locking mechanism. Compliant with multiple international safety and environmental standards. Operates reliably across a wide temperature range (-40°C to 70°C).

Designed for surface mounting with a 90mm diameter housing. Manufactured in the United Kingdom maintaining high quality standards. Explore the Electronics & Electricals category at EnvMart for more advanced Automation & Control Gear including Electronic Sounders optimized for industrial applications.
