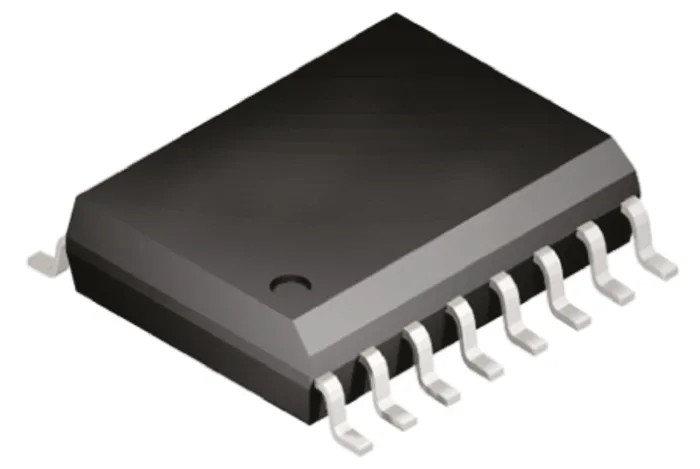

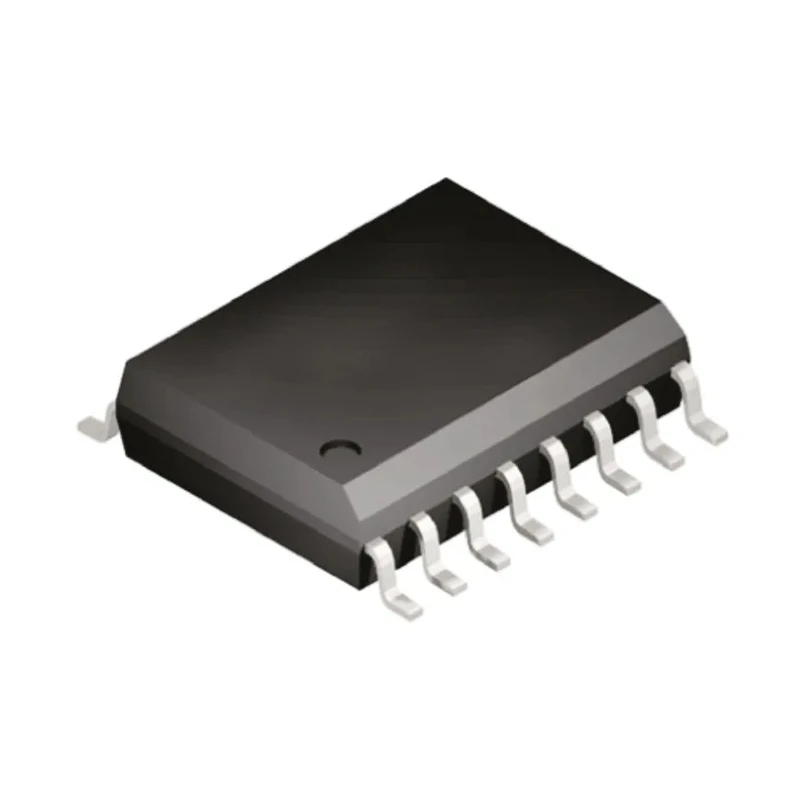

Skyworks Solutions Inc 4-Channel I2C Digital Isolator, 1 Mbps Data Rate, 5 kVrms Isolation Voltage, 5.5V Si8605AD-B-IS
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Skyworks Solutions Inc |
| Length | 10.3mm |
| Model | Si8605AD-B-IS |
| Depth | 2.65mm |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | Si86 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10.5mA |
| Number Of Channels | 4 |
| Rise Time | 4ns |
| Power Dissipation | 275mW |
| Supply Voltage | 5.5V |
| Standards/Approvals | CSA, IEC, UL |
| Maximum Forward Voltage | 5.5V |
| Number of Pins | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Data Rate | 1Mbps |
| Propagation Delay Time | 45ns |
| Package Style | SOIC |
Key Features
- Supports a maximum data rate of 1 Mbps for efficient I2C communication.
- Features 4 independent isolation channels for enhanced signal integrity.
- Operates at a supply voltage of 5.5 volts with low power dissipation of 275 mW.
- Ensures high isolation voltage of 5 kVrms for electrical safety and noise reduction.
- Designed with a compact 16-pin SOIC surface-mount package, suitable for space-constrained applications.
- Wide operating temperature range from -40°C to 125°C for industrial reliability.
- Includes automotive-standard qualification to AEC-Q100 for high dependability.
- Fast propagation delay time of 45 nanoseconds and rise time of 4 nanoseconds to support rapid signal switching.
Product Description
Skyworks Solutions Inc Si8605AD-B-IS is a 4-channel I2C digital isolator featuring a maximum data rate of 1 Mbps and an isolation voltage of 5 kVrms. Packaged in a durable 16-pin SOIC surface mount enclosure, this device operates at a supply voltage of 5.5V and offers superior performance with power dissipation of only 275 mW. Its stable operating temperature range from -40°C to 125°C suits demanding industrial and automotive environments including construction, manufacturing, and embedded system applications.
This digital isolator is designed to replace traditional optocouplers, providing lower power consumption, enhanced reliability, and improved signal integrity. The device’s fast propagation delay of 45 ns and rise time of 4 ns ensures precise and responsive digital isolation for high-speed data communication interfaces such as I2C buses.
Automotive grade AEC-Q100 certification and approvals from CSA, IEC, and UL underline its suitability for critical performance scenarios. Its compact SOIC package (10.3 mm length x 7.5 mm width x 2.65 mm depth) allows seamless integration into complex PCB layouts.
Supports 1 Mbps maximum data rate to facilitate high-speed digital communication. Four channels enable multiple isolated signals within a single component footprint. Operates on 5.5V supply voltage with low 275 mW power dissipation for energy efficiency.
Maintains electrical isolation at 5 kVrms to enhance circuit protection and reduce noise coupling. Surface mount 16-pin SOIC package ensures ease of assembly and space savings. Broad temperature tolerance (-40°C to 125°C) supports harsh industrial conditions.
Complies with automotive and international safety standards, ensuring reliability. Propagation delay and rise time optimized for timing-sensitive digital applications.
This product is ideal for industrial automation, automotive electronics, embedded systems, and digital signal isolation tasks, where dependable isolation and high-speed data transfer are critical. For additional technical documents, certification details, and application use cases, explore the complete Skyworks Solutions Inc digital isolator range at EnvMart.
Explore more products in our Digital Isolator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this digital isolator is 1 Mbps, facilitating efficient I2C communication.
It features a high isolation voltage of 5 kVrms, which enhances electrical safety and reduces noise coupling.
This unit operates at a supply voltage of 5.5V, ensuring compatibility with various systems.
The operating temperature range is from -40°C to 125°C, suitable for demanding industrial and automotive environments.
It has 4 independent isolation channels, allowing for multiple isolated signals within a single component.
The rise time is 4 nanoseconds, which supports rapid signal switching for high-speed data applications.
This model has dimensions of 10.3 mm in length, 7.5 mm in width, and 2.65 mm in depth, packaged in a 16-pin SOIC format.
It has a low power dissipation of 275 mW, contributing to energy efficiency in applications.
It complies with automotive and international safety standards, including CSA, IEC, and UL, and is AEC-Q100 qualified.
The propagation delay time is 45 nanoseconds, allowing for precise timing in digital communication.
It is designed for surface mounting, making it suitable for space-constrained applications.
This digital isolator is ideal for industrial automation, automotive electronics, and embedded systems requiring reliable signal isolation.
