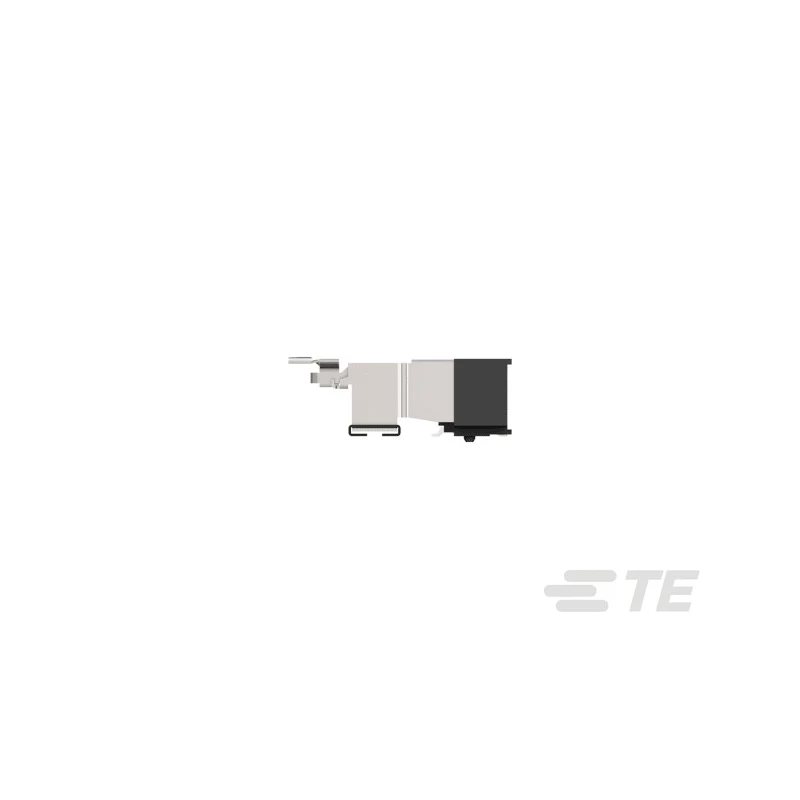

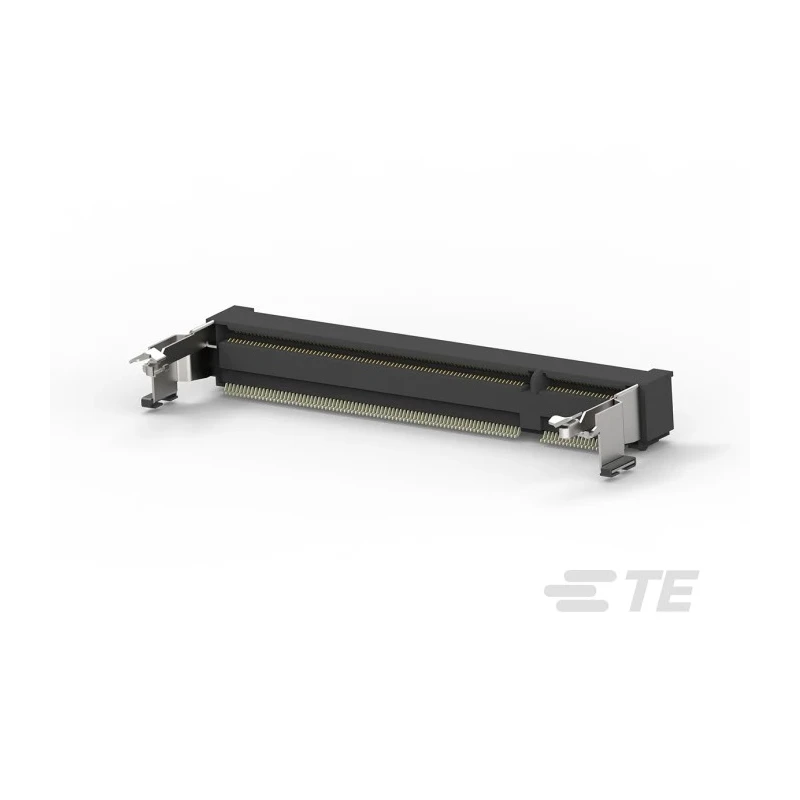

TE Connectivity 0.6 mm Pitch 200 Way Right Angle Surface Mount SO DIMM Socket 2.5V 500mA 1612618-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 2.5V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 1612618 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Row Spacing | 6.2mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 200 |
| Maximum Contact Resistance | 30mΩ |
| Memory Socket Type | DIMM |
| Insertion/Removal Method | Cam-In |
| SDRAM Type | SO |
Key Features
- Designed for SO DIMM memory types supporting 2.5V voltage.
- Provides a current rating of 500mA with copper alloy contacts plated with gold flash.
- The socket supports cam-in insertion/removal method and includes latching for secure connection.
- Thermoplastic housing ensures durability with an operating temperature range from -55°C to 85°C.
- Mount type is surface mount with a row spacing of 6.2 mm for PCB board applications.
- Maximum contact resistance does not exceed 30mΩ ensuring reliable electrical performance.
- Termination is via solder, suitable for PCB soldering processes.
- Series 1612618 with a profile designed for right angle mounting and locking ejector type.
Product Description
TE Connectivity 1612618-1 is a high precision Surface Mount SO DIMM Socket designed for electronic memory applications requiring a 0.6 mm pitch and 200 way contact configuration.
This DIMM socket supports Double Data Rate (DDR) SDRAM types with a 2.5V operating voltage and current rating of 500mA, making it suitable for various computing and telecom equipment.
The right angle orientation and cam-in insertion/removal method facilitate easy module placement and secure connection with high reliability.
Constructed with copper alloy contacts plated in gold flash, the socket ensures durable conductivity, while the thermoplastic housing withstands temperatures from -55°C to +85°C, suitable for demanding industrial environments.
With a row spacing of 6.2 mm and solder termination, the socket mounts reliably onto printed circuit boards using surface mount technology. The latching mechanism and locking ejector enhance module retention and serviceability.
Additionally, the product comes packaged in semi-hard trays containing 20 sockets for efficient handling and assembly line use.
Typical industrial applications include computing systems, telecommunications hardware, and other electronic assemblies requiring robust memory socket interfaces. Its compliance with standard dimensions and high-quality materials makes it a preferred choice for professional electronic manufacturers.
Explore the full range of TE Connectivity memory Sockets and connectors on EnvMart to find compatible components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this socket is 500mA.
This model operates at a voltage of 2.5V.
It supports Double Data Rate (DDR) SDRAM types.
The pitch is 0.6 mm and it has 200 contacts.
The maximum operating temperature is 85°C.
Termination is via solder, suitable for PCB soldering processes.
The orientation of this socket is right angle.
It features a thermoplastic housing and copper alloy contacts plated with gold flash.
The row spacing for this socket is 6.2 mm.
The socket uses a cam-in insertion and removal method.
The maximum contact resistance does not exceed 30mΩ.
The country of origin for this socket is China.
