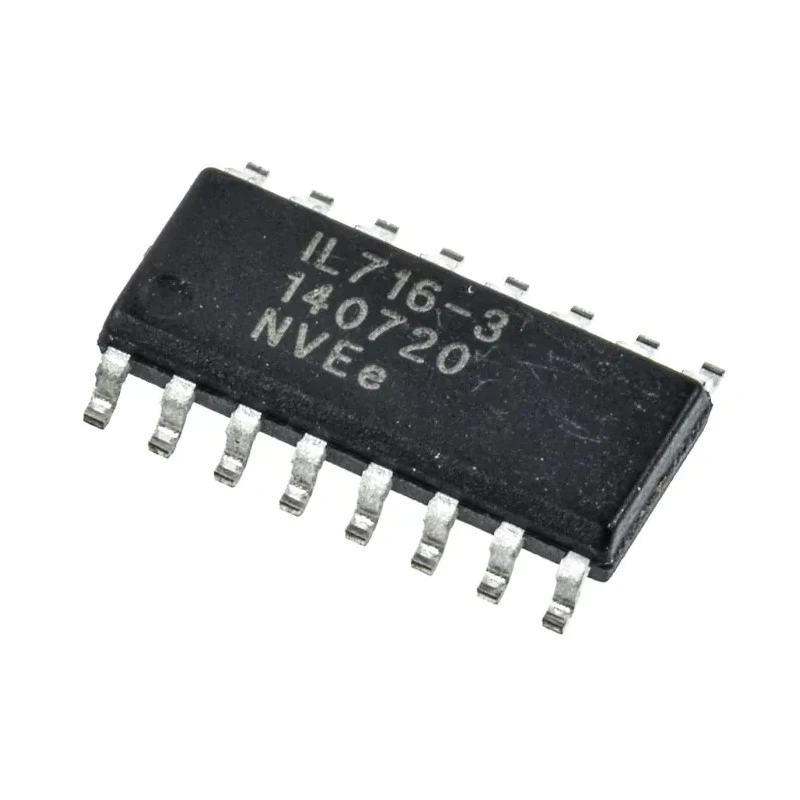

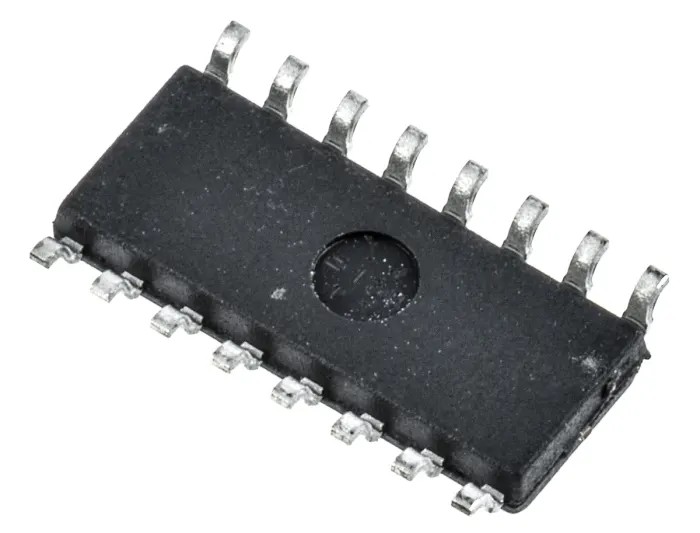

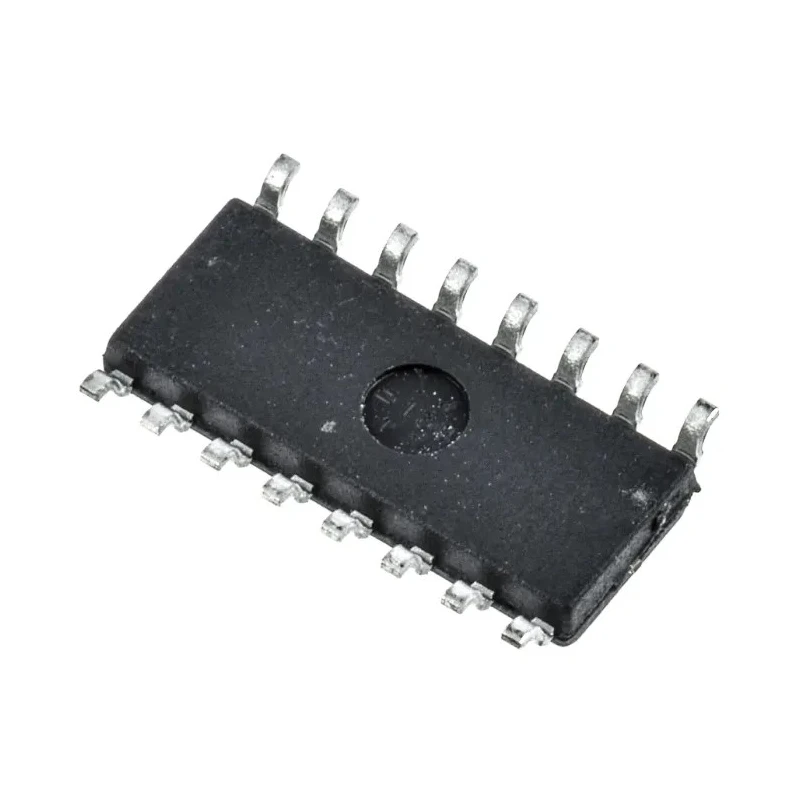

NVE 4-Channel High-Speed Digital Isolator 110 Mbps, 2.5 kVrms, 3V - 5.5V, 16-Pin, Surface Mount IL716-3E
Specifications
| Country of Origin | India |
|---|---|
| Brand | NVE |
| Length | 10mm |
| Model | IL716-3E |
| Depth | 6.2mm |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 6mA |
| Number Of Channels | 4 |
| Rise Time | 4ns |
| Power Dissipation | 800mW |
| Supply Voltage | 3, 5.5V |
| Maximum Forward Voltage | 7V |
| Number of Pins | 16 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 10ns |
Key Features
- High-speed digital isolation with a maximum data rate of 110 Mbps.
- Features robust isolation voltage rated at 2.5 kVrms for circuit protection.
- Supports 4 channels, ideal for complex multi-signal interfaces.
- Wide supply voltage range from 3V to 5.5V enhances compatibility.
- 16-pin surface mount design suitable for automated PCB assembly.
- Low power dissipation of 800mW for efficient operation.
- Rapid propagation delay time of 10 ns ensures minimal latency.
- Operates reliably between -40°C and 125°C for industrial environments.
Product Description
The NVE IL716-3E 4-Channel High-Speed Digital Isolator is engineered to provide advanced digital signal isolation for electronic systems requiring fast, secure data transfer between circuits. Its robust design supports up to four isolated channels operating at up to 110 Mbps, making it ideal for use in industrial automation, instrumentation, and communication equipment.
This device offers an isolation voltage of 2.5 kVrms, ensuring reliable protection against voltage surges and electrical noise. The supply voltage is versatile, accommodating both 3V and 5.5V power requirements to match a broad range of application needs. With its 16-pin surface mount packaging, integration into high-density PCB layouts is efficient and straightforward.
Key features include a low power dissipation of 800 milliwatts and a rapid propagation delay time of just 10 nanoseconds, which minimizes signal latency and supports high-frequency operation. Additional characteristics, such as a rise time of 4 nanoseconds and a maximum forward voltage of 7V, further enhance signal integrity. The device's maximum input current reaches 6 mA, aligning with safe operational limits for modern electronic systems.
The IL716-3E is compliant with several internationally recognized standards and approvals, including UL 1577, IEC 60747-5-5, JEDEC J-STD-020C, ENV50204, and VDE 0884, underscoring its suitability for regulated environments and global use. Its operational temperature range runs from -40°C to 125°C, ensuring consistent performance in both extreme cold and heat.
This digital isolator is commonly applied across industrial, laboratory, and instrumentation sectors where data integrity, high-speed communications, and robust isolation are paramount. The series is especially valued in applications such as PLCs, industrial Ethernet, and other multi-channel signal systems requiring advanced protection.
For more advanced electronic components in Digital Isolator ICs or reliable NVE solutions, continue exploring the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NVE IL716-3E supports a maximum data rate of 110 Mbps, enabling high-speed digital isolation for various applications.
This model has an isolation voltage rated at 2.5 kVrms, providing robust protection against voltage surges and electrical noise.
It operates within a supply voltage range of 3V to 5.5V, enhancing compatibility with different electronic systems.
The device operates reliably between -40°C and 125°C, making it suitable for industrial environments with extreme temperatures.
This digital isolator supports 4 channels, allowing for complex multi-signal interfaces in various applications.
The propagation delay time is 10 nanoseconds, ensuring minimal latency for high-frequency operations.
The dimensions of this model are 10mm in length, 6.2mm in depth, and 1.8mm in width, suitable for surface mount applications.
The maximum input current is 6 mA, aligning with safe operational limits for modern electronic systems.
It features a surface mount design, which is ideal for automated PCB assembly and high-density layouts.
This device complies with several standards including UL 1577, IEC 60747-5-5, and VDE 0884, ensuring its suitability for regulated environments.
The IL716-3E has a low power dissipation of 800 milliwatts, contributing to efficient operation in electronic circuits.
The rise time is 4 nanoseconds, which helps maintain signal integrity during high-speed operation.
