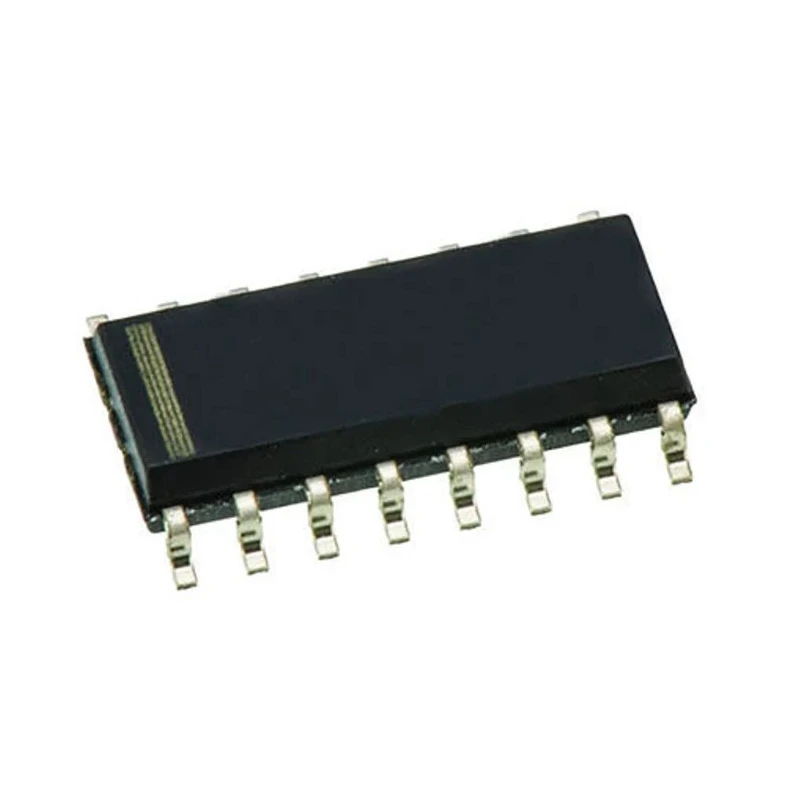

NVE 4-Channel Digital Isolator 110 Mbps, 2500 Vrms, SOIC, 5.5V, UL/IEC Approved IL717E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 10.5mm |
| Model | IL717E |
| Depth | 2.5mm |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10μA |
| Number Of Channels | 4 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | UL, IEC |
| Maximum Forward Voltage | 7V |
| Number of Pins | 16 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | SOIC |
Key Features
- Offers four isolated digital channels in a single IC package.
- Supports maximum data transfer rates up to 110 Mbps.
- Ensures high isolation voltage of 2500 Vrms for safety and signal integrity.
- Operates reliably with a supply voltage of 5.5V and up to 125°C temperature.
- Surface mount SOIC form factor for easy PCB integration.
- Fast propagation delay of 18 ns and rise time of 4 ns for responsive switching.
- UL and IEC approved for industrial and laboratory use.
- Suitable for high-speed signal isolation and robust circuit protection in electronics and automation.
Product Description
NVE IL717E 4-Channel Digital Isolator is a high-performance electronic component designed to provide secure isolation and rapid data transmission in demanding industrial and laboratory environments. Featuring a maximum data rate of 110 Mbps, this device offers four digital isolation channels, ideal for ensuring signal integrity across critical sections of advanced electronic systems.
Engineered in a 16-pin SOIC surface mount package, the IL717E isolates signals up to 2500 Vrms, safeguarding against electrical surges and maintaining robust system protection. The supply voltage of 5.5V makes it compatible with standard digital logic levels, and the operating range from -40°C to 125°C allows reliable performance even in harsh thermal conditions.
With a fast propagation delay time of only 18 ns and a rise time of 4 ns, the IL717E is optimised for responsive digital communication and low-latency control applications. It draws a maximum input current of just 10 µA, enabling efficient power usage in compact designs. The SOIC package with 16 pins is suitable for automated assembly, streamlining production processes in electronics manufacturing.
Standards and approvals include UL and IEC compliance, ensuring suitability for industrial, laboratory, and commercial installations. The high-speed, high-temperature architecture of the NVE IL715, IL716, and IL717 series digital isolators makes them especially effective in sensitive applications requiring precise isolation and fast data transmission.
This digital isolator is widely used in circuit protection, PLCs, instrumentation, data acquisition, process control systems, and automated machinery. Its reliable isolation capabilities are invaluable in automotive, medical, and research electronics where signal integrity and safety are paramount.
Explore more components in the Digital Isolator ICs category at EnvMart and discover advanced NVE solutions for your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IL717E supports a maximum data transfer rate of 110 Mbps.
It operates reliably with a supply voltage of 5.5V.
The dimensions of this unit are 10.5 mm in length, 7.62 mm in width, and 2.5 mm in depth.
This digital isolator operates within a temperature range of -40°C to 125°C.
It features four isolated digital channels in a single IC package.
The rise time for this model is 4 ns, allowing for responsive switching.
The maximum input current drawn by this unit is 10 µA.
It is designed in a 16-pin SOIC surface mount package, suitable for easy PCB integration.
This digital isolator is UL and IEC approved, making it suitable for industrial and laboratory use.
The propagation delay time for this model is 18 ns, optimizing it for low-latency applications.
It is widely used in circuit protection, PLCs, instrumentation, data acquisition, process control systems, and automated machinery.
