NVE Digital Isolator 100 Mbps, 2.5 kVrms, 3V/5.5V, 8-Pin, Surface Mount IL610-3E

The NVE IL610-3E is a high-performance digital isolator designed to provide galvanic isolation for digital data signals, accommodating applications that require high data transmission rates and robust safety barriers. Engineered using IsoLoop® spintronic Giant Magnetoresistive (GMR) technology, it ensures reliable data integrity and enhanced package density compared to traditional optocouplers.

This device supports a maximum data rate of 100 Mbps, making it highly suitable for modern industrial, automation, and instrumentation systems where fast and noise-immune digital communication is essential. The digital isolator incorporates a single channel for signal isolation and maintains full digital integrity thanks to a fast propagation delay time of only 15 ns and a signal rise time of 4 ns, ensuring time-sensitive data streams are preserved without significant latency.

The IL610-3E can operate from supply voltages as low as 3V and up to 5.5V, providing design versatility for a range of logic families and system voltages. Its 2.5 kVrms isolation voltage rating delivers robust protection, helping to prevent transient voltages or ground loop disturbances from impairing system operation or damaging sensitive downstream electronics. The device's maximum input current is capped at 75 mA, making it well-suited for energy-conscious and densely integrated PCB layouts.

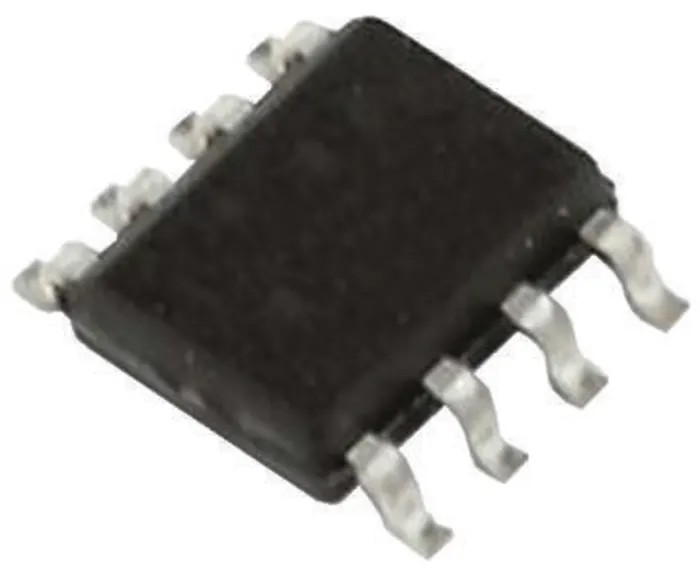

Packaged in a standard surface-mount 8-pin SOIC format, the IL610-3E fits compactly on modern PCBs and supports automated assembly processes, enhancing production efficiency. It has clearly defined dimensions of 10 mm length, 6.2 mm depth, and 1.8 mm width, enabling straightforward integration in space-constrained designs.

Engineered for reliable operation from -40°C up to 85°C, this isolator is ready for use in a wide range of industrial, automotive, and commercial environments. The device is tested for compliance with UL1577 and IEC61010 safety standards, further reinforcing its suitability for equipment requiring stringent isolation and safety demands.

Typical applications include industrial control systems, automation interfaces, distributed sensing and data acquisition, and communications hardware where electrical isolation and fast digital signal throughput are both required. The IL610-3E's passive input design and CMOS-compatible output simplify integration in both legacy and state-of-the-art circuits, making it a universal solution for reliable and fast digital isolation.
