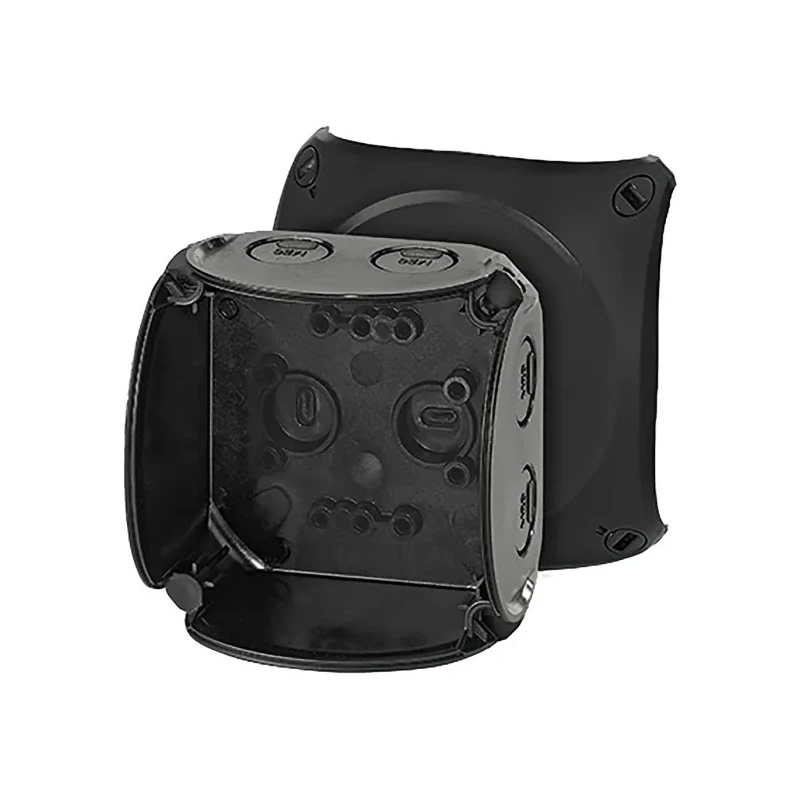

HENSEL Black Polycarbonate Junction Box IP66 IP67 93x93x93 mm KF0200B
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HENSEL |
| Material | Polycarbonate |
| Colour | Black |
| Height | 93mm |
| Length | 93mm |
| Model | KF0200B |
| IP Rating | IP66, IP67 |
| Number Of Ways | 7 |
| Width | 93mm |
| Cable entry | Cable entries Via knockouts |
| Series | KF 0200 B |
| Standards/Approvals | IEC 60 670-22 |
| HENSEL DK Series Black Thermoplastic Junction Box, 88 x 88 x 53mmBrand | HENSEL |
Key Features
- Constructed of durable black polycarbonate material.
- Provides protection against dust, water jets, and immersion.
- Suitable for outdoor and offshore electrical installations.
- Features cable entries via multi-level knockouts for various cable glands.
- Lid secured quickly with captive quarter-turn screws for ease of maintenance.
- Terminals positioned high with 2 clamping units per pole to maximize wiring space.
- Resistant to UV radiation, saltwater, temperature variations, and mechanical impacts.
- Flame retardant and self-extinguishing for enhanced safety.
Product Description
HENSEL KF0200B black polycarbonate junction box, measuring 93 mm in length, width, and height, is designed for robust electrical enclosure applications requiring IP66 and IP67 ingress protection ratings. It is ideal for industrial, commercial, offshore, and outdoor installations where resistance to environmental factors such as water, dust, UV radiation, and saltwater is essential.
The enclosure's polycarbonate construction ensures durability and flame retardancy. The box features multi-level cable knockouts allowing flexible cable entry options for different gland sizes. The lid is secured using captive screws with quarter-turn quick-release for fast access and secure sealing.
Internally, all terminals have two clamping units per pole, positioned to allow ample space for wiring and connection configurations. The product also includes external brackets for mounting. It complies with IEC 60670-22 standards and provides IK09 impact protection, ensuring mechanical robustness.
This junction box is halogen and silicone free, enhancing environmental safety and electrical performance. Its black RAL 9011 color provides a professional finish. Note that terminals and terminal supports are sold separately and must be selected according to the application’s current ratings and cable sizes.
Durable black polycarbonate construction for longevity and safety. Ingress protection ratings IP66 and IP67 suitable for harsh environments. Multi-level knockouts enable versatile cable entry options. Quick-release captive screws secure the lid for easy maintenance.
Two clamping units per pole provide secure and reliable connections. UV and saltwater resistant, fit for offshore applications. IEC 60670-22 certified for electrical enclosure standards compliance. IK09 mechanical impact resistance protects against physical damage.
Halogen and silicone free, flame retardant material improves safety.
HENSEL’s KF0200B junction box supports a variety of terminal options to match cable sizes from 0.5 mm² up to 50 mm² with current ratings up to 150 A. This product is suitable for electrical, industrial automation, construction, and offshore projects requiring reliable, safe enclosures.
Explore more Junction Box solutions in the Electronics & Electricals category at EnvMart for professional and industrial use.
