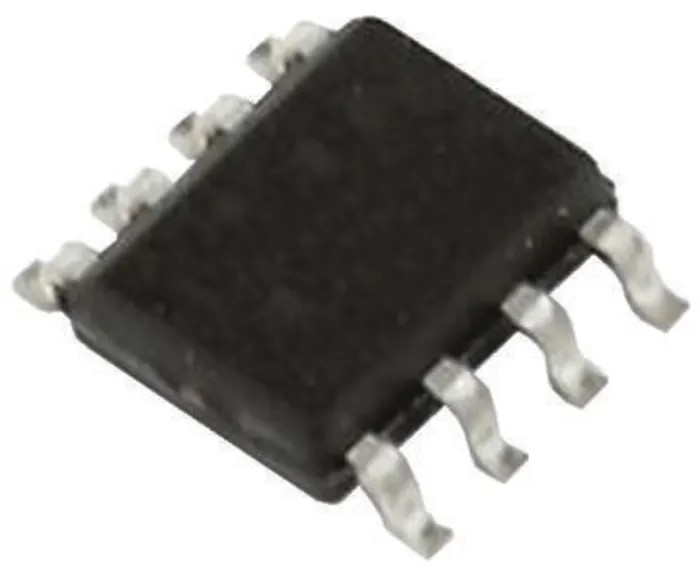

NVE 2-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation Voltage, 5.5V Supply, 8-Pin SOIC IL712T-3E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 5mm |
| Model | IL712T-3E |
| Depth | 6.2mm |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 3mA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | UL, IEC |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | SOIC |
Key Features
- Supports two independent isolation channels for secure digital communication.
- Operates with a supply voltage of 5.5V for compatibility with various systems.
- Features a maximum data rate of 110 Mbps ensuring fast signal transmission.
- Provides high isolation voltage of 2.5 kVrms to protect against high voltages and noise.
- Compact SOIC 8-pin surface mount package with dimensions 5mm x 1.75mm x 6.2mm.
- Low propagation delay time of 18 nanoseconds for efficient signal processing.
- Maximum operating temperature up to 125°C suitable for demanding environments.
- Compliance with UL and IEC standards for safety and reliability.
Product Description
NVE IL712T-3E 2-Channel Digital Isolator is designed for high-speed and high-voltage digital isolation applications with a data rate of 110 Mbps and isolation voltage rating of 2.5 kVrms. Supplied in an 8-pin SOIC surface mount package, it operates at 5.5V supply voltage and supports two isolation channels. The device offers a compact form factor with dimensions 5 mm length, 1.75 mm width, and 6.2 mm depth, making it suitable for dense electronic assemblies.
This isolator ensures reliable digital communication while protecting against high voltages and electrical noise, suited for industrial automation, automotive systems, and demanding environments where temperature can reach up to 125°C. Its low propagation delay of 18 ns and fast rise time of 4 ns enable efficient signal isolation and timing performance.
IL712T-3E meets UL 1577 and IEC standards ensuring safety and compliance for industrial electronics. The device is surface mounted, facilitating integration on printed circuit boards and automation equipment. Typical applications include sensor isolation, data acquisition systems, signal isolators in power electronics, and other high-isolation systems.
Two independent digital isolation channels ensure secure and reliable data transmission. High isolation voltage of 2.5 kVrms withstands harsh electrical conditions. Fast data rate of 110 Mbps allows for rapid communication between isolated circuits.
Compact 8-pin SOIC package facilitates PCB assembly and space saving. Wide operating temperature range from -40°C to 125°C supports industrial use. Low input current of 3 mA reduces power consumption in system design. Propagation delay of 18 ns minimizes signal timing loss.
Rise time of 4 ns supports high-speed digital signals. Compliance with UL and IEC standards guarantees quality and safety.
This product is ideal for electronic component applications requiring signal isolation such as industrial automation, medical devices, instrumentation, and automotive electronics. EnvMart categorizes it under Electronics & Electricals > Electronics Components > Digital Isolator ICs. Browse EnvMart for other NVE digital isolator models and related optoelectronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 110 Mbps, allowing for fast signal transmission between isolated circuits.
It has a high isolation voltage rating of 2.5 kVrms, which protects against high voltages and electrical noise.
This unit has dimensions of 5 mm in length, 1.75 mm in width, and 6.2 mm in depth, making it suitable for dense electronic assemblies.
It operates with a supply voltage of 5.5V, which is compatible with various systems.
The maximum operating temperature for the IL712T-3E is 125°C, suitable for demanding environments.
This digital isolator supports two independent isolation channels for secure digital communication.
The rise time for this model is 4 ns, which supports high-speed digital signals.
It features a low propagation delay time of 18 ns, ensuring efficient signal processing.
This model complies with UL 1577 and IEC standards, ensuring safety and reliability in industrial electronics.
It is supplied in an 8-pin SOIC surface mount package, facilitating integration on printed circuit boards.
The minimum operating temperature for the IL712T-3E is -40°C, making it suitable for various industrial applications.
The maximum input current is 3 mA, which helps reduce power consumption in system design.
