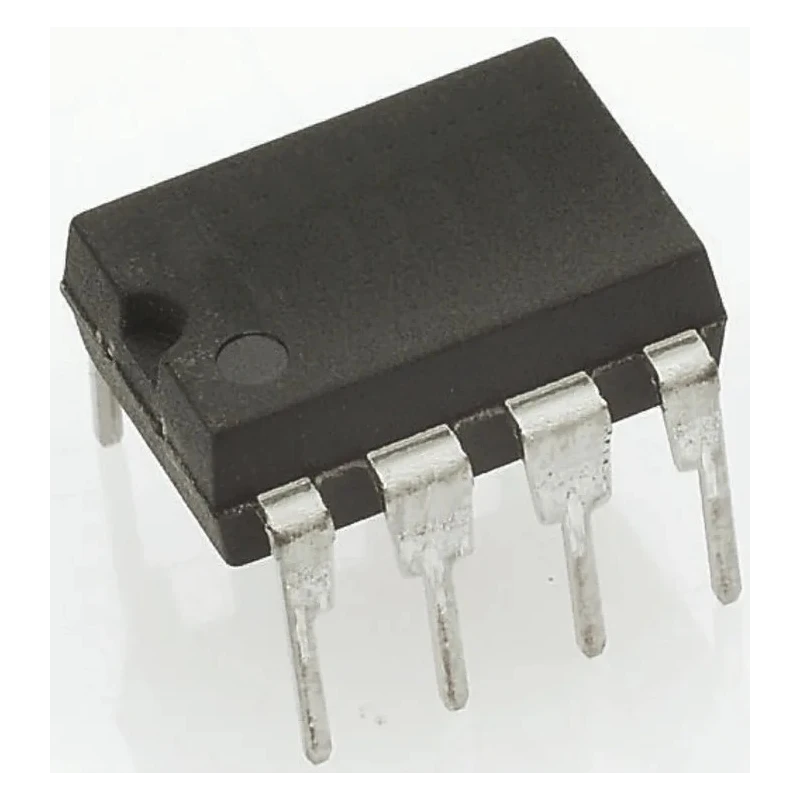

NVE 2-Channel Digital Isolator 110 Mbps 2.5 kVrms 5.5V 8-Pin PDIP IL712-2E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 10.2mm |
| Model | IL712-2E |
| Depth | 6.6mm |
| Width | 3.81mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 3mA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, UL |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | PDIP |
Key Features
- This digital isolator supports two independent channels for signal isolation.
- Operates over a wide temperature range from -40°C to 125°C.
- Features a low propagation delay time of 18 nanoseconds for fast signal processing.
- Designed for through-hole mounting with a compact 8-pin PDIP package.
- Supports maximum forward voltage of 7V and maximum input current of 3mA.
- Ensures reliable isolation voltage of 2.5 kVrms for industrial safety standards.
- Complies with IEC and UL standards for quality and safety assurance.
Product Description
The NVE IL712-2E 2-Channel Digital Isolator is designed to provide high-speed and reliable digital signal isolation in demanding industrial, electronic, and laboratory applications. With a maximum data rate of 110 Mbps, it effectively isolates two channels while maintaining signal integrity, ensuring noise immunity and protecting sensitive electronics.
Its 8-pin PDIP package supports through-hole mounting and offers ease of integration into existing PCB layouts. The device operates with a supply voltage of 5.5V and withstands isolation voltage up to 2.5 kVrms, making it highly suitable for industrial control systems, power supply monitoring, and safe signal transmission between different circuit domains.
With a propagation delay of only 18 nanoseconds and rise time of 4 nanoseconds, the IL712-2E enables fast processing of digital signals without compromising speed. The product complies with IEC and UL standards, guaranteeing adherence to rigorous quality and safety norms for industrial electronics.
Operating reliably across an extended temperature range from -40°C to 125°C, this digital isolator suits harsh environments typically encountered in manufacturing, automation, measurement, and control systems. Its compact size (10.2 mm length, 6.6 mm depth, and 3.81 mm width) facilitates space-saving PCB designs.
This digital isolator supports two independent isolated channels for signal transmission. High maximum data rate of 110 Mbps ensures efficient communication. Maximum isolation voltage of 2.5 kVrms meets industrial safety standards.
Fast propagation delay time of 18 ns optimizes signal responsiveness. Compact 8-pin PDIP package for through-hole PCB mounting. Wide operating temperature range from -40°C to 125°C suits harsh environments. Complies with IEC and UL certification standards.
Low maximum input current of 3mA and maximum forward voltage of 7V for power efficiency.
The IL712-2E digital isolator is a reliable solution for industrial automation systems, laboratory instruments, power electronics, and electronic component isolation requiring robust, high-speed digital channel isolation. For more suitable digital isolators and similar electronic components, explore our Electronics Components category at EnvMart.
Explore more products in our Digital Isolator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IL712-2E digital isolator supports a maximum data rate of 110 Mbps, ensuring efficient communication between isolated channels.
It has a reliable isolation voltage rating of 2.5 kVrms, which meets industrial safety standards.
This model operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
The propagation delay time for this digital isolator is 18 nanoseconds, which optimizes signal responsiveness.
It is designed for through-hole mounting, which facilitates integration into existing PCB layouts.
The dimensions of this model are 10.2 mm in length, 6.6 mm in depth, and 3.81 mm in width.
The maximum input current for this digital isolator is 3mA, ensuring power efficiency during operation.
This digital isolator operates with a supply voltage of 5.5V.
It complies with IEC and UL standards, ensuring adherence to rigorous quality and safety norms for industrial electronics.
The rise time for this model is 4 nanoseconds, allowing for fast signal processing.
This digital isolator supports two independent channels for signal isolation.
The maximum forward voltage for this model is 7V, which is important for its power efficiency.
